TAPKO UIMip-Secure Betriebs-/Montageanweisung

Product description
The KNX IP (Secure) Interface UIMip-Sec provides an IP connection to KNX TP.
It is suitable for connection of KNX IP (Secure) devices, a PC with ETS, and
Ethernet networks. KNXnet/IP (Secure) Tunneling is supported. Secure
Tunneling, Secure Commissioning, and IP Backbone Security can be activated.
For KNX devices, UIMip-Sec provides commissioning, configuring, visualization,
protocolling and diagnostic operation. Operational states, malfunction and
faulty communication are indicated by LEDs. With the Function button UIMip-
Sec can be reset to default settings. Long messages with up to 240 bytes APDU
are supported. For IP (Secure) Tunneling, four (password-protected) Tunneling
channels are available.
UIMip-Sec is shown in the network. A disengageable web front-end can be
accessed to read out device settings and remotely activate functions. Also, the
integrated bootloader function enables remote firmware updates via
IP/Ethernet.
UIMip-Sec is suitable for 35 mm DIN rails and installation in distribution boards.
Supplied by the KNX bus line, it does not require an external power supply.
KNX IP devices can be connected directly and via Ethernet.
Requirements of Directives EMC, RoHS and LVD are met. Standards for
residential, commercial, and industrial environments are fulfilled. The full text of
the EU declaration of conformity is available at the following internet address:
www.tapko.de/ce
Technical specifications
Power input
Power supply:
Current consumption:
Housing
Dimensions (HxWxD):
Mounting (IEC60715):
Width in space units:
KNX bus connection:
IP connector:
Weight:
Environmental conditions
Operating temperature:
Storage temperature:
Ambient humidity:
Mounting, commissioning and safety notes
• After connection to the KNX bus system, the device works with its
default settings as intended
Warning: Do not connect to 230 V. The device is supplied by the KNX
•
bus and does not require any additional external power supply
• The device may only be installed and put into operation by a qualified
electrician or authorized person
• For planning and construction of electric installations the appropriate
specifications, guidelines and regulations in force of the respective
country have to be complied
• For mounting use an appropriate equipment according to IEC60715
• Installation on a 35 mm DIN rail (TH35)
• Connect the KNX bus line as for common KNX bus connections with a
KNX bus cable, to be stripped and plugged into a KNX TP connector
• Do not damage electrical insulations during connecting
• Installation only in dry locations
• Accessibility of the device for operation and visual inspection must be
provided
• For configuring, use the ETS
Release version/date: R1.2 / June 2020
© 2001-2020 TAPKO Technologies GmbH
Im Gewerbepark A15, 93059 Regensburg, Germany
Details, modifications and corrections may be subject to change without notice. TAPKO gives no warranty for the accuracy of the document. All rights reserved.
Operating Instructions
21...30 V DC SELV
< 20 mA
90 x 36 x 71 mm
35 mm top-hat rail (TH35)
2 modules at 18 mm
KNX connector (red/black)
Ethernet (RJ45, female)
68 g
-5...45 °C
-20...60 °C
5...93 % (non-condensing)

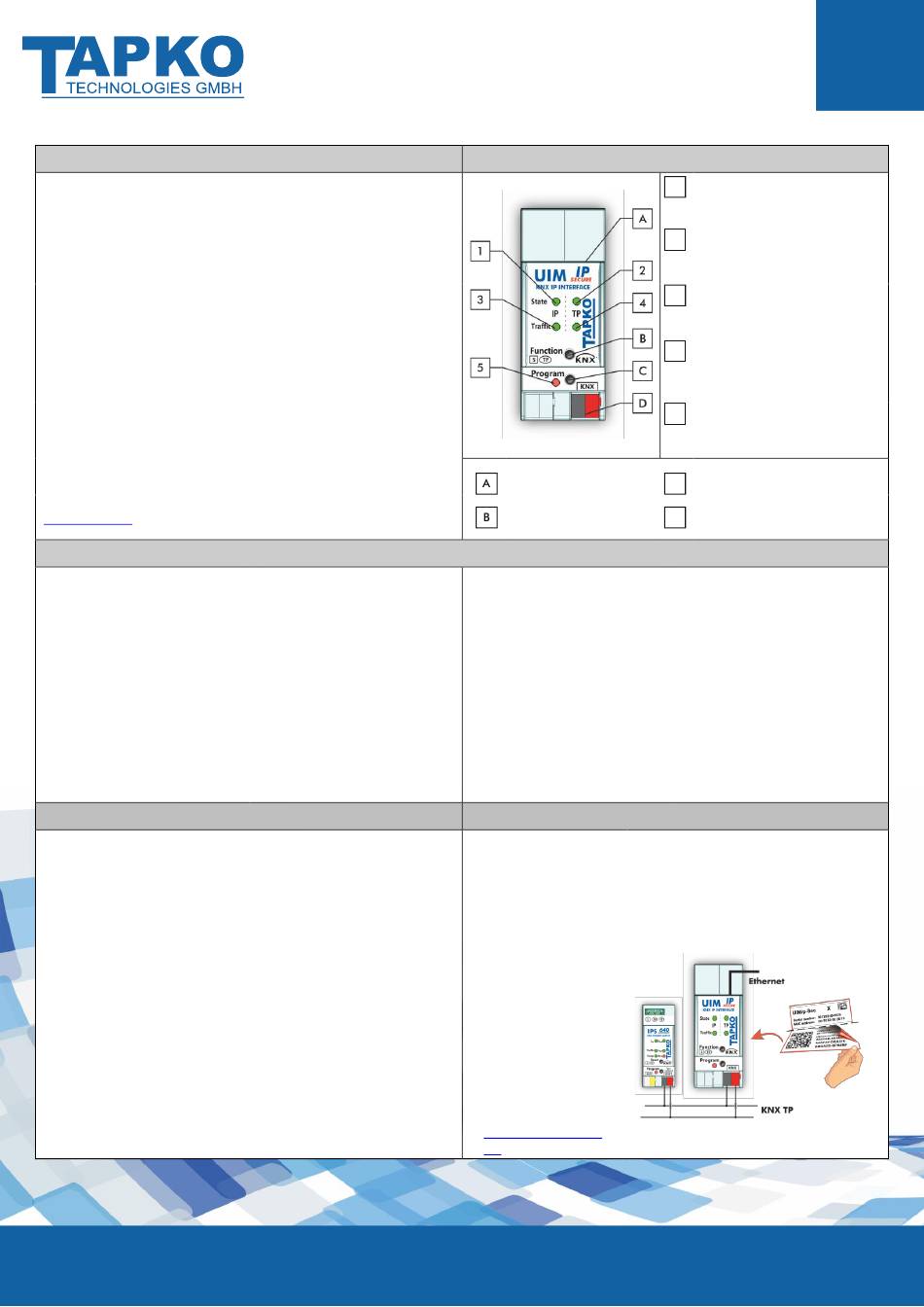

Connectors, buttons and LEDs description
Ethernet connector
Function button
Electrical safety
Pollution degree (IEC60664):
Protection type (IEC60529):
Protection class (IEC61140):
Overvoltage category (IEC60664):
Approbation (ISO/IEC14543-3):
CE Marking
EU Directives:
Standards:
Installation and maintenance
• The housing must not • Device Certificate and Serial Number are
be opened
• Protect the device from
moisture, dirt and
damage
• The device needs no
maintenance
• If necessary, the device
can be cleaned with a
dry cloth
• In the case of damage
(at storage, transport)
no repairs may be
carried out by
unauthorized persons
• Configuration details
and ETS database:
www.tapko.de/uimip-
sec
State IP
1
green: Main line OK
Bus state KNX TP
2
green: Subline OK
Telegram traffic IP
3
green (blinking):
Telegram traffic
Telegram traffic KNX TP
4
green (blinking):
Telegram traffic
red (blinking):
Transmission error
Programming LED
5
red: Programming Mode active
red (blinking):
No IP connection
C
Programming button
D
KNX TP connector
2
IP20
III
II
KNX-certified
LVD (2014/35/EU)
EMC (2014/30/EU)
RoHS (2011/65/EU)
EN50581
EN60950-1
EN61000-6-2/-3
EN IEC 63044-5-1/-2/-3
IEC60950-1
placed on a label sidely adhered. For
archiving, the certificate can be cut off
and removed. Afterwards, the cut-off part
can only be identified by comparison of
the Serial Number.
UIMip
SECURE
