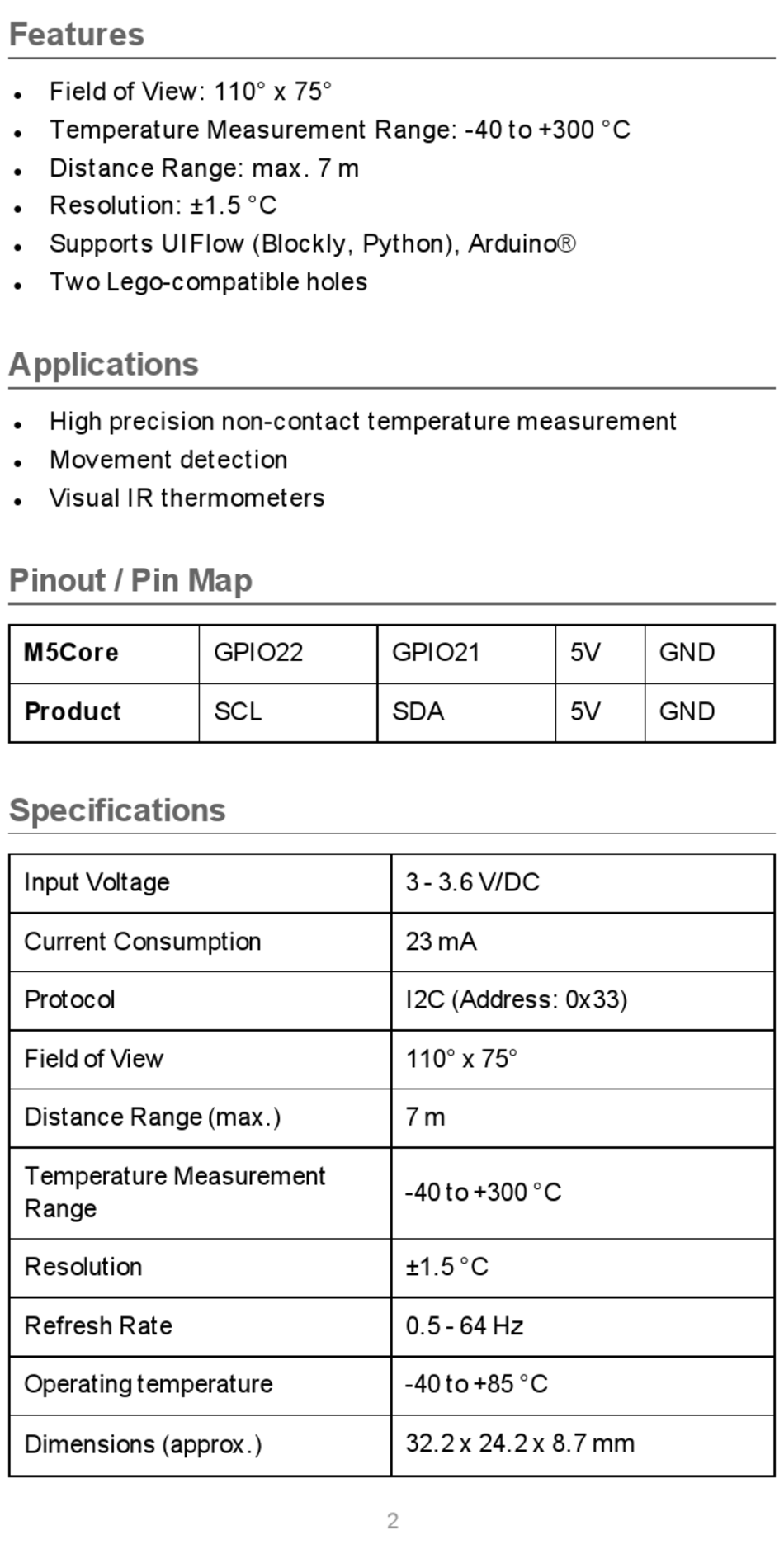

Features
Field of View: 110° x 75°
l
Temperature Measurement Range: -40 to +300 °C
l
Distance Range: max. 7 m
l
Resolution: ±1.5 °C
l
Supports UIFlow (Blockly, Python), Arduino®
l
Two Lego-compatible holes
l
Applications
High precision non-contact temperature measurement
l
Movement detection
l
Visual IR thermometers
l
Pinout / Pin Map
M5Core
Product
Specifications
Input Voltage
Current Consumption
Protocol
Field of View
Distance Range (max.)
Temperature Measurement
Range
Resolution
Refresh Rate
Operating temperature
Dimensions (approx.)
GPIO22
SCL
GPIO21
SDA
3 - 3.6 V/DC
23 mA
I2C (Address: 0x33)
110° x 75°
7 m
-40 to +300 °C
±1.5 °C
0.5 - 64 Hz
-40 to +85 °C
32.2 x 24.2 x 8.7 mm
2
5V
GND
5V
GND
