Monacor TR-525 Bedienungsanleitung

100-v-audiotransformator

Werbung

D
A
CH
100-V-Audiotransformator
1 Verwendungsmöglichkeiten
Dieser Audiotransformator ist speziell für
den Einsatz in ELA-Anlagen konzipiert,
die mit 100-V-Technik arbeiten. Über ihn
lässt sich ein 4-Ω-Lautsprecher an die
100-V-Leitung der Anlage anschließen.
2 Wichtige Hinweise für den
sicheren Gebrauch
Der Transformator entspricht der Richt-
linie für elektromagnetische Verträglich-
keit 89/336/EWG und der Niederspan-
nungsrichtlinie 73/23/EWG.
Der Transformator ist nur zur Ver-
wendung im Innenbereich geeignet.
Schützen Sie ihn vor Feuchtigkeit und
Hitze (zulässiger Einsatztemperatur-
bereich 0 – 40 °C).
Verwenden Sie für die Reinigung nur
GB
100 V Audio Transformer
1 Applications
This audio transformer is especially de-
signed for applications in PA systems
operating with 100 V technique. Via this
transformer a 4 Ω speaker can be con-
nected to the 100 V line of the system.
2 Important Safety Notes
The transformer corresponds to the di-
rective for electromagnetic compatibility
89/336/EEC and the low voltage direc-
tive 73/23/EEC.
The transformer is only suitable for
indoor use. Protect it against humidity
and heat (admissible ambient temper-
ature range 0 – 40 °C).
For cleaning only use a dry, soft cloth,
by no means chemicals or water.
No guarantee claims for the transform-
TR-525
ein trockenes, weiches Tuch, auf kei-
nen Fall Chemikalien oder Wasser.
Wird der Transformator zweckentfrem-
det, falsch angeschlossen oder über-
lastet, kann keine Haftung für daraus
resultierende Sach- oder Personen-
schäden und keine Garantie für den
Transformator übernommen werden.
Soll der Transformator endgültig aus
dem Betrieb genommen werden,
übergeben Sie ihn zur umweltgerech-
ten Entsorgung einem örtlichen Recy-
clingbetrieb.
3 Elektrischer Anschluss
B
Warnung: Im Betrieb liegt be-
rührungsgefährliche Spannung bis
100 V an den Anschlussdrähten an.
Der Anschluss darf nur durch
Fachpersonal erfolgen.
Isolieren Sie unbedingt den nicht
benutzten Anschlussdraht.
Achten Sie auf die richtige Leis-
tungsanpassung.
er or liability for any resulting personal
damage or material damage will be ac-
cepted if the transformer is used for
other purposes than originally intend-
ed, if it is not correctly connected or
overloaded.
If the transformer is to be put out of
operation definitively, take it to a recy-
cling plant for a disposal which is not
harmful to the environment.
3 Electrical Connection
B
Warning: During operation there
is a hazard of contact at the con-
nection wires with a voltage up to
100 V.
The connection must only be
made by authorized personnel.
Insulate in any case the connec-
tion wire not used.
Pay attention to the correct power
matching. In case of incorrect
matching, the PA amplifier will be
damaged!
-
4Ω
+
®
Copyright
©
by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved. A-0159.99.01.10.2003
Best.-Nr. 17.1210
Eine
falsche
TR-525
Best.-Nr. 17.1210
100 V Audio Transformer
C
4 Ω
Anpassung führt zur Beschädi-
gung des ELA-Verstärkers!

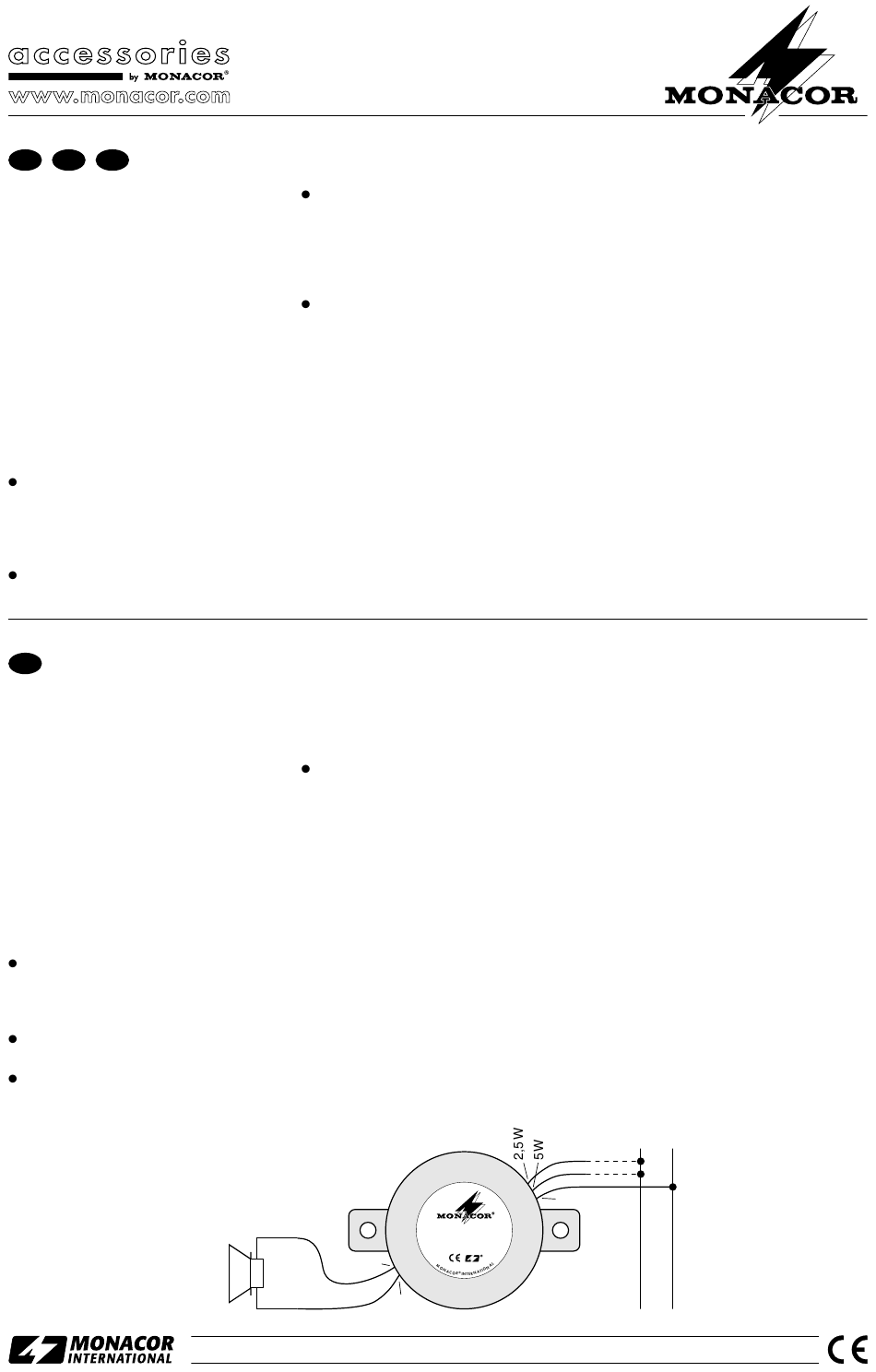

1) Falls die ELA-Anlage eingeschaltet
ist, diese zuerst komplett ausschalten!
2) Den 4-Ω-Lautsprecher mit dem 2-poli-
gen Anschluss „C" (Minuspol) und
„4 Ω" (Pluspol) verbinden. Den Trans-
formator über den 3-poligen Anschluss
mit der 100-V-Leitung der ELA-Anlage
verbinden: Anschluss „C" an den
Minuspol und je nach gewünschter
Lautstärke Anschluss „2,5 W" oder An-
schluss „5 W" an den Pluspol.
4 Technische Daten
Frequenzbereich: . . 80 – 18 000 Hz
Eingang: . . . . . . . . . 100 V; 2,5 W/ 5 W
Ausgang: . . . . . . . . 4 Ω
Abmessungen: . . . . Ø 50 mm x 20 mm
Gewicht: . . . . . . . . . 160 g
Laut Angaben des Herstellers.
Änderungen vorbehalten.
1) In case the PA system is switched on,
first switch it off completely!
2) Connect the 4 Ω speaker to the 2-pole
connection "C" (negative pole) and
"4 Ω" (positive pole). Connect the
transformer via the 3-pole connection
to the 100 V line of the PA system:
Connection "C" to the negative pole
and, according to the desired volume,
connection "2.5 W" or connection
"5 W" to the positive pole.
4 Specifications
Frequency range: . . 80 – 18 000 Hz
Input: . . . . . . . . . . . 100 V; 2.5 W/5 W
Output: . . . . . . . . . . 4 Ω
Dimensions: . . . . . . Ø 50 mm x 20 mm
Weight: . . . . . . . . . . 160 g
According to the manufacturer.
Subject to technical modification.
