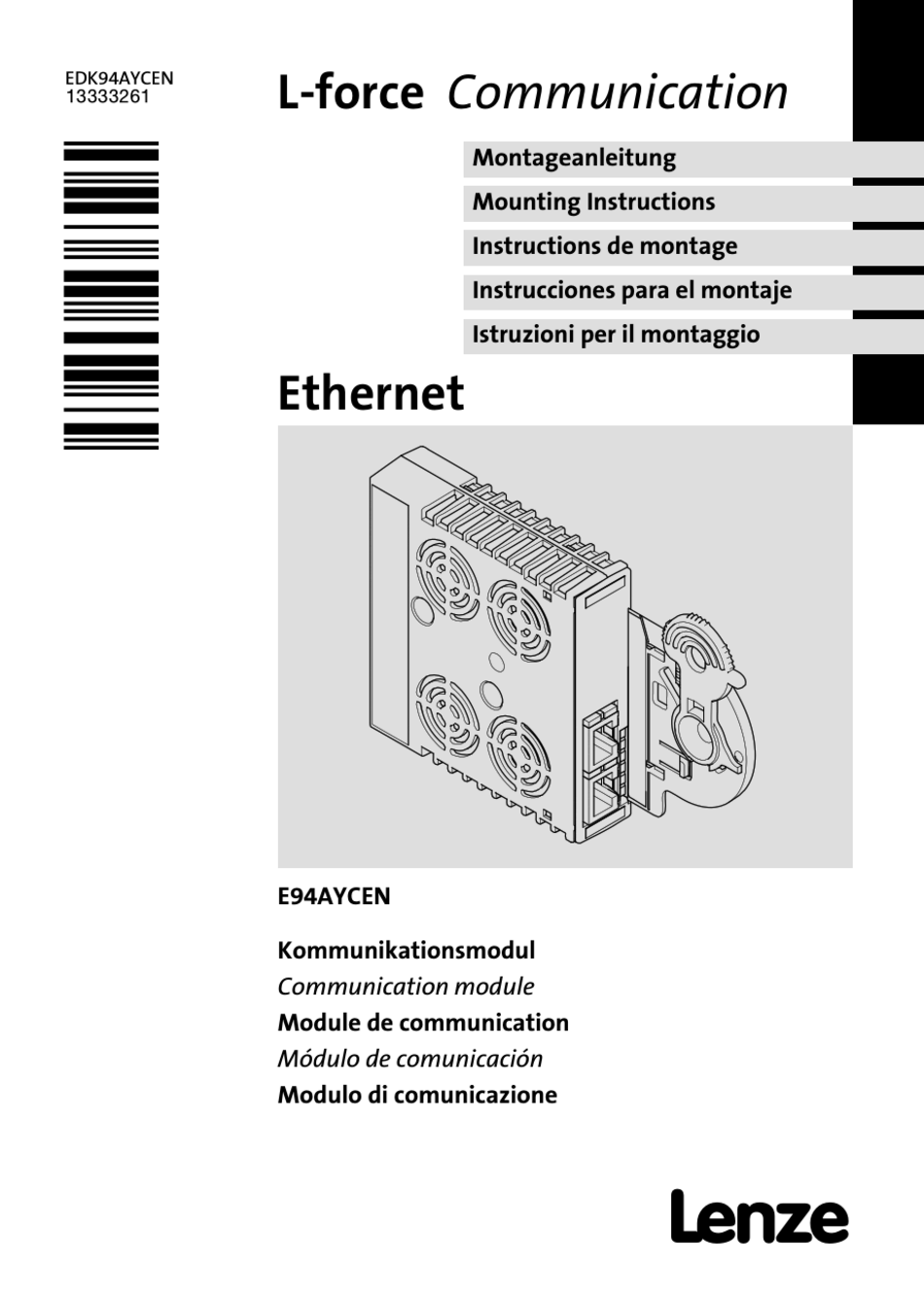

EDK94AYCEN
.BA^
L−force Communication
Ethernet
E94AYCEN
Kommunikationsmodul
Communication module
Module de communication
Módulo de comunicación
Modulo di comunicazione
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
l

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Lenze L-force E94AYCEN

  • Seite 1 EDK94AYCEN L−force Communication .BA^ Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio Ethernet E94AYCEN Kommunikationsmodul Communication module Module de communication Módulo de comunicación Modulo di comunicazione...
  • Seite 2 Lesen Sie zuerst diese Anleitung, bevor Sie mit den Arbeiten beginnen! Beachten Sie die enthaltenen Sicherheitshinweise. Please read these instructions before you start working! Follow the enclosed safety instructions. Veuillez lire attentivement cette documentation avant toute action ! Les consignes de sécurité doivent impérativement être respectées. Lea las instrucciones antes de empezar a trabajar.
  • Seite 3 E94YCEN001A E94AYCET017...
  • Seite 4: Lieferumfang

    0Abb. 0Tab. 0 Lieferumfang Pos. Beschreibung Kommunikationsmodul E94AYCEN (Ethernet) Montageanleitung Anschlüsse Pos. Beschreibung Ethernet−Anschlüsse X215 Ausführung: jeweils RJ45−Buchse nach IEC 60603−7 X216 Statusanzeigen Pos. Farbe Zustand Beschreibung grün Das Kommunikationsmodul ist mit Spannung versorgt. Das Kommunikationsmodul wird vom Grundgerät nicht akzep- tiert (siehe Hinweise in der Anleitung zum Grundgerät).
  • Seite 5: Inhaltsverzeichnis

    Inhalt Über diese Dokumentation ..........Verwendete Konventionen .
  • Seite 6: Über Diese Dokumentation

    Diese Dokumentation enthält ... ƒ Informationen zur mechanischen und elektrischen Installation des Kommunikationsmoduls; ƒ Sicherheitshinweise, die Sie unbedingt beachten müssen; ƒ Angaben über Versionsstände der zu verwendenden Lenze Grundgeräte. Informationen zur Gültigkeit Die Informationen in dieser Dokumentation sind gültig für folgende Geräte: Erweiterungsmodul...
  • Seite 7: Verwendete Konventionen

    Über diese Dokumentation Verwendete Konventionen Verwendete Konventionen Diese Dokumentation verwendet folgende Konventionen zur Unterscheidung verschiede- ner Arten von Information: Informationsart Auszeichnung Beispiele/Hinweise Zahlenschreibweise Dezimaltrennzeichen Punkt Es wird generell der Dezimalpunkt verwendet. Beispiel: 1234.56 Symbole Seitenverweis Verweis auf eine andere Seite mit zu- sätzlichen Informationen Beispiel: 16 = siehe Seite 16...
  • Seite 8: Verwendete Hinweise

    Über diese Dokumentation Verwendete Hinweise Verwendete Hinweise Um auf Gefahren und wichtige Informationen hinzuweisen, werden in dieser Dokumenta- tion folgende Piktogramme und Signalwörter verwendet: Sicherheitshinweise Aufbau der Sicherheitshinweise: Gefahr! (kennzeichnet die Art und die Schwere der Gefahr) Hinweistext (beschreibt die Gefahr und gibt Hinweise, wie sie vermieden werden kann) Piktogramm und Signalwort Bedeutung Gefahr von Personenschäden durch gefährliche elektri-...
  • Seite 9 Über diese Dokumentation Verwendete Hinweise Anwendungshinweise Piktogramm und Signalwort Bedeutung Wichtiger Hinweis für die störungsfreie Funktion Hinweis! Nützlicher Tipp für die einfache Handhabung Tipp! Verweis auf andere Dokumentation EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 10: Sicherheitshinweise

    Sicherheitshinweise Sicherheitshinweise Gefahr! Unsachgemäßer Umgang mit dem Kommunikationsmodul und dem Grundgerät kann schwere Personenschäden und Sachschäden verursachen. Beachten Sie die in der Dokumentation zum Grundgerät enthaltenen Sicherheitshinweise und Restgefahren. Stop! Elektrostatische Entladung Durch elektrostatische Entladung können elektronische Bauteile innerhalb des Kommunikationsmoduls beschädigt oder zerstört werden.
  • Seite 11: Produktbeschreibung

    Produktbeschreibung Funktion Produktbeschreibung Funktion Das Kommunikationsmodul koppelt Lenze Servo Drives 9400 an das Kommunikationssys- tem Ethernet. Bestimmungsgemäße Verwendung Das Kommunikationsmodul ... ƒ ist eine Zubehör−Baugruppe, die mit folgenden Lenze Grundgeräten eingesetzt werden kann: Produktreihe Typenbezeichnung ab Hardwarestand ab Softwarestand Servo Drives 9400 E94AxxExxxx 01.50...
  • Seite 12: Identifikation

    Produktbeschreibung Identifikation Identifikation Type HW Ver. MAC ID E94YCEN008  ‚ Typenschlüssel Produktreihe Gerätegeneration Modulkennung: Erweiterungsmodul Modultyp: Kommunikationsmodul Ethernet Hardwarestand EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 13: Mechanische Installation

    Mechanische Installation Mechanische Installation Hinweis! Ein Servo Drive 9400 darf nur mit einem Ethernet−Modul bestückt werden, entweder in Modulschacht MXI1 oder MXI2. Montage E94YCXX001G EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 14 Mechanische Installation Demontage E94AYCXX001H EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 15: Elektrische Installation

    Elektrische Installation EMV−gerechte Verdrahtung Elektrische Installation EMV−gerechte Verdrahtung In typischen Anlagen ist die standardmäßige Schirmung der Ethernet−Kabel ausreichend. In sehr stark gestörten Umgebungen kann eine Verbesserung der EMV−Festigkeit durch eine zusätzliche Erdung des Kabelschirms ermöglicht werden. Beachten Sie dazu folgende Hinweise: 1.
  • Seite 16: Ethernet−Anschluss

    Ethernet−Patchkabel (siehe "Spezifikation des Ethernet−Kabels" (^ 17)). Hinweis! Entkoppeln Sie Ihr Ethernet−Hausnetzwerk vom Betriebsnetzwerk für ƒ Ethernet−fähige Lenze Geräte, um Störungen der Ethernet−Kommunikation zu vermeiden. Weiterführende Informationen dazu finden Sie im Handbuch "Ethernet in der industriellen Anwendung". Um Beschädigungen der RJ45−Buchse zu vermeiden, den Stecker des ƒ...
  • Seite 17 Elektrische Installation Ethernet−Anschluss Spezifikation des Ethernet−Kabels Hinweis! Verwenden Sie ausschließlich Kabel, die den aufgeführten Spezifikationen entsprechen. Spezifikation des Ethernet−Kabels Ethernet−Standard Standard Ethernet (nach IEEE 802.3), 100Base−TX (Fast Ethernet) Kabeltyp S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 oder EN 50173), CAT 5e Dämpfung 23.2 dB (bei 100 MHz und je 100 m) Nebensprechdämpfung...
  • Seite 18 Elektrische Installation Ethernet−Anschluss Farbcodierung des Ethernet−Kabels Hinweis! Die Verdrahtung und der Farbcode sind standardisiert in EIA/TIA 568A/568B. Der Einsatz 4−poliger Ethernet−Kabel nach Industrienorm ist zulässig. Der Kabeltyp verbindet nur die belegten Pins 1, 2, 3 und 6 miteinander. E94YCEI004A Abb. 1 Ethernet−Stecker nach EIA/TIA 568A/568B Paar Signal...
  • Seite 19: Spannungsversorgung

    Elektrische Installation Spannungsversorgung Spannungsversorgung Interne Versorgung Das Kommunikationsmodul wird ausschließlich intern durch das Grundgerät mit Span- nung versorgt. Hinweis! Bei Ausfall des Grundgerätes ist bei einer Linienverdrahtung der Datentransfer zwischen den Ethernet−Teilnehmern an der Schnittstelle X215 und den Ethernet−Teilnehmern an der Schnittstelle X216 unterbrochen. EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 20 0Fig. 0Tab. 0 Scope of supply Pos. Description Communication module E94AYCEN (Ethernet) Mounting Instructions Connections Pos. Description Ethernet connections X215 Design: RJ45 socket to IEC 60603−7 X216 Status displays Pos. Colour Condition Description Green The communication module is supplied with voltage. The communication module is not accepted by the standard device (see notes given in the documentation for the standard device).
  • Seite 21 Contents About this documentation ..........Conventions used .
  • Seite 22: About This Documentation

    ƒ information about the mechanical and electrical installation of the communication module; ƒ safety instructions which must be followed; ƒ specifications for the versions of the Lenze standard devices to be used. Validity information The information given in this documentation is valid for the following devices:...
  • Seite 23: Conventions Used

    About this documentation Conventions used Conventions used This documentation uses the following conventions to distinguish between different types of information: Type of information Identification Examples/notes Numbers Decimal separator Point The decimal point is used throughout this documentation. Example: 1234.56 Symbols Page reference Reference to another page with additional information...
  • Seite 24: Notes Used

    About this documentation Notes used Notes used The following pictographs and signal words are used in this documentation to indicate dangers and important information: Safety instructions Structure of safety instructions: Danger! (characterises the type and severity of danger) Note (describes the danger and gives information about how to prevent dangerous situations) Pictograph and signal word Meaning...
  • Seite 25 About this documentation Notes used Application notes Pictograph and signal word Meaning Important note to ensure troublefree operation Note! Useful tip for simple handling Tip! Reference to another documentation EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 26: Safety Instructions

    Safety instructions Safety instructions Danger! Inappropriate handling of the communication module and the standard device can cause serious personal injury and material damage. Observe the safety instructions and residual hazards described in the documentation for the standard device. Stop! Electrostatic discharge Electronic components of the communication module can be damaged or destroyed through electrostatic discharge.
  • Seite 27: Product Description

    The communication module connects Lenze Servo Drives 9400 with the Ethernet communication system. Application as directed The communication module ... ƒ is an accessory which can be used in conjunction with the following Lenze standard devices: Product series Type designation...
  • Seite 28: Identification

    Product description Identification Identification Type HW Ver. MAC ID E94YCEN008  ‚ Type code Product series Device generation Module identification: extension module Module type: communication module Ethernet Hardware version EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 29: Mechanical Installation

    Mechanical installation Mechanical installation Note! The Servo Drives 9400 must only be equipped with one Ethernet module, either in module slot MXI1 or in module slot MXI2. Mounting E94YCXX001G EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 30 Mechanical installation Dismounting E94AYCXX001H EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 31: Electrical Installation

    Electrical installation Wiring according to EMC Electrical installation Wiring according to EMC In typical systems, the standard Ethernet cable shielding is sufficient. In environments that are subject to strong interferences, the electromagnetic compatibility can be improved through an additional PE connection of the cable shield. Please observe the following notes: 1.
  • Seite 32: Ethernet Connection

    Note! Isolate your Ethernet home network from the operating network for ƒ Ethernet−capable Lenze devices to avoid Ethernet communication errors. More information about this can be found in the Manual "Ethernet in industrial applications". Plug/remove the Ethernet cable plug vertically into/from the socket to ƒ...
  • Seite 33 Electrical installation Ethernet connection Ethernet cable specifications Note! Only use cables complying with the below specifications. Specification of the Ethernet cable Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base−TX (Fast Ethernet) Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e Damping 23.2 dB (at 100 MHz and per 100 m)
  • Seite 34 Electrical installation Ethernet connection Colour code of Ethernet cable Note! Wiring and colour code are standardised in EIA/TIA 568A/568B. You can use 4−pin Ethernet cables in accordance with the industrial standard. The cable type only connects the assigned pins 1, 2, 3 and 6 with each other. E94YCEI004A Fig.
  • Seite 35: Voltage Supply

    Electrical installation Voltage supply Voltage supply Internal supply The communication module is exclusively internally supplied with voltage by the standard device. Note! With a line topology, data transfer between the Ethernet nodes at interface X215 and the Ethernet nodes at interface X216 will be interrupted when the standard device fails.
  • Seite 36: Equipement Livré

    0Fig. 0Tab. 0 Equipement livré Pos. Description Module de communication E94AYCEN (Ethernet) Instructions de montage Raccordements Pos. Description Raccordements Ethernet X215 Configuration : une prise RJ45 selon CEI 60603−7 par raccordement X216 Affichage d’état Pos. Couleur Etat Description Vert Le module de communication est sous tension. Rouge Le module de communication n’est pas reconnu par l’appareil de base (voir instructions de mise en service de l’appareil de base).
  • Seite 37 Sommaire Présentation du document ..........Conventions utilisées .
  • Seite 38: Présentation Du Document

    ; ƒ des consignes de sécurité qui doivent impérativement être respectées ; ƒ des indications sur les versions des appareils de base Lenze à utiliser. Informations relatives à la validité Les informations contenues dans le présent document s’appliquent aux appareils suivants : Module d’extension...
  • Seite 39: Conventions Utilisées

    Présentation du document Conventions utilisées Conventions utilisées Pour faire la distinction entre différents types d’informations, ce document utilise les conventions suivantes : Type d’information Marquage Exemples/remarques Représentation des chiffres Séparateur décimal Point Le point décimal est généralement utilisé. Exemple : 1234.56 Symboles Renvoi à...
  • Seite 40: Consignes Utilisées

    Présentation du document Consignes utilisées Consignes utilisées Pour indiquer des risques et des informations importantes, la présente documentation utilise les mots et symboles suivants : Consignes de sécurité Présentation des consignes de sécurité Danger ! (Le pictogramme indique le type de risque.) Explication (L’explication décrit le risque et les moyens de l’éviter.) Pictogramme et mot associé...
  • Seite 41: Remarque Importante

    Présentation du document Consignes utilisées Consignes d’utilisation Pictogramme et mot associé Explication Remarque Remarque importante pour assurer un fonctionnement correct importante ! Conseil utile pour faciliter la mise en oeuvre Conseil ! Référence à une autre documentation EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 42: Consignes De Sécurité

    Consignes de sécurité Consignes de sécurité Danger ! Toute utilisation non conforme à la fonction du module de communication et de l’appareil de base risque d’entraîner de sévères blessures et graves dommages matériels. Tenir compte des consignes de sécurité et des dangers résiduels indiqués dans la documentation de l’appareil de base.
  • Seite 43: Description Du Produit

    Description du produit Fonction Description du produit Fonction Le module de communication relie les appareils Servo Drives 9400 de Lenze au système de communication Ethernet. Utilisation conforme à la fonction Le module de communication ... ƒ est un accessoire compatible avec les appareils de base Lenze suivants : Série de produits...
  • Seite 44: Identification

    Description du produit Identification Identification Type HW Ver. MAC ID E94YCEN008  ‚ Codification des types Série de produits Génération d’appareils Identification du module : module d’extension Type de module : module de communication Ethernet Version matérielle EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 45: Installation Mécanique

    Installation mécanique Installation mécanique Remarque importante ! Un variateur Servo Drive 9400 ne doit être équipé que d’un seul module Ethernet (dans l’emplacement MXI1 ou MXI2). Montage E94YCXX001G EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 46 Installation mécanique Démontage E94AYCXX001H EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 47: Installation Électrique

    Installation électrique Câblage conforme CEM Installation électrique Câblage conforme CEM Dans les installations types, un blindage standard du câble Ethernet suffit. Dans les environnements soumis à de fortes perturbations, il est possible d’améliorer la résistance CEM par une mise à la terre supplémentaire du blindage du câble. Tenir compte des consignes suivantes : 1.
  • Seite 48: Raccordement Ethernet

    Remarque importante ! Pour éviter tout problème de communication Ethernet, séparer le réseau ƒ Ethernet du bâtiment de celui auquel les appareils Lenze compatibles avec la technologie Ethernet doivent être raccordés. Pour de plus amples informations à ce sujet, consulter le manuel "L’Ethernet en application dans le milieu industriel".
  • Seite 49 Installation électrique Raccordement Ethernet Spécifications du câble Ethernet Remarque importante ! Utiliser exclusivement des câbles conformes aux spécifications indiquées. Spécifications du câble Ethernet Standard Ethernet Standard Ethernet (selon IEEE 802.3), 100Base−TX (Fast Ethernet) Type de câble S/FTP (Screened Foiled Twisted Pair, ISO/CEI 11801 ou EN 50173), CAT 5e Amortissement 23.2 dB (pour 100 MHz et par segment de 100 m)
  • Seite 50 Installation électrique Raccordement Ethernet Codification des couleurs du câble Ethernet Remarque importante ! Le câblage et la codification des couleurs sont définis par les normes EIA/TIA 568A/568B. L’utilisation d’un câble Ethernet à 4 paires de fils conforme à la norme industrielle est autorisée.
  • Seite 51: Alimentation

    Installation électrique Alimentation Alimentation Alimentation interne Le module de communication est exclusivement alimenté en interne par l’appareil de base. Remarque importante ! En cas de câblage en ligne, une panne de l’appareil de base provoque une interruption du transfert de données entre les participants Ethernet raccordés à...
  • Seite 52: Oggetto Della Fornitura

    0Fig. 0Tab. 0 Oggetto della fornitura Pos. Descrizione Modulo di comunicazione E94AYCEN (Ethernet) Istruzioni di montaggio Collegamenti Pos. Descrizione Collegamenti Ethernet X215 Esecuzione: connettore femmina RJ45 secondo IEC 60603−7 X216 Indicazioni di stato Pos. Colore Stato Descrizione verde acceso Il modulo di comunicazione riceve correttamente la tensione di alimentazione.
  • Seite 53 Sommario Informazioni sul manuale ..........Convenzioni utilizzate .
  • Seite 54: Informazioni Sul Manuale

    ƒ informazioni sull’installazione meccanica ed elettrica del modulo di comunicazione; ƒ informazioni sulla sicurezza da rispettare assolutamente; ƒ informazioni sulle versioni dei dispositivi base Lenze da utilizzare. Informazioni sulla validità Le informazioni contenute nella presente documentazione sono valide per i seguenti...
  • Seite 55: Convenzioni Utilizzate

    Informazioni sul manuale Convenzioni utilizzate Convenzioni utilizzate La presente documentazione utilizza le seguenti convenzioni tipografiche per distinguere i diversi tipi di informazioni: Tipo di informazione Convenzione Esempi/Note tipografica Modalità di scrittura dei numeri Separatore decimale Punto Generalmente si utilizza il punto decimale.
  • Seite 56: Avvertenze Utilizzate

    Informazioni sul manuale Avvertenze utilizzate Avvertenze utilizzate Per segnalare pericoli ed informazioni importanti, nella presente documentazione sono riportati i seguenti simboli e parole di segnalazione: Note di sicurezza Struttura delle note di sicurezza: Pericolo! (indica il tipo e la gravità del pericolo) Testo della nota (descrive il pericolo e fornisce indicazioni su come può...
  • Seite 57: Informazioni Sulla Sicurezza

    Informazioni sulla sicurezza Informazioni sulla sicurezza Pericolo! Un utilizzo improprio del modulo di comunicazione e del dispositivo base può causare gravi danni materiali e alle persone. Rispettare le informazioni sulla sicurezza e sugli altri pericoli contenute nella documentazione relativa al dispositivo base. Stop! Scariche elettrostatiche Eventuali scariche elettrostatiche possono danneggiare o distruggere le...
  • Seite 58: Descrizione Del Prodotto

    Descrizione del prodotto Funzione Descrizione del prodotto Funzione Il modulo di comunicazione collega i Servo Drives 9400 Lenze al sistema di comunicazione Ethernet. Utilizzo conforme Il modulo di comunicazione ... ƒ è un modulo accessorio che può essere impiegato con i seguenti dispositivi base...
  • Seite 59: Identificazione

    Descrizione del prodotto Identificazione Identificazione Type HW Ver. MAC ID E94YCEN008  ‚ Codice di identificazione Serie Versione dispositivo Identificazione modulo: modulo di espansione Tipo di modulo: modulo di comunicazione Ethernet Versione hardware EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 60: Installazione Meccanica

    Installazione meccanica Installazione meccanica Avvertenza: Un Servo Drive 9400 può essere dotato di un solo modulo Ethernet, inserito nello slot MXI1 o MXI2. Montaggio E94YCXX001G EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 61 Installazione meccanica Smontaggio E94AYCXX001H EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 62: Installazione Elettrica

    Installazione elettrica Cablaggio a norma EMC Installazione elettrica Cablaggio a norma EMC Nei normali impianti è sufficiente una schermatura standard del cavo Ethernet. In ambienti con forti interferenze, per migliorare l’immunità EMC è possibile realizzare un ulteriore collegamento a terra della schermatura del cavo. Per questo, osservare quanto segue: 1.
  • Seite 63: Collegamento Ethernet

    Ethernet standard, reperibile in commercio (vedere "Specifiche del cavo Ethernet" (^ 64)). Avvertenza: Disaccoppiare la rete Ethernet locale (LAN) dalla rete aziendale per ƒ dispositivi Lenze abilitati per Ethernet, al fine di evitare interferenze nella comunicazione Ethernet. Per ulteriori informazioni al riguardo, consultare il manuale "Ethernet nelle applicazioni industriali".
  • Seite 64 Installazione elettrica Collegamento Ethernet Specifiche del cavo Ethernet Avvertenza: Utilizzare esclusivamente cavi conformi alle specifiche. Specifiche del cavo Ethernet Standard Ethernet Ethernet standard (secondo IEEE 802.3), 100Base−TX (Fast Ethernet) Tipo di cavo S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 o EN 50173), CAT 5e Attenuazione 23.2 dB (a 100 MHz e ogni 100 m)
  • Seite 65 Installazione elettrica Collegamento Ethernet Codifica dei colori del cavo Ethernet Avvertenza: Il cablaggio e la codifica dei colori sono conformi agli standard EIA/TIA 568A/568B. È consentito l’impiego di cavi Ethernet a 4 poli secondo la normativa DIN. Il tipo di cavo collega solo i pin assegnati 1, 2, 3 e 6 l’uno con l’altro. E94YCEI004A Fig.
  • Seite 66: Alimentazione

    Installazione elettrica Alimentazione Alimentazione Alimentazione interna Il modulo di comunicazione viene alimentato soltanto internamente tramite il modulo asse. Avvertenza: In caso di disattivazione del modulo asse con cablaggio di tipo lineare, il trasferimento di dati tra i nodi Ethernet sull’interfaccia X215 e i nodi Ethernet sull’interfaccia X216 viene interrotto.
  • Seite 67 Installazione elettrica Alimentazione EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 68: Contenido Del Suministro

    0Fig. 0Tab. 0 Contenido del suministro Pos. Descripción Módulo de comunicación E94AYCEN (Ethernet) Instrucciones de montaje Conexiones Pos. Descripción Conexiones Ethernet X215 Ejecución: conector RJ45 según IEC 60603−7 X216 Indicaciones de estado Pos. Color Estado Descripción verde encendido El módulo de comunicación está siendo alimentado con voltaje. rojo encendido El módulo de comunicación no es aceptado por el equipo básico...
  • Seite 69 Contenido Acerca de esta documentación ......... Convenciones utilizadas .
  • Seite 70: Acerca De Esta Documentación

    ƒ Información para la instalación mecánica y eléctrica del módulo de comunicaciones. ƒ Instrucciones de Seguridad que deben ser aplicadas. ƒ Datos de las versiones de los equipos básicos Lenze que deben ser utilizados. Vigencia de la información La información contenida en esta documentación es válida para los siguientes equipos: Módulo de Expansión...
  • Seite 71: Convenciones Utilizadas

    Acerca de esta documentación Convenciones utilizadas Convenciones utilizadas Esta documentación utiliza las siguientes convenciones para distinguir diferentes tipos de información: Tipo de información Marcación Ejemplos/indicaciones Números Separador decimal Punto En general se usa el punto decimal. Ejemplo: 1234.56 Símbolos Referencia de página Referencia con información adicional sobre otra página Ejemplo:...
  • Seite 72: Indicaciones Utilizadas

    Acerca de esta documentación Indicaciones utilizadas Indicaciones utilizadas Para indicar peligros e información importante, se utilizan en esta documentación los siguientes términos indicativos y símbolos: Instrucciones de seguridad Estructura de las instrucciones de seguridad: ¡Peligro! (indican el tipo y la gravedad del peligro) Texto indicativo (describe el peligro y da instrucciones para evitarlo) Pictograma y término indicativo...
  • Seite 73: Instrucciones De Seguridad

    Instrucciones de seguridad Instrucciones de seguridad ¡Peligro! El uso inapropiado del módulo de comunicaciones y del equipo básico puede causar accidentes y daños materiales. Observe las Instrucciones de Seguridad y Riesgos Residuales contenidos en la documentación del equipo básico. ¡Alto! Descarga electrostática A causa de una descarga electrostática podrían resultar dañados o destruidos componentes electrónicos dentro del módulo de comunicaciones.
  • Seite 74: Descripción Del Producto

    Descripción del producto Función Descripción del producto Función El módulo de comunicaciones se acopla al Lenze Servo Drives 9400 con el sistema de comunicaciones Ethernet. Uso previsto El módulo de comunicaciones... ƒ es un accesorio que puede conectarse con el siguiente equipo básico Lenze: Serie de productos Designación de tipo...
  • Seite 75: Identificación

    Descripción del producto Identificación Identificación Type HW Ver. MAC ID E94YCEN008  ‚ Código de tipo Serie de productos Generación de equipos Característica del módulo: módulo de ampliación Tipo de módulo: módulo de comunicación Ethernet Versión de hardware EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 76: Instalación Mecánica

    Instalación mecánica Instalación mecánica ¡Aviso! Un Servo Drive 9400 sólo puede llevar un módulo Ethernet, ya sea en el conector de módulos MXI1 o MXI2. Montaje E94YCXX001G EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 77 Instalación mecánica Desmontaje E94AYCXX001H EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 78: Instalación Eléctrica

    Instalación eléctrica Cableado según CEM Instalación eléctrica Cableado según CEM En instalaciones típicas es suficiente el apantallamiento estándar de los cables Ethernet. En entornos con muchas interferencias, se puede obtener una mejora de la resistencia EMC mediante una puesta a tierra adicional de la malla del cable. Observe para ello las siguientes instrucciones: 1.
  • Seite 79: Conexión A Ethernet

    ¡Aviso! Desacople su red interna de Ethernet de la red de trabajo para equipos ƒ Lenze con capacidad de conexión a Ethernet, para evitar fallos en la comunicación Ethernet. Encontrará más información sobre este tema en el manual "Ethernet en aplicaciones industriales".
  • Seite 80 Instalación eléctrica Conexión a Ethernet Especificación del cable Ethernet ¡Aviso! Sólo utilice cables conforme a las especificaciones indicadas. Especificaciones del cable Ethernet Ethernet estándar Ethernet estándar (según IEEE 802.3), 100Base−TX (Fast Ethernet) Tipo de cable S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 o EN 50173), CAT 5e Atenuación 23.2 dB (a 100 MHz y cada 100 m)
  • Seite 81 Instalación eléctrica Conexión a Ethernet Codificación de colores del cable Ethernet ¡Aviso! El cableado y el código de color están estandarizados según EIA/TIA 568A/568B. Está permitido el uso de cables de Ethernet de 4 polos según la norma industrial. El tipo de cable sólo une los pins asignados 1, 2, 3 y 6 entre ellos. E94YCEI004A Fig.
  • Seite 82: Alimentación De Voltaje

    Instalación eléctrica Alimentación de voltaje Alimentación de voltaje Alimentación interna El módulo de comunicaciones sólo es alimentado de forma interna a través del equipo básico. ¡Aviso! Al fallar un equipo básico y en caso de un cableado en línea, la transferencia de datos entre los dispositivos conectados a Ethernet en el interface X215 y los dispositivos conectados al interface X216 estará...
  • Seite 83 Instalación eléctrica Alimentación de voltaje EDK94AYCEN DE/EN/FR/ES/IT 6.0...
  • Seite 84 © 03/2010 Lenze Automation GmbH Service Lenze Service GmbH Hans−Lenze−Str. 1 Breslauer Straße 3 D−31855 Aerzen D−32699 Extertal Germany Germany +49 (0)51 54 / 82−0 00 80 00 / 24 4 68 77 (24 h helpline) Ê Ê +49 (0)51 54 / 82 − 28 00 +49 (0)51 54 / 82−11 12...
