Rear View
3

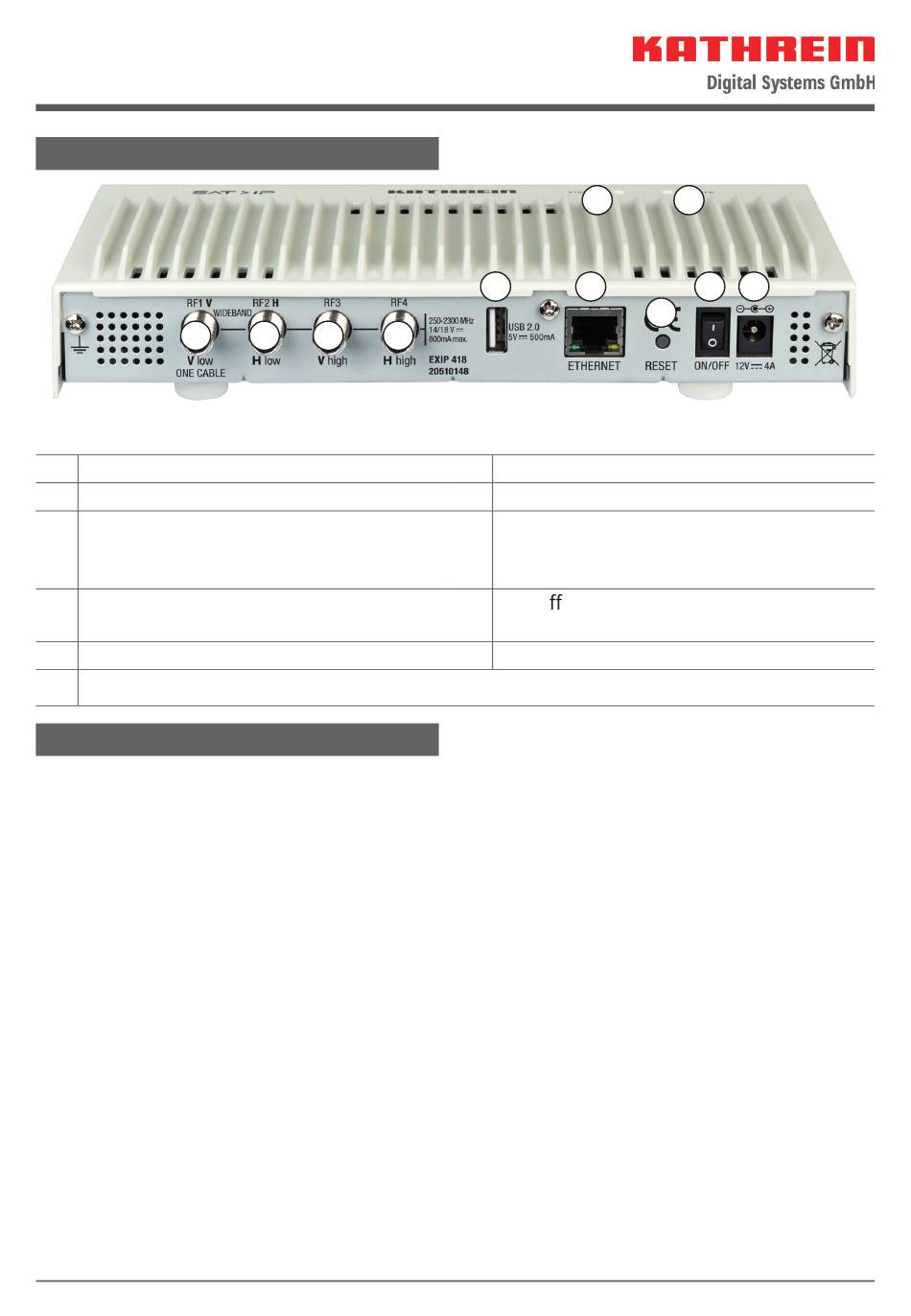

Fig. 3:
EXIP 418: Back panel
① Stream LED
② Power LED
③ RF1 input V low in mode; single-cable
connection (EN 50494 and EN 50607);
RF1 input V in wideband mode
④ RF2 input H low in Quattro mode; RF2
input H in wideband mode
⑤ RF3 input V high in Quattro mode
⑥ RF4 input H high in Quattro mode
Connecting the Device
Connecting the EXIP 418 to a Quattro/Quad-LNB or multi-switch
1. You must connect the four input cables according to the voltage (Fig. 3) correctly.
2. Connect the device to a router with an Ethernet cable. Normally, the existing router
(e.g. FRITZ!Box) will automatically assign an IP address.
3. Connect the power supply unit to the EXIP 418.
4. Connect the power supply unit to the mains voltage.
5. Switch on the device.
➯ The Power LED lights up. Connection to the network is being established. When
the network is connected, the blue Stream LED lights up.
The default setting in the web interface for LNB Settings is Quattro/Quad.
Connecting the EXIP 418 to a Single-cable Multi-switch/Single-cable LNB
1. Connect RF1 input to a single-cable multi-switch or single-cable LNB.
2. Carry out steps 2 – 5 as described in the paragraph "Connecting the EXIP 418 to a
Quattro/Quad-LNB or multi-switch" on page 5.
3. Set OneCable in the web interface for LNB Settings; see "Operating the Web Interface"
on page 6
If the EXIP 418 is connected to an EN 50607 (SCD2)-abled device, no more settings are
necessary.
4
5
6
1
7
8
⑦ USB 2.0 connection
⑧ 10/100/1000-MBit Ethernet connection
⑨ Reset button
⑩ On/O switch
⑪ Power supply connection (12 V/4 A)
5 / 8
2
10 11
9
