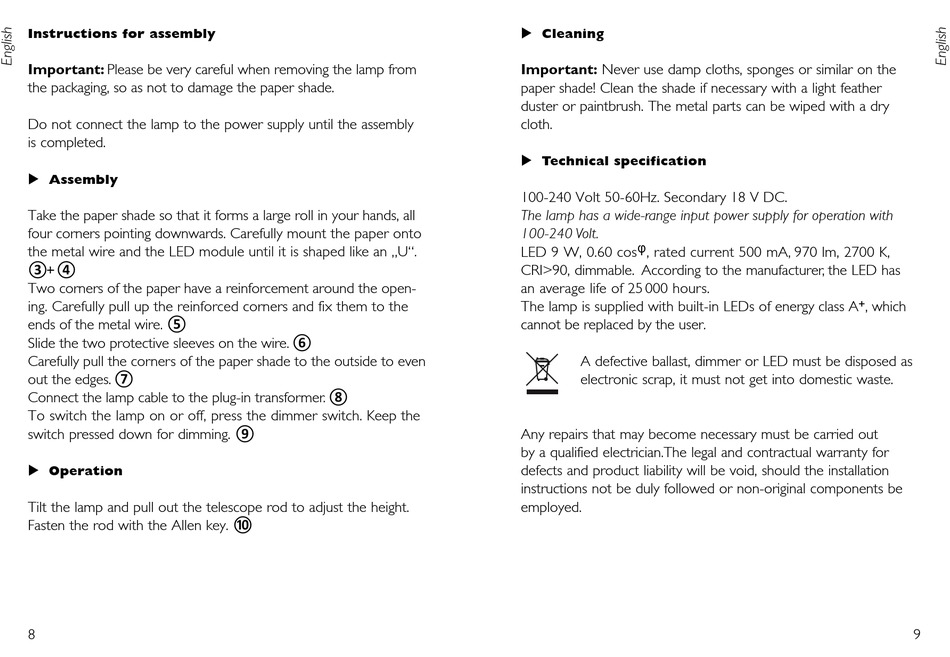

Instructions for assembly
Important: Please be very careful when removing the lamp from
the packaging, so as not to damage the paper shade.
Do not connect the lamp to the power supply until the assembly
is completed.
u Assembly
Take the paper shade so that it forms a large roll in your hands, all
four corners pointing downwards. Carefully mount the paper onto
the metal wire and the LED module until it is shaped like an „U".
③+ ④
Two corners of the paper have a reinforcement around the open-
ing. Carefully pull up the reinforced corners and fix them to the
ends of the metal wire. ⑤
Slide the two protective sleeves on the wire. ⑥
Carefully pull the corners of the paper shade to the outside to even
out the edges. ⑦
Connect the lamp cable to the plug-in transformer. ⑧
To switch the lamp on or off, press the dimmer switch. Keep the
switch pressed down for dimming. ⑨
u Operation
Tilt the lamp and pull out the telescope rod to adjust the height.
Fasten the rod with the Allen key. ⑩
8
u Cleaning
Important: Never use damp cloths, sponges or similar on the
paper shade! Clean the shade if necessary with a light feather
duster or paintbrush. The metal parts can be wiped with a dry
cloth.
u Technical specification
100-240 Volt 50-60Hz. Secondary 18 V DC.
The lamp has a wide-range input power supply for operation with
100-240 Volt.
ᵩ
LED 9 W, 0.60 cos
, rated current 500 mA, 970 lm, 2700 K,
CRI>90, dimmable. According to the manufacturer, the LED has
an average life of 25 000 hours.
The lamp is supplied with built-in LEDs of energy class A
cannot be replaced by the user.
A defective ballast, dimmer or LED must be disposed as
electronic scrap, it must not get into domestic waste.
Any repairs that may become necessary must be carried out
by a qualified electrician.The legal and contractual warranty for
defects and product liability will be void, should the installation
instructions not be duly followed or non-original components be
employed.
+
, which
9
