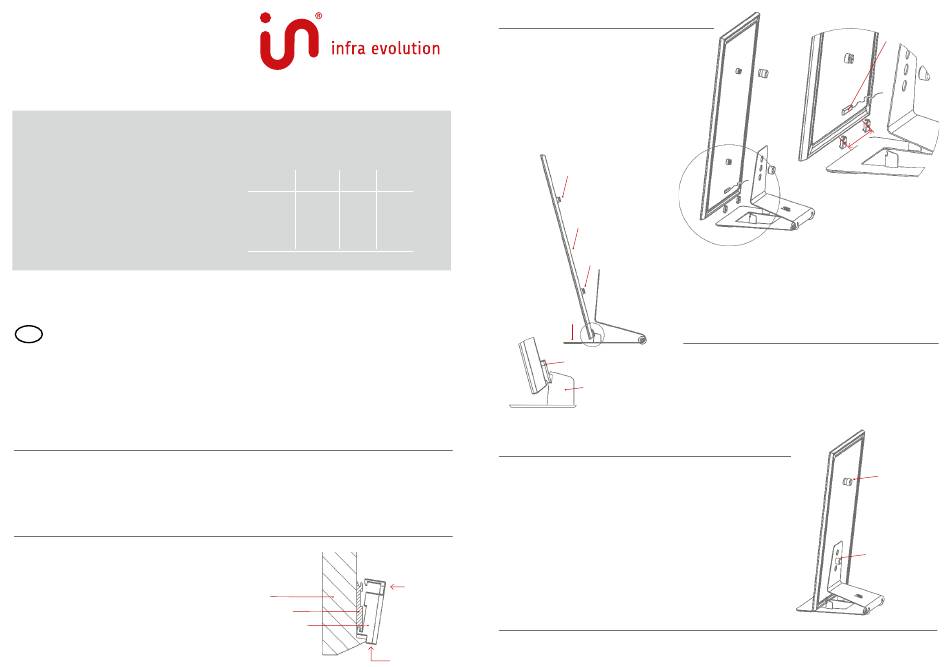

Assembly instruction
infra butler stand
Dear customer,
Congratulations on your new infra butler stand.
Scope of supply
•
1 pc. infra butler stand
•
2 pcs. mounting adapters
•
1 pc. grip knob
•
1 pc. mounting nut
Assembly
Step 1
Mount the two mounting adapters on the short side of the panel
where the cable outlet is located. The mounting adapter is hooked
onto the bottom of the mounting rail and then clicked in place at
the top end of the mounting rail. (see Figure 1)
The models below can be used as floor models
in combination with the infra butler:
Name
H x W
Watt
Weight
(cm)
at 230V
(kg)
Konvex 6
100 x 62
620
11
Konvex 7
150 x 50
750
14
Konvex 8
150 x 62
900
16
Konvex 9
125 x 75
940
16
Konvex 11
150 x 75
1125
19
Figure 1
Press here
firmly for
sectional view
adapter to
of panel section
click in place
panel
mounting rail
mounting adapter
Insert mounting
adapter at the
bottom of the rail.
Step 2
Position the two adapters by sliding them sideways;
the distance between them must be 233 mm.
The distance to the panel edges is the same for
both adapters (see Figure 2).
Figure 3
suspension bolt
infrared panel
suspension bolt
infra butler stand
mounting adapter
adapter holder
Step 4
Tilt the panel towards the stand which is spring-mounted. Adjust the height of the stand
bore hole to ensure that the suspension bolt of the panel can be optimally inserted.
Secure the panel to the stand with the 35 mm mounting nut. Screw the 53 mm
grip knob to the upper suspension bolt.
Infra Evolution GmbH
Infrared heating systems | Sales | Development
Figure 2
233 mm
Step 3
Use the mounting adapters to place your panel at an angle in the
adapter holder of the infra butler (see Figure 3).
www.infraevolution.at
cable outlet
grip knob
mounting nut
V. 01.21
