Celestron Astrof FI 127 mak Kurzanleitung Zur Einrichtung

127 MAK
Quick Setup Guide
ENGLISH
5
Thread the captive hand bolt in the center leg brace
through the bottom of the accessory tray to secure
it in place.
8
Locate the 90° star diagonal and remove the plastic
covers from both ends. Remove the plastic cap on
the eyepiece holder on the telescope. Insert the
barrel of the diagonal into eyepiece holder on the
back of the telescope and secure it by tightening the
setscrews.
1
ITEM #22206

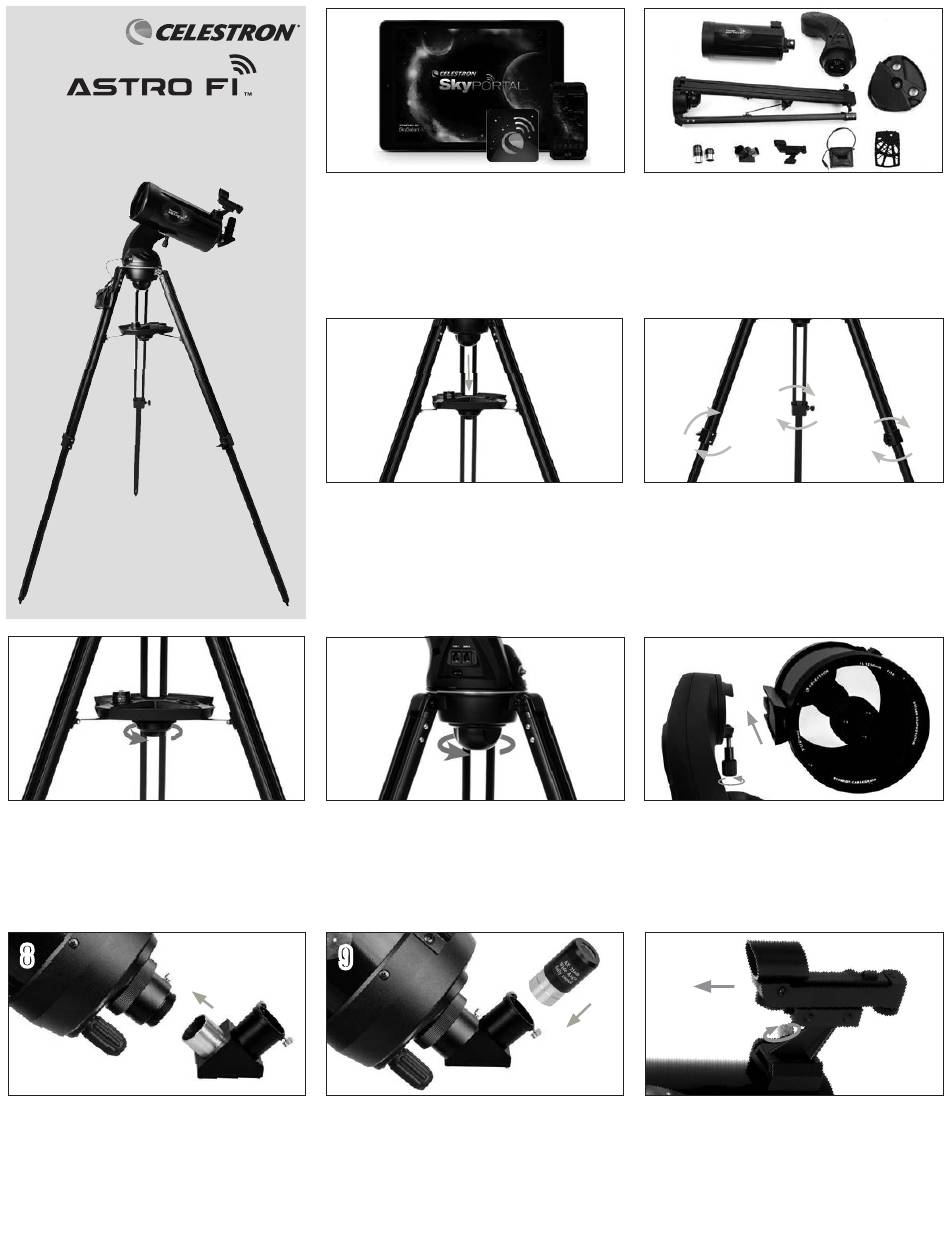

Before you begin assembling your telescope, install
the free Celestron SkyPortal app on your Apple
or Android mobile device. The app is large, so we
recommend downloading it while connected to Wi-Fi.
To download, search for "Celestron SkyPortal" in the
App Store or Google Play.
3
To set up the tripod, spread the legs outward until they
are fully extended and push down center leg brace.
6
Place the motorized fork arm over the top of the
tripod head and use the large captive knob between
the tripod legs to lock the mount in place.
9
Insert the barrel of the 25mm eyepiece into the top
of the star diagonal. Tighten the setscrew.
2
Unpack your telescope and verify that all parts
are present. Your Astro Fi 127 MAK includes: a
telescope tube, a tripod, a motorized fork arm
mount, an accessory tray, two eyepieces, a 90°
star diagonal, a fi nderscope, a battery pack, and a
smartphone adapter.
4
Extend the legs of the tripod by loosening the three
hand knobs on each leg. Pull each leg section all the
way out and tighten the hand knobs down to secure
them in place.
7
Attach the telescope optical tube by positioning
the dovetail into the dovetail holder on the fork arm.
Make sure the bottom of the dovetail is fl at against
the dovetail holder. Firmly tighten the thumb bolt.
1 0
Slide the fi nderscope bracket into the dovetail slot
on the telescope tube near the focuser. The large
window on the fi nderscope should be facing the front
of the telescope. Secure the bracket by tightening
the setscrew on the dovetail slot.
ENGLISH 1
|
