TALKSAFE
Order number 1000189
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Intercom System
These instructions are intended for installers
and users of the system. Please read these in­
structions carefully prior to installation / oper­
ation and keep them for later reference.
1 Applications
The intercom system TALKSAFE is used to make
conversations easier when persons are separated
by a wall, a glass pane or an acrylic glass pane, etc.
(e. g. at checkouts or service counters). The system
consists of one internal microphone unit (for the
staff) and one external microphone unit (for the
customers). A power supply unit and a cable for
connecting the microphone units are supplied with
the system.
2 Safety Notes
The product corresponds to all relevant directives of
the EU and is therefore marked with .
WARNING The power supply unit uses danger­
ous mains voltage. Leave servicing to
skilled personnel only. Inexpert han­
dling may result in electric shock.
•
The product is suitable for indoor use only. Pro­
tect it against dripping water, splash water and
high air humidity. The admissible ambient tem­
perature range is −10 °C to +40 °C.
•
Do not use this product and immediately discon­
nect the power supply unit from the socket
1. if one of the devices is visibly damaged,
2. if a defect might have occurred after a device
was dropped or suffered a similar accident,
3. if malfunctions occur.
Any repairs must be carried out by specialists.
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
staff customer
internal
microphone unit microphone unit
12 V DC Audio
12 V DC
Setup
•
For cleaning the power supply unit, only use a
dry, soft cloth. For cleaning the microphone units,
a commercial surface cleaner and a soft cloth may
be used. Always make sure that no fluid gets in­
side the units.
•
No guarantee claims for the product and no lia­
bility for any resulting personal damage or mate­
rial damage will be accepted if the product is not
correctly used or not expertly repaired.
If the product is to be put out of opera­
tion definitely, dispose of the product in
accordance with local regulations.
ELECTRONICS FOR SPECIALISTS

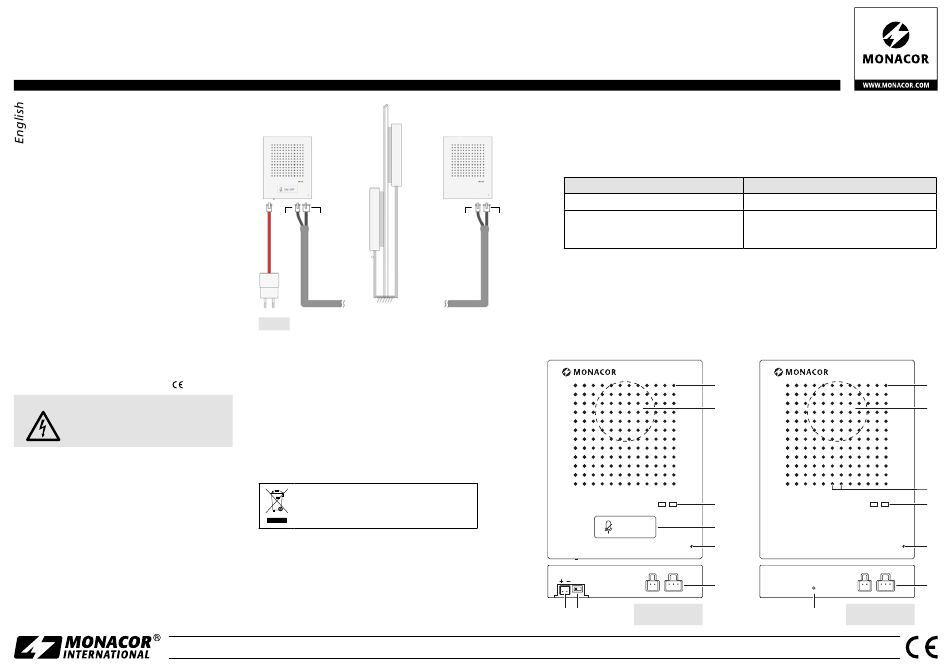

3 Overview
external
1 Potentiometer to adjust the volume (during installation)
2 Speaker
3 IR sensor (proximity sensor)
4 LED status indicators
internal microphone unit
green on: intercom system switched on
red on: speaker on, microphone off
12 V DC Audio
red off: speaker on, microphone on
microphone on /off: via the mute key
5 Mute key to switch on /off the microphone
6 Microphone
7 Jacks to connect the microphone units via the cable provided
8 Recessed button to deactivate /reactivate the infrared sensor
9 Power switch for the intercom system
10 Connection for the power supply unit provided
ON/OFF
12V DC ON / OFF
10 9
Copyright by MONACOR INTERNATIONAL. All rights reserved.
©
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR
external microphone unit
green on: intercom system switched on
red on: speaker off, microphone off
red off: speaker on, microphone on
speaker and microphone on /off: via the IR sensor
TALKSAFE
1
2
4
5
6
7
internal
8
microphone unit
A-2086.99.01.01.2021
TALKSAFE
1
2
3
4
6
7
external
microphone unit
