Teac LP-R400 Kurzanleitung

Z

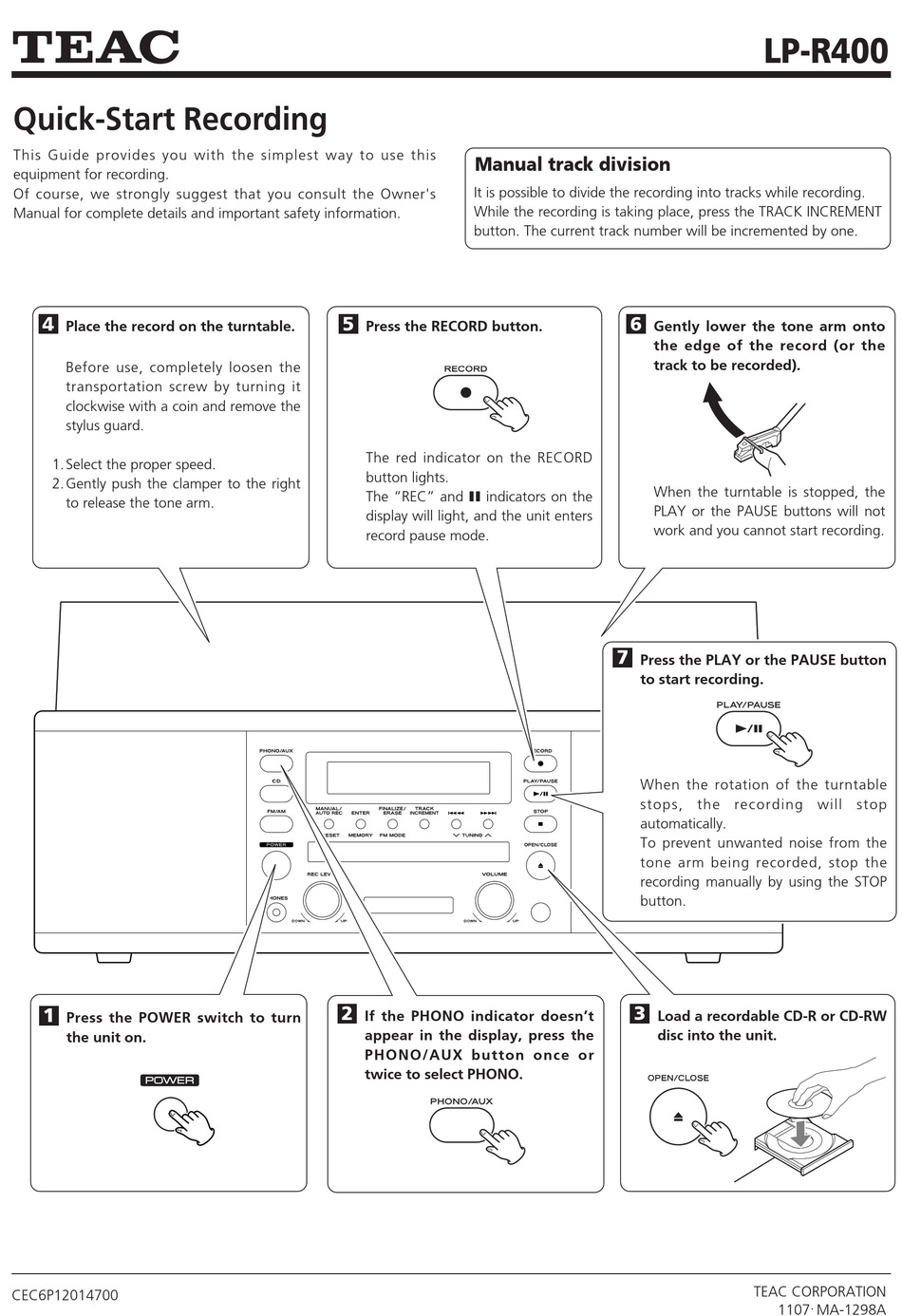

Quick-Start Recording
This Guide provides you with the simplest way to use this
equipment for recording.
Of course, we strongly suggest that you consult the Owner's
Manual for complete details and important safety information.
4
Place the record on the turntable.
Before use, completely loosen the
transportation screw by turning it
clockwise with a coin and remove the
stylus guard.
1. Select the proper speed.
2. Gently push the clamper to the right
to release the tone arm.
1
Press the POWER switch to turn
the unit on.
CEC6P12014700
Manual track division
It is possible to divide the recording into tracks while recording.
While the recording is taking place, press the TRACK INCREMENT
button. The current track number will be incremented by one.
5
Press the RECORD button.
The red indicator on the RECORD
button lights.
The "REC" and J indicators on the
display will light, and the unit enters
record pause mode.
2
If the PHONO indicator doesn't
appear in the display, press the
PHONO/AUX button once or
twice to select PHONO.
LP-R400
6
Gently lower the tone arm onto
the edge of the record (or the
track to be recorded).
When the turntable is stopped, the
PLAY or the PAUSE buttons will not
work and you cannot start recording.
7
Press the PLAY or the PAUSE button
to start recording.
When the rotation of the turntable
stops, the recording will stop
automatically.
To prevent unwanted noise from the
tone arm being recorded, stop the
recording manually by using the STOP
button.
3
Load a recordable CD-R or CD-RW
disc into the unit.
TEAC CORPORATION
1107 . MA-1298A
