BOX CONTENTS

iO Dock
Power adapter
iPad 2 adapter
Quickstart Guide
Safety Instructions & Warranty Information Booklet

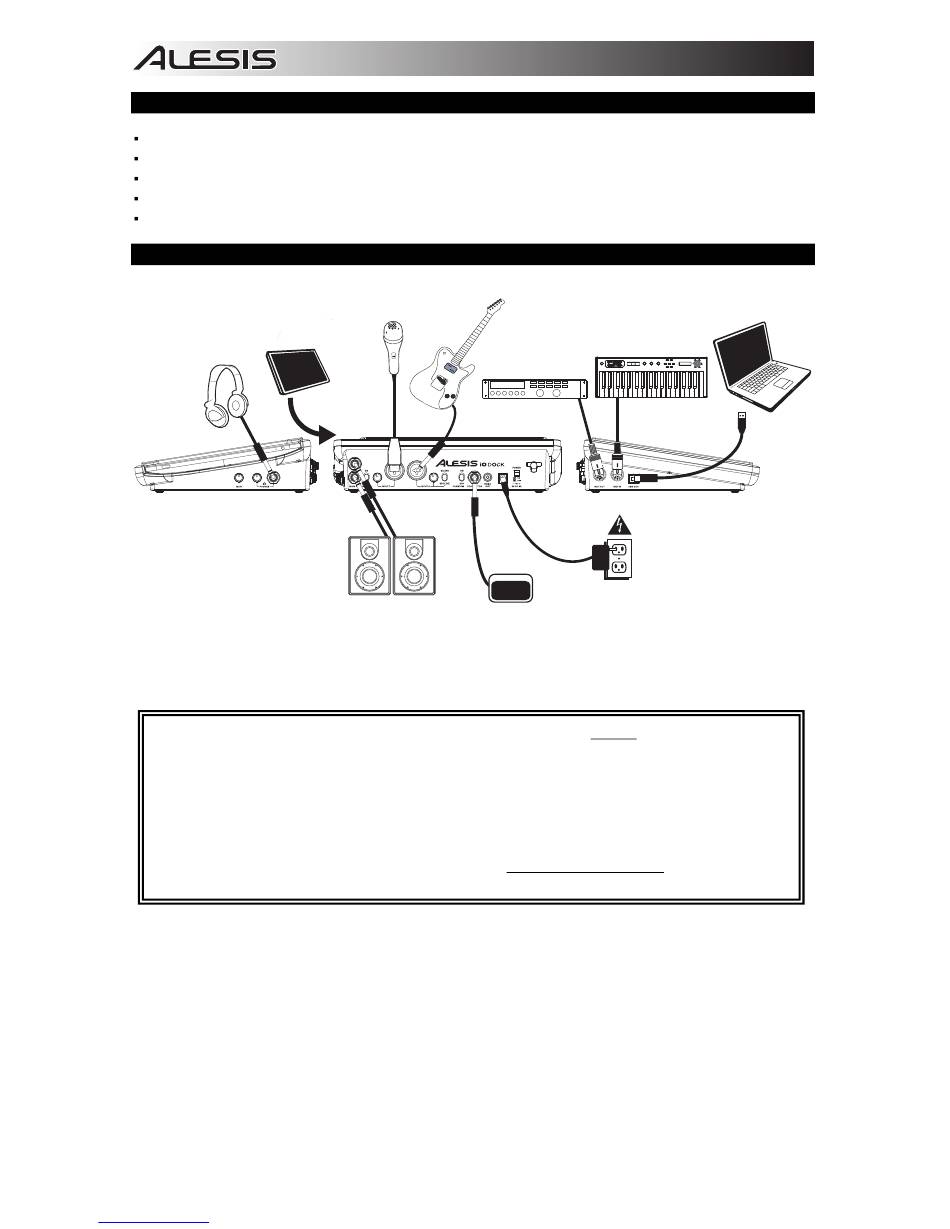

CONNECTION DIAGRAM

HEADPHONES*
• WARNING: Only put on your headphones or turn on your speakers AFTER turning on the iO Dock.
• You can use up to two TS footswitches with iO Dock by connecting them to a TRS "splitter"
connected to the FOOTSWITCH jack.
• When recording a guitar or bass with an active pickup, set the iO Dock's GUITAR / MIC/LINE
SWITCH to "MIC/LINE." If your instrument uses a passive pickup, set the switch to "GUITAR."
• To reduce electrical hum at high gain settings, keep the iO Dock's power supply away from your
guitar cable and the iO Dock's channel inputs.
• You can upgrade iO Dock's firmware yourself. Visit www.alesis.com/iodock and click on "Docs
and Downloads" to see if there are any available firmware updates.
