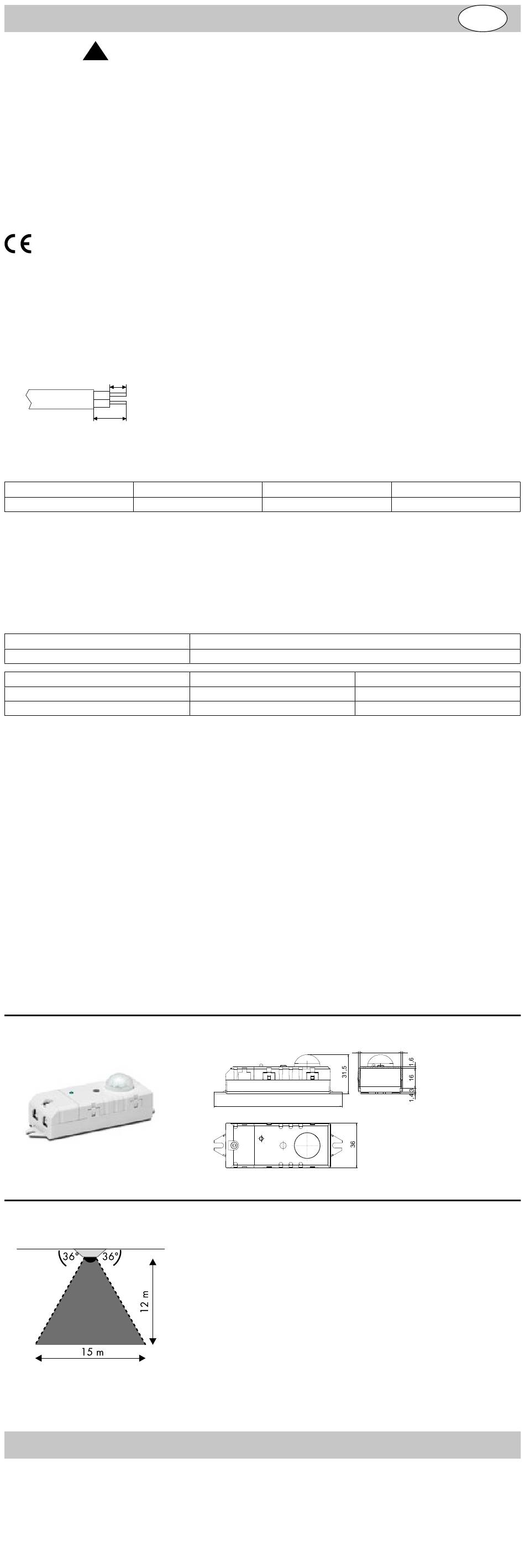

ENGLISH
!
Safety notes
The Blu2Light products may only be installed and commissioned by authorised specialists. Read these
instructions carefully before installing and commissioning the system. This is the only way to ensure safe and
correct handling. Keep this manual in a safe place so that it may be available at a later date. Before any
work is carried out on the equipment, it must be disconnected from the supply voltage. The applicable safety
and accident prevention regulations must be observed. Improper opening of the products is not permitted,
there is a danger to life due to electrical voltage. Repairs may only be carried out by the manufacturer.
Connecting external voltage to the DALI control line, e.g. 230 V mains voltage, will destroy the products.
Bluetooth wireless technology
®
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
®
any use of such marks by Vossloh-Schwabe is under license. Other trademarks and trade names are
those of their respective owners.
We, Vossloh-Schwabe Deutschland GmbH, herewith confirm that these devices comply with the basic
requirements of the directive 2014/53/EU and other relevant directives. The entire text of the declaration
of conformity can be obtained from the following address: www.vossloh-schwabe.com
Connection
• Conductor cross section of all screw terminals: 0.75–2.5 mm²
• Screw terminals: max. torque: 0.4 Nm
• Preparation of the wires:
max. 20
The DALI bus is not designed in SELV by default. Cables must be mains voltage resistant. The DALI bus
line can be routed together with the mains line in one cable up to a maximum of 100 m, e.g. with NYM
5x1.5 mm². Please make sure that the maximum length for the DALI bus is observed during installation:
2.5/1.5 mm²
300 m (6.2 Ω max.)
Assembly
Please use the provided mounting lugs for screws M3
Setup and operation
• The Blu2Light devices have to be configured with the LiNA Connect App and can be operated via
the LiNA Touch App.
• An Apple iPad is required for setup, it is not included in the scope of delivery.
LiNA Connect (configuration)
iPad
LiNA Touch (operation)
Tablet
Smartphone
Technical Notes
MultiSensor XL
Communication:
Frequency range:
Output power:
Power supply:
Power consumption:
Ambient temperature t
Degree of protection:
Protection class:
Dimensions (LxWxH):
Casing:
Weight:
Screw terminals for lead cross section:
Messbereich Lichtsensor:
PIR-Detektionsbereich:
Erfassungsbereich bei 20 °C / Detection range at 20 °C
SERVICE
Vossloh-Schwabe Deutschland GmbH
Wasenstraße 25
D-73660 Urbach, Germany
Phone: +49 (0)7181 8002-0
info.vsv@vossloh-schwabe.com
For further information please visit our website: www.vossloh-schwabe.com
7–10
1 mm²
180 m (6.2 Ω max.)
iOS
version 10 and higher
iOS
version 10 and higher
version 10 and higher
:
a
0.75 mm²
130 m (6.2 Ω max.)
Ref. No..: 186800
Blu2Light mesh network
2402–2480 MHz
< 10 mW EIRP
via DALI bus
max. 0.24 W (max. 15 mA at 16 V)
0–50 °C
IP20
II
103 x 36 x 31.5 mm
Plastics, white
40 g
0.75–2.5 mm²
0–1000 lx, V(λ) compensated
0.1 up to max. 12 m (temperature dependent)
103
0.5 mm²
80 m (6.2 Ω max.)
Android
version 5.0 or higher
version 5.0 or higher
1,3 33,2 1,3
