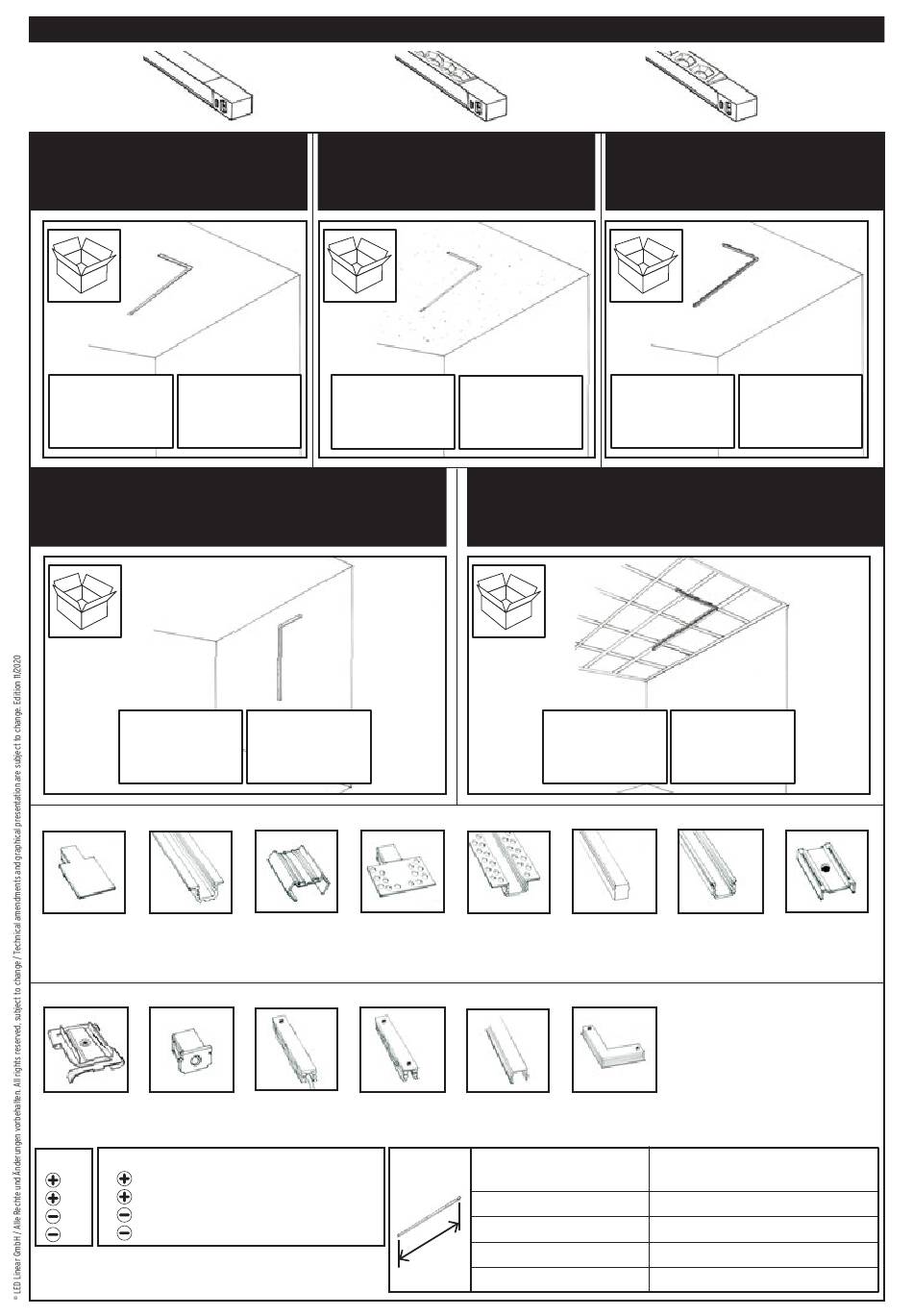

LED Linear ULTIMA-T TRACK IP40 Montageanleitung Seite 3

OPAL
EINBAU MIT PROFIL 1.1–1.36
RECESSED WITH PROFILE
Erforderliches Zubehör Optionales Zubehör
Required accessories Optional accessories
ABCK
ANBAU OHNE CLIP 4.1–4.38
SURFACE MOUNTED WITHOUT CLIP
Erforderliches Zubehör
Required accessories
GJK
A B
Endkappenset | Endcap Set Schwarz | Black
Schwarz | Black Art. # 16000343-SCH-2m
Art. # 13000388-SCH Art. # 16000343-SCH-4m
Weiß | White Weiß | White
Art. # 13000388-W Art. # 16000343-W-2m
Art. # 16000343-W-4m
I J
Clipset (10 Stk.) | Clip Set (10 Pc.) Endkappenset | Endcap Set
Schwarz | Black Schwarz | Black
Art. # 13000391-SCH Art. # 13000383-SCH
Weiß | White Weiß | White
Art. # 13000391-W Art. # 13000383-W
IQW
MONO
1 WEISS | WHITE
1
2 2 ROT | RED
3 3 GRÜN | GREEN
4 BLAU | BLUE
4
15° | 25° | 40° | 60° | BW
EINBAUPROFIL PUTZ 2.1–2.39
RECESSED PROFILE PLASTERING
Erforderliches Zubehör
Required accessories
LMN
DEFK
Optionales Zubehör
Optional accessories
LMN
C
Clipset (10 Stk.)| Clip Set (10 Pc.) Endkappenset |
Schwarz | Black Schwarz |
Art. # 13000392-SCH Art. # 13000389-SCH
Weiß | White Weiß |
Art. # 13000392-W Art. # 13000389-W
K
Schwarz | Black Schwarz |
Art. # 13000384-SCH Art. # 13000386-SCH
Weiß | White Weiß |
Art. # 13000384-W Art. # 13000386-W
WARM WEISS | WARM WHITE
KALT WEISS | COLD WHITE
Optionales Zubehör
Optional accessories
LMN
ANBAU MIT CLIP RASTERDECKE 5.1–5.39
SURFACE MOUNTED WITH CLIP GRID CEILING
Erforderliches Zubehör
Required accessories
D E
Endcap Set Schwarz | Black
Black Art. # 16000344-SCH-2m
Art. # 16000344-SCH-4m
White Weiß | White
Art. # 16000344-W-2m
Art. # 16000344-W-4m
L M
Black Schwarz | Black
Art. # 12000065-SCH
White Weiß | White
Art. # 12000065-W
Länge der Profile (mm)
Length of profiles (feet)
0 – 1000 | 0 – 3,28
1001 – 2000 | 3,28 – 6,56
2001 – 3000 | 6,56 – 9,84
3001 – 4000 | 9,84 – 13,12
AS
ANBAU MIT CLIP 3.1 – 3.39
SURFACE MOUNTED WITH CLIP
Erforderliches Zubehör
Required accessories Optional accessories
GHJK
Optionales Zubehör
Optional accessories
GIJK LMN
F G
Art. # 10000601 Schwarz | Black
Art. # 16000342-SCH-2m
Art. # 16000342-SCH-4m
Weiß | White
Art. # 16000342-W-2m
Art. # 16000342-W-4m
N
Schwarz | Black
Art. # 13000385-SCH
Weiß | White
Art. # 13000385-W
Anzahl der Befestigungen
Number of mounting accessories
12
Optionales Zubehör
LMN
H
Clipset (10 Stk.) | Clip Set (10 Pc.)
Schwarz | Black
Art. # 13000390-SCH
Weiß | White
Art. # 13000390-W
3
6
9
