Safety notes
The Blu2Light products may only be installed and commissioned by authorised specialists. Read
these instructions carefully before installing and commissioning the system. This is the only way to
ensure safe and correct handling. Keep this manual in a safe place so that it may be available at a
later date. Before any work is carried out on the equipment, it must be disconnected from the supply
voltage. The applicable safety and accident prevention regulations must be observed. Improper
opening of the products is not permitted, there is a danger to life due to electrical voltage. Repairs
may only be carried out by the manufacturer. Connecting external voltage to the push-button inputs
(D1/D2) or to the 12V supply, e.g. 230V mains voltage, will destroy the products.
Bluetooth
wireless technology
®
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by Vossloh-Schwabe is under license. Other trademarks
and trade names are those of their respective owners.
We, Vossloh-Schwabe Deutschland GmbH, herewith confirm that these devices comply with the
basic requirements of the directive 2014/53 / EU and other relevant directives. The entire text of the
declaration of conformity can be obtained from the following address: www.vossloh-schwabe.com
Power supply
This product does not contain its own power supply and is powered by 12-24VDC SELV power
supplies. A suitable 12V power supply is included.
Overvoltage protection of the 12V interface and inputs
Connecting higher voltages than 24VDC will destroy the products. Operation with voltages < 12VDC /
> 24VDC or 230VAC is generally not permitted!

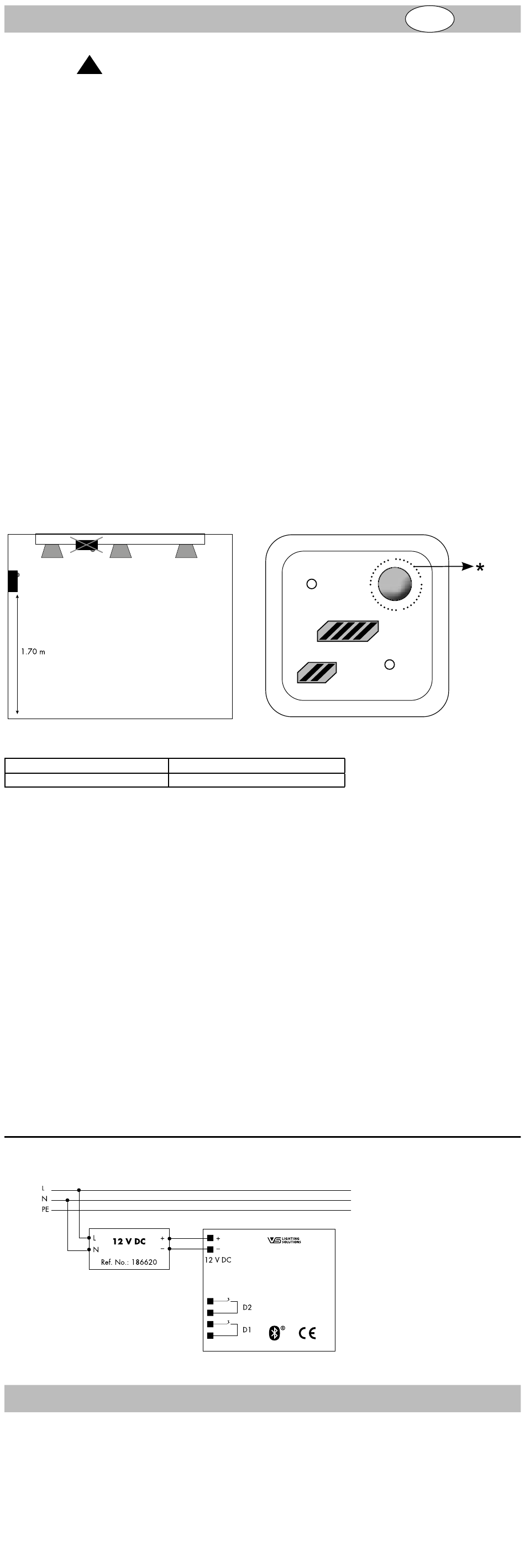

Assembly
•
Wall mounting recommended, the recommended mounting height is 1.70 m, the motion detector
must be at the top right corner*.
•
We do not recommend mounting in the ceiling.
•
The maximum total cable length per input (D1 and D2) must not exceed 25 m.
•
The external contacts on D1 and D2 must be able to switch a basic isolated voltage of 30 V / 10
mA DC, be self-cleaning at 16 V and potential-free.
App operating mode and operating devices
LiNA Connect configuration
Tablet
Technical Notes
Blu2Light MultiSensor AIR Ref.-No.: 186954
Communication: Blu2Light mesh network
Frequency range: 2402–2480 MHz
Output power: < 10 mW EIRP
Power supply: 12 V DC
Power consumption stand-by / operation: < 1 W
Ambient temperature ta: 0–45 °C
IP protection: IP20
Dimensions: 80 x 80 x 30 mm (LxWxH)
Housing: plastics, white
Weight: 42 g
Push-in terminals for cross section: 0.5–1.5 mm²
Recommended installation height: 1.70 m
Measuring range light sensor: 0–1000 lx, V(λ) compensated
PIR detection range: max. 5.7 m
Measuring range CO
Measuring range temperature sensor: 0-45 °C
Measuring range humidity: 5-95 % (non-condensing)
Schaltbild / Wiring diagram
Service
Vossloh-Schwabe Deutschland GmbH
Wasenstraße 25
D-73660 Urbach, Germany
Phone: +49 (0)7181 8002-0
info.vsv@vossloh-schwabe.com
For further information please visit our website: www.vossloh-schwabe.com
Version 10 and higher
sensor: 400-10.000 ppm
2
iOS
Blu2Light
MultiSensor AIR
Ref. No.: 186954
Made in Germany
