After installed ABIT's motherboard designed with µGuru Technology and the Windows operating system,
you may start to connect with your PC system. Remember to power off your PC first.

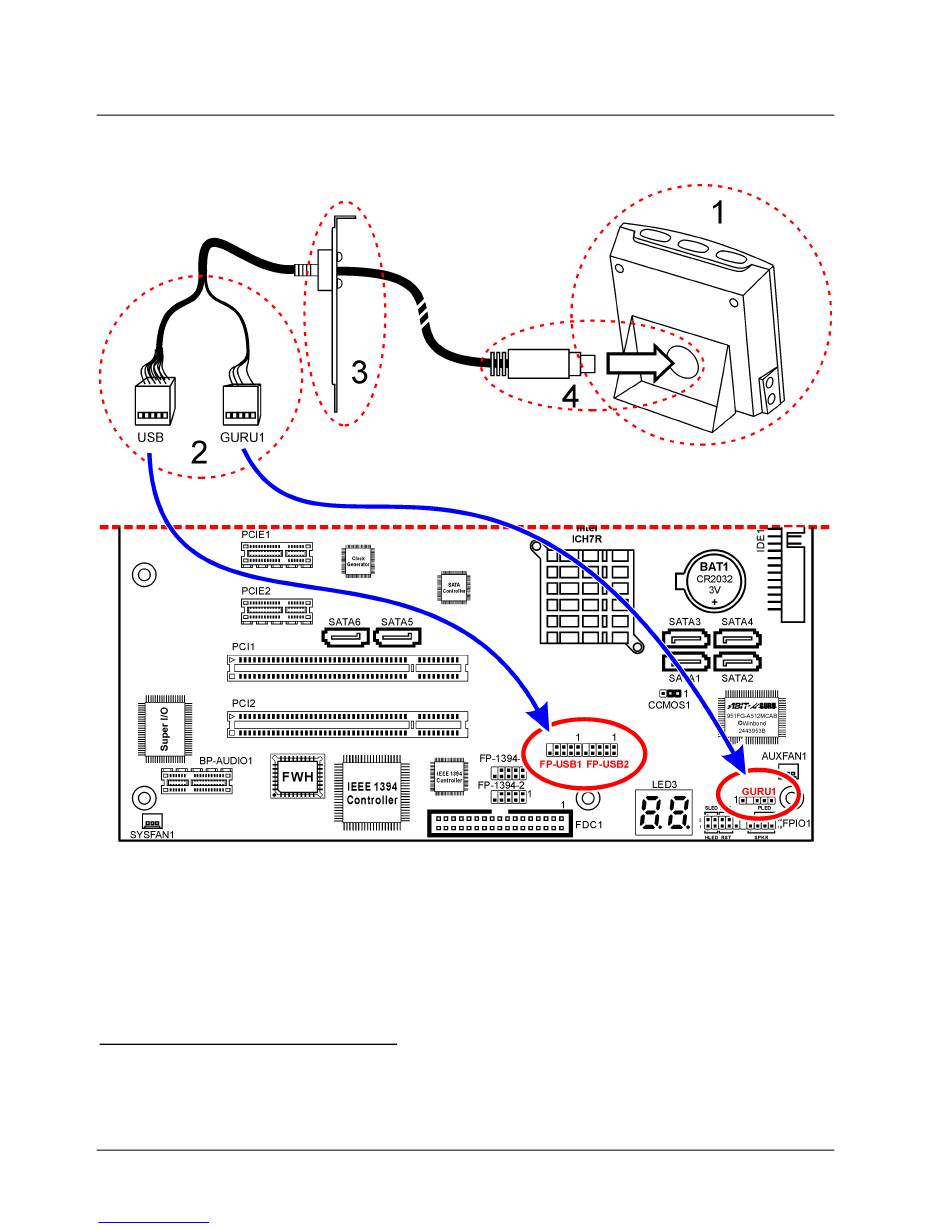

1. Assemble the Guru Clock body with its back-support together.
2. Uncover PC chassis. Connect [GURU1] plug to the [Guru 1] header on motherboard. Connect [USB]
plug to either [FP-USB1] or [FP-USB2] header on motherboard.
3. Secure the I/O shield to the PC chassis's rear panel. Cover PC chassis.
4. Insert the data plug (9-pin Mini-Din) into the socket located through the back-support.
is now ready to serve.
1
All plugs fit in one direction only with their corresponding headers or socket. Please check the orientation first before
connection.
2
This data plug can be connected or disconnected while your PC system is on.
2
