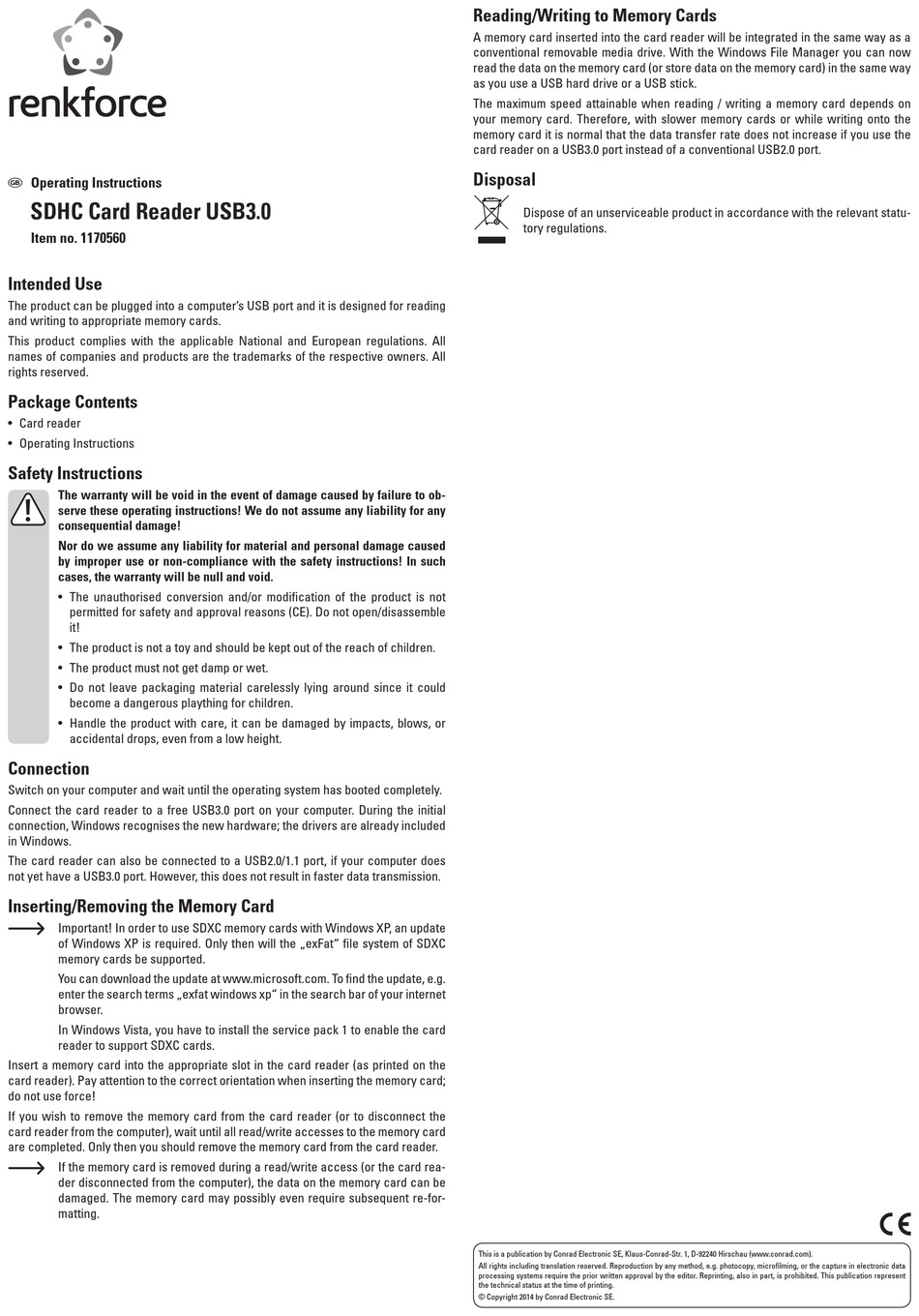

G Operating Instructions
SDHC Card Reader USB3.0
Item no. 1170560
Intended Use
The product can be plugged into a computer's USB port and it is designed for reading
and writing to appropriate memory cards.
This product complies with the applicable National and European regulations. All
names of companies and products are the trademarks of the respective owners. All
rights reserved.
Package Contents
• Card reader
• Operating Instructions
Safety Instructions
T he warranty will be void in the event of damage caused by failure to ob-
serve these operating instructions! We do not assume any liability for any
consequential damage!
N or do we assume any liability for material and personal damage caused
by improper use or non-compliance with the safety instructions! In such
cases, the warranty will be null and void.
• The unauthorised conversion and/or modification of the product is not
permitted for safety and approval reasons (CE). Do not open/disassemble
it!
• The product is not a toy and should be kept out of the reach of children.
• The product must not get damp or wet.
• Do not leave packaging material carelessly lying around since it could
become a dangerous plaything for children.
• Handle the product with care, it can be damaged by impacts, blows, or
accidental drops, even from a low height.
Connection
Switch on your computer and wait until the operating system has booted completely.
Connect the card reader to a free USB3.0 port on your computer. During the initial
connection, Windows recognises the new hardware; the drivers are already included
in Windows.
The card reader can also be connected to a USB2.0/1.1 port, if your computer does
not yet have a USB3.0 port. However, this does not result in faster data transmission.
Inserting/Removing the Memory Card
Important! In order to use SDXC memory cards with Windows XP, an update
of Windows XP is required. Only then will the „exFat" file system of SDXC
memory cards be supported.
You can download the update at www.microsoft.com. To find the update, e.g.
enter the search terms „exfat windows xp" in the search bar of your internet
browser.
In Windows Vista, you have to install the service pack 1 to enable the card
reader to support SDXC cards.
Insert a memory card into the appropriate slot in the card reader (as printed on the
card reader). Pay attention to the correct orientation when inserting the memory card;
do not use force!
If you wish to remove the memory card from the card reader (or to disconnect the
card reader from the computer), wait until all read/write accesses to the memory card
are completed. Only then you should remove the memory card from the card reader.
If the memory card is removed during a read/write access (or the card rea-
der disconnected from the computer), the data on the memory card can be
damaged. The memory card may possibly even require subsequent re-for-
matting.
Reading/Writing to Memory Cards
A memory card inserted into the card reader will be integrated in the same way as a
conventional removable media drive. With the Windows File Manager you can now
read the data on the memory card (or store data on the memory card) in the same way
as you use a USB hard drive or a USB stick.
The maximum speed attainable when reading / writing a memory card depends on
your memory card. Therefore, with slower memory cards or while writing onto the
memory card it is normal that the data transfer rate does not increase if you use the
card reader on a USB3.0 port instead of a conventional USB2.0 port.
Disposal
Dispose of an unserviceable product in accordance with the relevant statu-
tory regulations.
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent
the technical status at the time of printing.
© Copyright 2014 by Conrad Electronic SE.
