ETI 814-075 Raytemp 6 Operating Instructions

RAYTEMP 6
®
Infrared Thermometer
Operating Instructions
Product code:
814-075

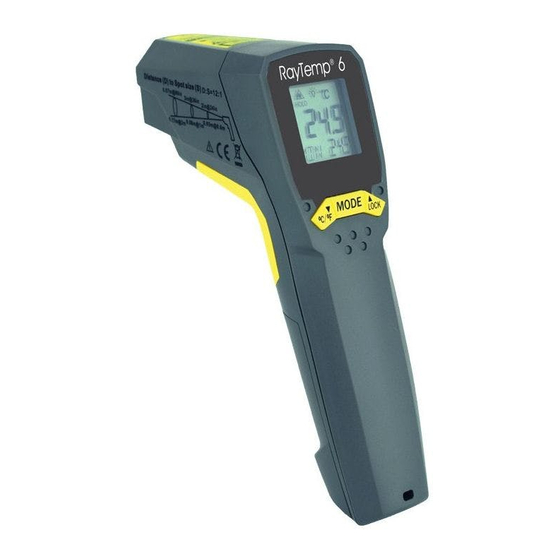

INSTRUMENT OPERATION - Simply aim the RayTemp 6 Infrared (IR) thermometer at
the target and press the trigger to measure the surface temperature. When the trigger is
released the reading is automatically held for 60 seconds and 'HOLD' will be displayed, after
which the thermometer will shut down.
MEASUREMENT ZONE/TARGET DISTANCE - The measurement zone is proportional to the
distance the RayTemp is away from the target. The RayTemp 6 is equipped with a 12:1 lens. If
the target is 60 cm (24") away the measurement zone will be 5 cm (2") across.
EMISSIVITY - The RayTemp 6 has a default emissivity of 0.95 but is adjustable from 0.10 to
1.00. The closer the emissivity value is set to the actual emissivity value of the object being
measured, the more accurate the readings will be. To adjust the emissivity press the MODE
button so that 'E' is displayed, press the button again so that ' ' is displayed. Use the UP
and DOWN buttons to set the emissivity required pressing the MODE button to set.
Please note: non-contact infrared thermometers are not recommended for use in
measuring shiny or polished surfaces.
LASER POINTER - The circular laser function can be turned on or off by pressing the trigger
and simultaneously pressing the °C/°F button whilst the trigger is being pressed. The laser
icon ' ' will be shown to indicate on or off. The centre of the measurement zone is 14 mm
(approximately ½ ") above the lowest laser dot with the instrument held in a horizontal
position. For safety, the laser pointer will only activate when the trigger button is pressed.
The laser module is a Class 3 device that has a maximum power output of less than 5 mW at
a wavelength of 660 nm. Prolonged, continuous exposure, such as staring at the beam, can
be harmful and should be avoided. DO NOT look at the beam of any optical instrument.
LCD BACKLIGHT - The LCD backlight function can be turned on or off by pressing the
trigger and simultaneously pressing the LOCK button. The backlight icon ' ' will be shown
to indicate on or off.
UNDER RANGE/OVER RANGE - If the measured temperature goes below or above the
range of the instrument, 'Er' will be displayed. When the measured temperature returns
within the range of the instrument, readings will automatically be displayed.
MAXIMUM, MINIMUM, DIFFERENTIAL & AVERAGE - To access the maximum reading, press
the MODE button until 'MAX' is displayed. To access the minimum reading, press the MODE
button again until 'MIN' is displayed. To access the differential reading, press the MODE
button until 'dIF' is displayed. To access the average reading, press the MODE button again
until 'AVG' is displayed. Maximum and minimum, differential and average readings will be
reset when the instrument is turned off.
Supplied by
°C/°F - Press the °C/°F button without pressing the trigger until the °C or °F scale changes.
Electronic Temperature Instruments Ltd
Please note: when the unit is next turned on, it will default to the last selected scale.
Worthing · West Sussex · BN14 8HQ
01903 202151 · sales@etiltd.com · etiltd.com
814-075/24.10.18
