Installation in Masonry
1.

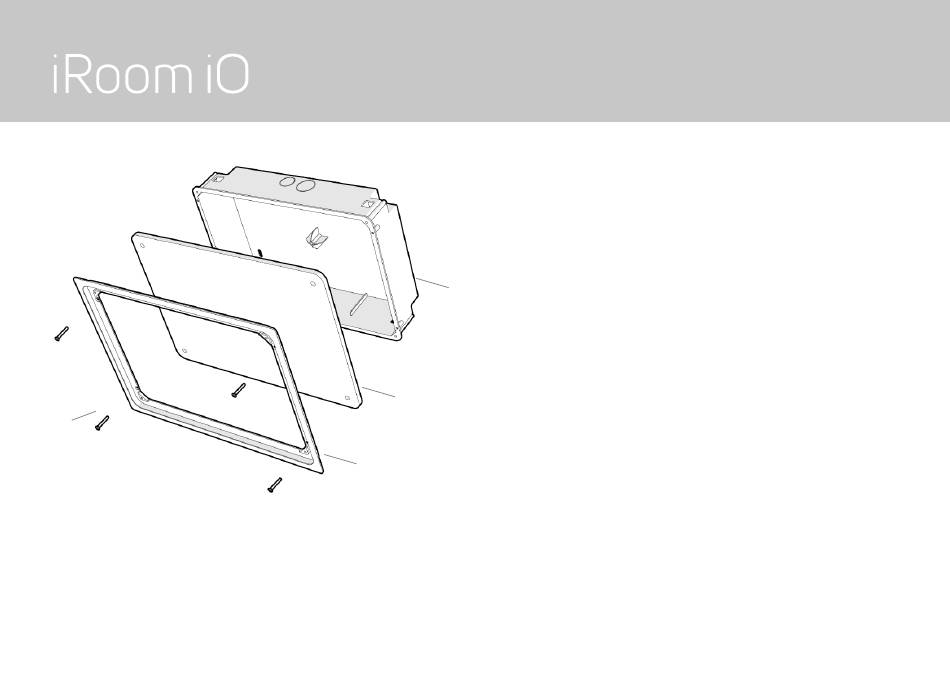

Attach the cardboard frame (4) to the back box (3) and
bolt them together with the included mounting screws (1)
(3 x 20mm)
2.
Prepare a recess in the wall. You will find the cut-out dimensions
for your fixDock model on page 6.
3.
Remove the break-out for the cable exits on the back box
4.
Feed in the power leads through the hole in the back box. Use a
suitable cable grip sleeve.
5.
Place the back box in the recess. Do not deform the
back box.
6.
Plaster in the back box and ensure a straight, flush wall and dis-
tortion-free installation of the back box. Otherwise it may cause
mechanical problems.
7.
After finishing plasterwork and wall finishing remove the card-
board frame and attach the aluminum frame (2)!
Page 6
