CHANGING MODULES

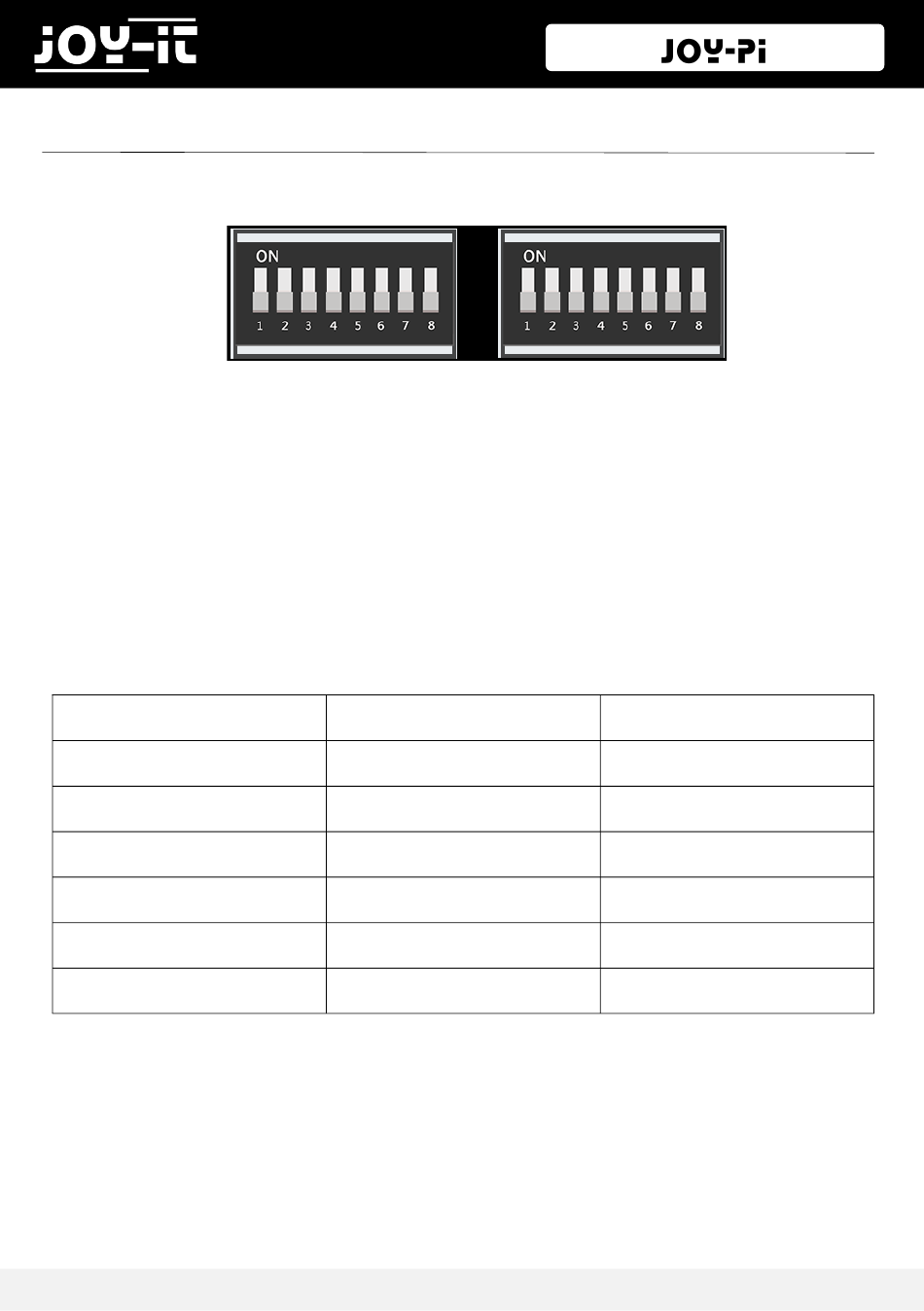

The JoyPi board contains 2 switching units. Each unit contains 8 switches. The switches
make it possible to switch between the use of sensors and modules.
Since the Raspberry Pi has only a limited number of GPIO pins, we need the switches to
be able to use more sensors.
Switches must be used for the following modules:
Sensors / Modules
Keyarray
Independent Keys
Vibration modul
Tilt sensor

Stepper motor

Servo motor
Published: 29.10.2018
Switching Unit
Left
Left
Right
Right
Right
Right
Switches
1 - 8
1 - 8
1
2
3, 4, 5, 6
7, 8
Copyright by Joy-IT
