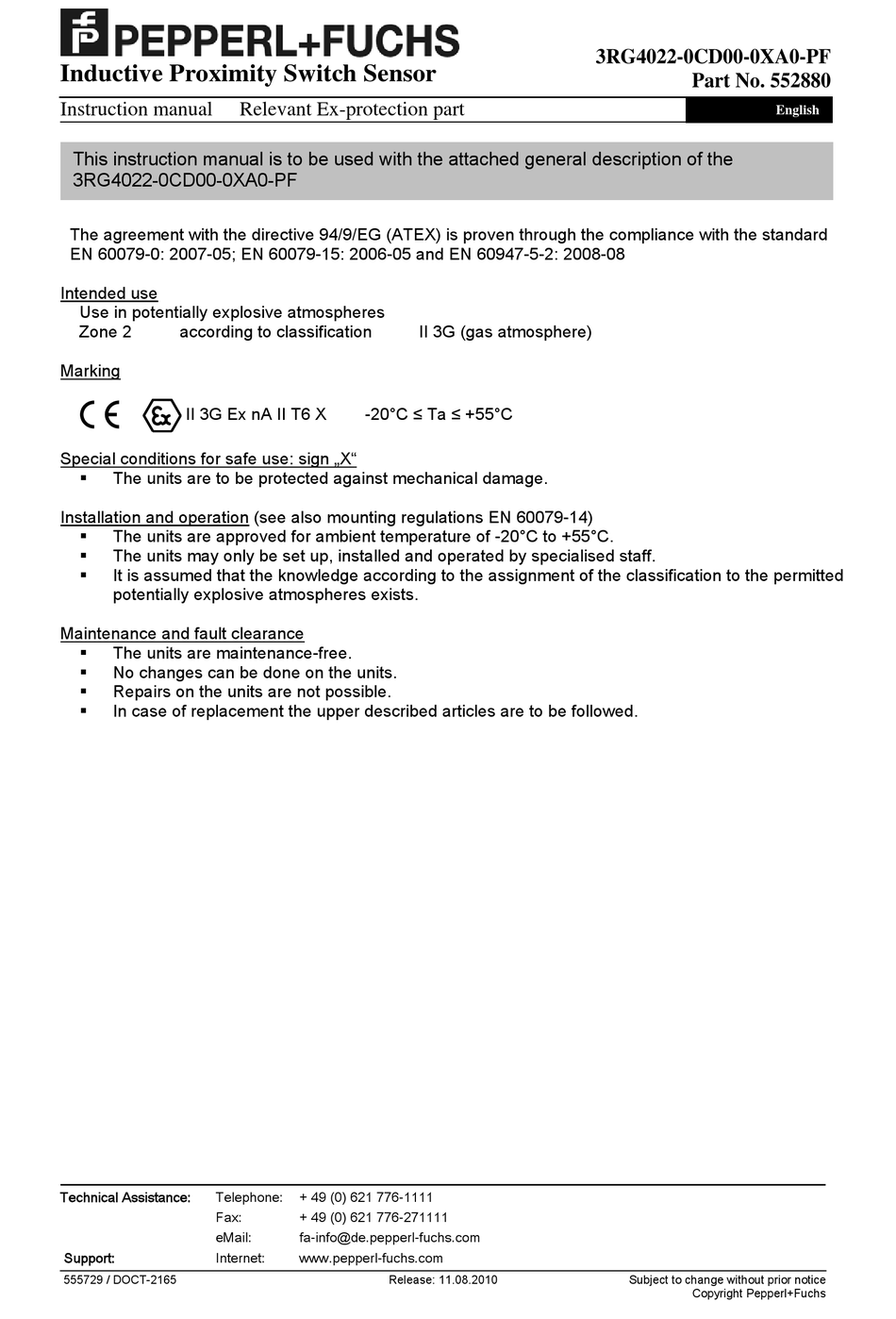

Inductive Proximity Switch Sensor
Instruction manual
This instruction manual is to be used with the attached general description of the
3RG4022-0CD00-0XA0-PF
The agreement with the directive 94/9/EG (ATEX) is proven through the compliance with the standard
EN 60079-0: 2007-05; EN 60079-15: 2006-05 and EN 60947-5-2: 2008-08
Intended use
Use in potentially explosive atmospheres
Zone 2
according to classification
Marking
II 3G Ex nA II T6 X
Special conditions for safe use: sign „X"
The units are to be protected against mechanical damage.
Installation and operation (see also mounting regulations EN 60079-14)
The units are approved for ambient temperature of -20°C to +55°C.
The units may only be set up, installed and operated by specialised staff.
It is assumed that the knowledge according to the assignment of the classification to the permitted
potentially explosive atmospheres exists.
Maintenance and fault clearance
The units are maintenance-free.
No changes can be done on the units.
Repairs on the units are not possible.
In case of replacement the upper described articles are to be followed.
Technical Assistance:
Telephone:
Fax:
eMail:
Support:
Internet:
555729 / DOCT-2165
Relevant Ex-protection part
-20°C ≤ Ta ≤ +55°C
+ 49 (0) 621 776-1111
+ 49 (0) 621 776-271111
fa-info@de.pepperl-fuchs.com
www.pepperl-fuchs.com
Release: 11.08.2010
II 3G (gas atmosphere)
3RG4022-0CD00-0XA0-PF
Part No. 552880
Subject to change without prior notice
Copyright Pepperl+Fuchs
English
