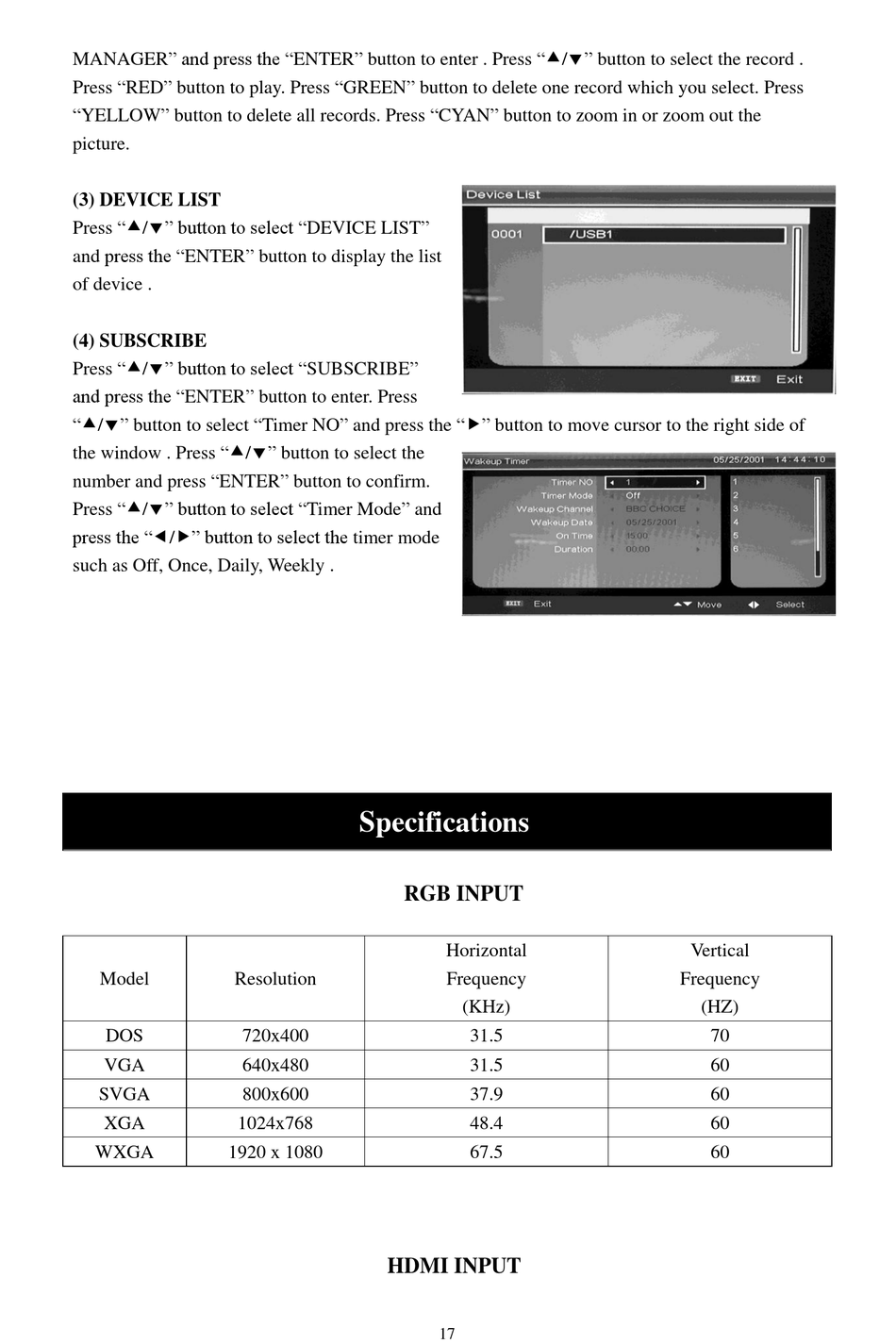

MANAGER" and press the "ENTER" button to enter . Press "/" button to select the record .
Press "RED" button to play. Press "GREEN" button to delete one record which you select. Press
"YELLOW" button to delete all records. Press "CYAN" button to zoom in or zoom out the
picture.
(3) DEVICE LIST
Press "/" button to select "DEVICE LIST"
and press the "ENTER" button to display the list
of device .
(4) SUBSCRIBE
Press "/" button to select "SUBSCRIBE"
and press the "ENTER" button to enter. Press
"/" button to select "Timer NO" and press the "" button to move cursor to the right side of
the window . Press "/" button to select the
number and press "ENTER" button to confirm.
Press "/" button to select "Timer Mode" and
press the "/" button to select the timer mode
such as Off, Once, Daily, Weekly .
Model Resolution
DOS 720x400
VGA 640x480
SVGA 800x600
XGA 1024x768
WXGA 1920 x 1080

Specifications

RGB INPUT
Horizontal
Frequency
(KHz)
31.5
31.5
37.9
48.4
67.5
HDMI INPUT
17
Vertical
Frequency
(HZ)
70
60
60
60
60
