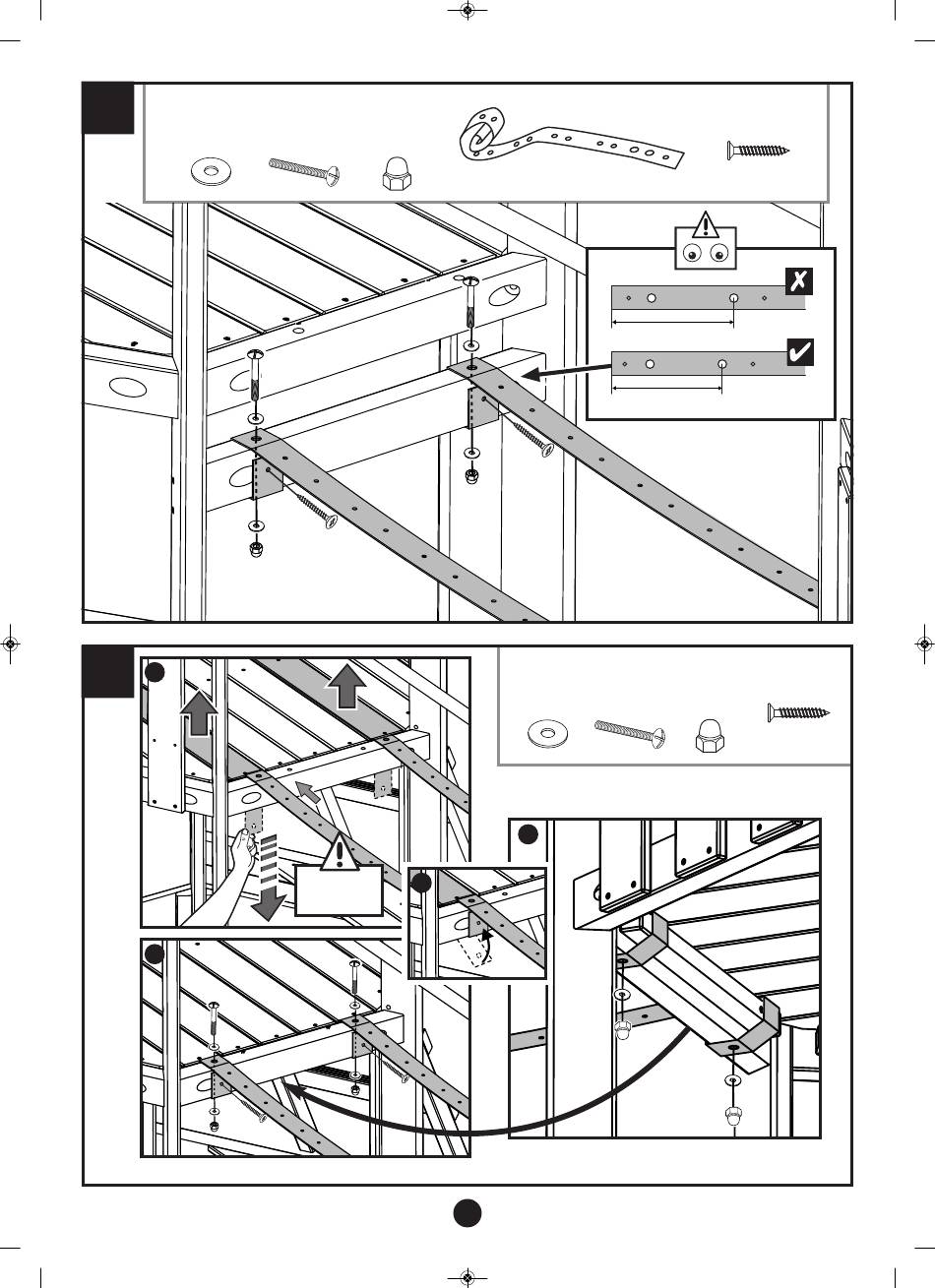

4
FA7184
M8 Washer
(25mm o/dia)
x4
5
1
3
FA6205 FA8163
M8 x 90mm M8 Dome
Bolt Lock Nut
x2 x2
Strong
2
pull force
FC1500
FA7184 FA6205
M8 Washer M8 x 90mm
(25mm o/dia) Bolt
x4 x2
4
9
FA4513
4.5mm x 30mm
x2
Woodscrew
237mm
192mm
FA8163 FA4513
M8 Dome 4.5mm x 30mm
x2
Lock Nut Woodscrew
x2
TP Castlewood Connection Bridge
