Connecting the controller

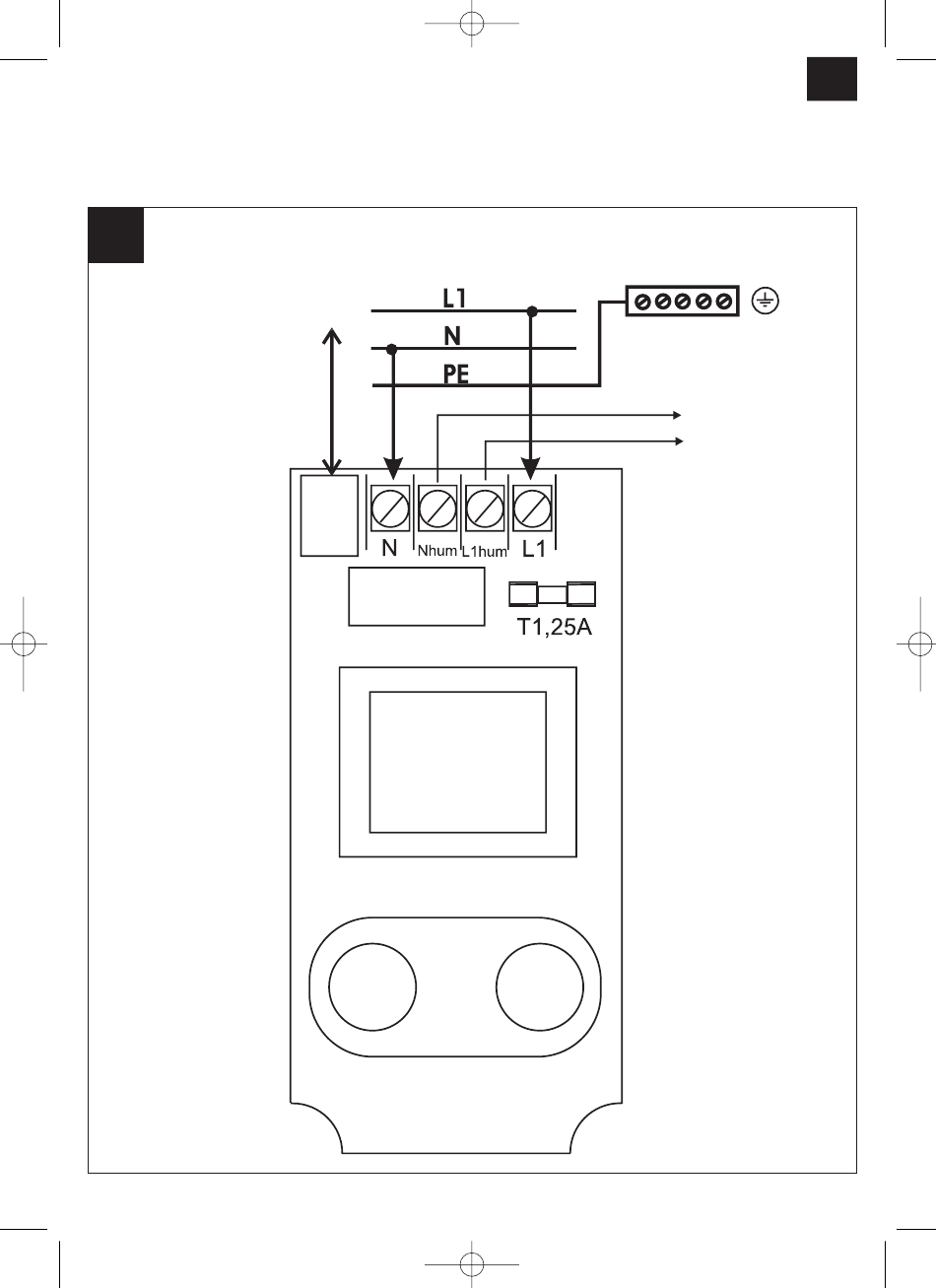

Connect up the stripped individual wires (PE, N, L1)
as shown in the connection diagram.
4
Cable to the
SC10T sauna
controller
13.01.2006 10:00 Uhr
AC 230 V 50 Hz
Seite 9
Lay the information cable through the duct connector
and connect it to the socket-contacts (SC 10 T
„TML 5").
Cable to the
evaporator
