Angle Sensor AS-01
Mounting.
Install the AS-01 sensor so that it moves around the Y axis.
Connecting.
By changing the angle of potential free contact will be active.

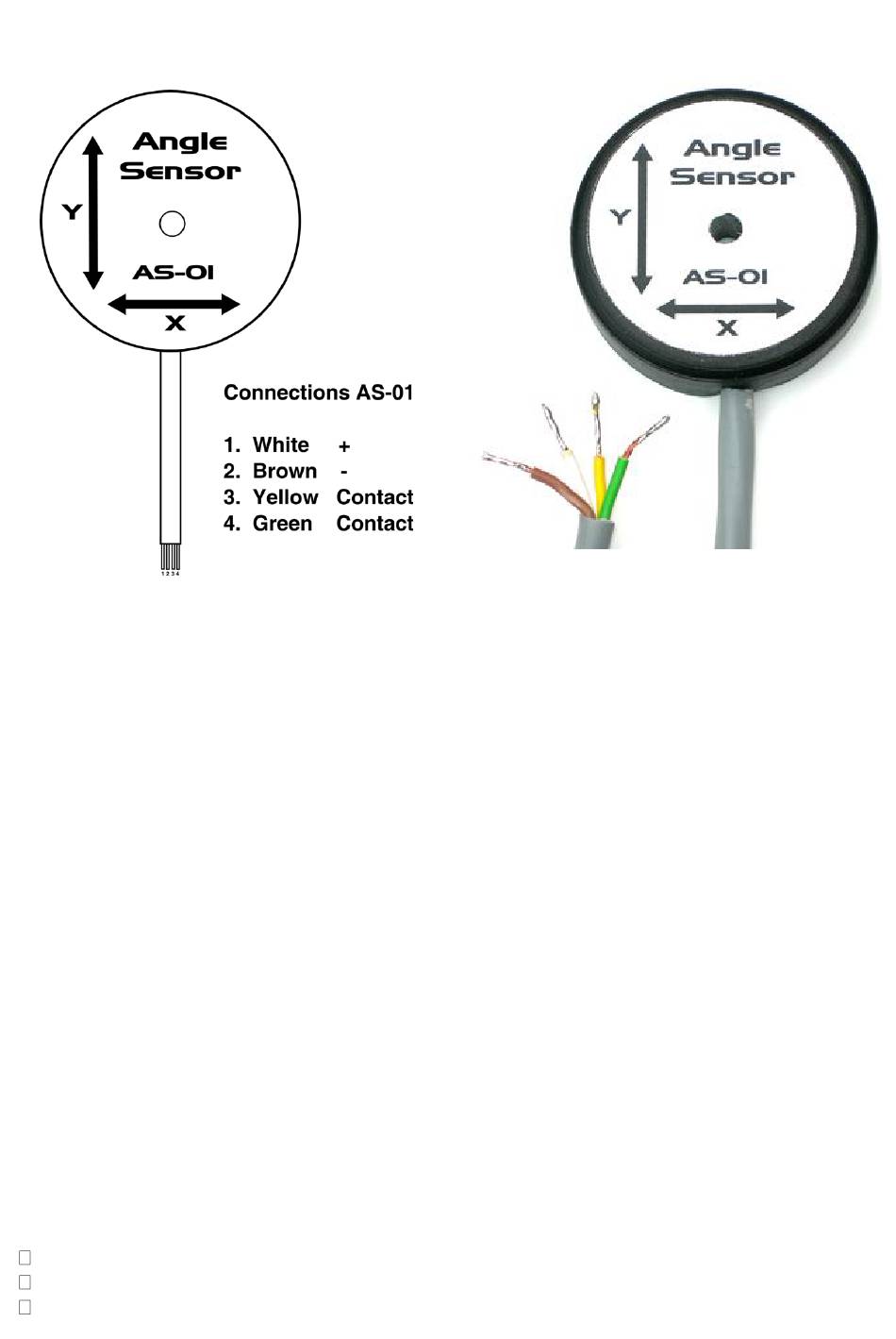

Put the surface where the sensor is mounted in the neutral position. Now connect the white (+) and
brown (-) wire to a constant voltage between 10 and 30 Volts.
After 5 seconds, the sensor is calibrated and ready for use.
When changing the angle the potential free contact will be active.
Specifications.
Voltage:
Current consumption standby:
Current consumption active:
Max. switch current:
Diameter:
Mounting hole:
Active if angle has moved more than:
Active:
X-axis
Y-axis
Z-axis
10-30 V DC
1,3 mA @ 12 Volt
14 mA @ 12 Volt
2 Amp.
ø 52 mm
4,5 mm
40° (Delay: 3 sec.)
