Inhaltszusammenfassung für Lynx HPX-4600

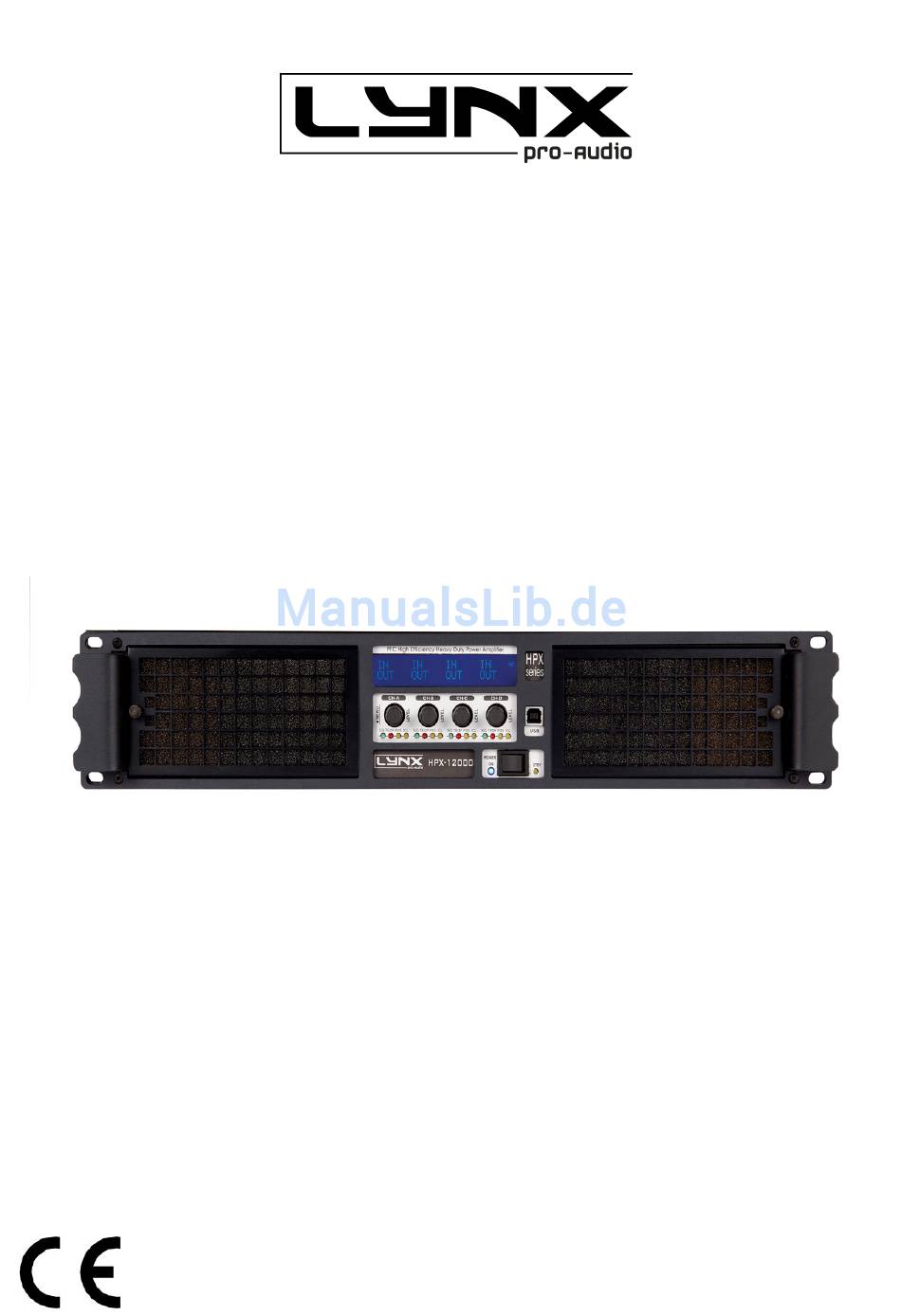

  • Seite 1 HPX Series 4 channels Professional Power Amplifiers OPERATION MANUAL NOTICE D’EMPLOI BEDIENUNGSANLEITUNG Lynx Pro Audio - Spain www.lynxproaudio.com info@lynxproaudio.com...
  • Seite 2: Safety Precautions

    SAFETY PRECAUTIONS SICHERHEITSHINWEISE AVERTISSEMENTS WARNING: ACHTUNG!: RÈGLES DE SÉCURITÉ: CAUTION VORSICHT ATTENTION GEFAHR EINES RISK OF ELECTRIC SHOCK RISQUE DE CHOC ÉLECTRIQUE ELEKTRISCHEN SCHLAGES. DO NOT OPEN NE PAS OUVRIR NICHT ÖFFNEN! To avoid fire or electrocution risk do not expose the unit to rain or moisture.
  • Seite 3: Inhaltsverzeichnis

    4.1 Schutzschaltungssysteme 4 Spécifications 4.2 Data 4.2 Technische Daten 4.1 Systèmes de Protection 4.2 Données téchniques ©2014 by Lynx Pro Audio Pol.Ind. Picassent, Calle 1 46220 Picassent - Valencia - SPAIN Tel: +34 96 110 96 01 http://www.lynxproaudio.com e-mail: info@lynxproaudio.com...
  • Seite 4: General Information

    Allgemeine Informations General Information Anweisungen Générales 1.1 Introduction The HPX amps feature two or four channel models, ready for rough han- dling in the touring world. For this pur- pose, these amplifiers implement over- sized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.
  • Seite 5: Controls: Where And What

    Controls: Lokalisierung der Commandes et Where and What? Funktionen Fonctions 2.1 Front Panel 2.1 Frontplatte 2.1 Panneau Avant See Figure Siehe Fig. Voir Fig. Configuration and signal attenua- Lautstärkeregler: diese ermögli- Configuration et Atténuateurs de tion level control knobs: Permit chen die Signalstärke am Ausgang.
  • Seite 6: Rear Panel

    Controls: Lokalisierung der Commandes et Where and What? Funktionen Fonctions 2.2 Rear Panel 2.2 Rückplatte 2.2 Panneau Arrière See Figure Siehe Fig. Voir Fig. ® ® ® Signal Input: Female Neutrik Eingangssignal: Neutrik -XLR Connecteurs Neutrik XLR (feme- Connectors for the amplifier’s signal Buchsen für den Signaleingang der lle) d’entrée des signaux de modu- input.
  • Seite 7: Installation And Operation

    Installation and Anschluss und Installation et Operation Inbetriebnahme mise en service 3.1 Connections 3.1 Anschlüsse 3.1 Branchement The Power switch must always be on Bevor Sie diese Einheit an eine Veillez à ce que l’interrupteur de mise the “Off” position before plugging the SHUKO-Steckdose anschließen, schal- en service soit en position “Off”...
  • Seite 8: Dual Channel Mode

    Installation and Anschluss und Installation et Operation Inbetriebnahme mise en service The amplifier can operate on three dif- Es gibt drei Funktionsmöglichkeiten die- L’amplificateur peut fonctionner en ferent configurations: DUAL, LINK or ser Endstufe: Dual, Link und Bridge. Die mode stéréo, parallèle ou ponté BRIDGE.
  • Seite 9 Dual Channel 2 Ch models Link Inputs 2 Ch models Bridge Mode 2 Ch models...
  • Seite 10 Dual Channel 4 Channel models Link Inputs 4 Channel models Bridge Mode 4 Channel models Bridge + Dual Mode 3 Channels Mode...
  • Seite 11: Configuration

    Installation and Operation 3.2 Configuration Main Screen: shows the current preset name (“G32dB- Dual-UnLink” as default), and the channel attenuation. As 1-G32dB-Dual-UnLink an option you can show the output VUmeter. The “M” -3dB -6dB appears at the top right corner if the preset has been changed from the last load.
  • Seite 12 Installation and Operation Amplifier Setup: when you are in the Main Menu and access to the Amplifier Setup section, you can change different amplifier parameters, change the current preset and protect the access using a password. The Menu development for this section is the next: Preset Manager: you can change quickly the amplifier preset Preset Manager...
  • Seite 13: Installation Et Mise En Route

    Installation and Anschluss und Installation et Operation Inbetriebnahme mise en route 3.3 Troubleshooting 3.3 Problemlösung 3.3 Dysfonctionnements éventuels In the event of incorrect connection or Sollte sich eine Fehlfunktion ergeben, En cas d’utilisation incorrecte ou de misfunctioning, the amp will activate wird diese durch die LED-Anzeigen auf dysfonctionnement, une ou plusieurs one or more of its LED to warn about...
  • Seite 14: Protection Systems

    Schutzschaltungs- Systèmes de Protection Systems systeme Protection ™ ™ ™ - Power Management System - Power Management System - Power Management System This is a complete set of protections that Vollständiges Set von Schutzfunktionen Ceci est un ensemble complet de protec- monitors the main amp parameters (load das die wichtigsten Endstufenparameter tions qui surveille les paramètres princi-...
  • Seite 15: Technische Spezifikationen

    Technical Technische Specifications Spezifikationen Spécifications 4.2 Data 4.2 Technische Daten 4.2 Données techniques Technical Specifications HPX-4600 HPX-8800 HPX-6400 HPX-12000 Output Power 1kHz, 1.0% THD+N @ 2Ω 4x 2260 W 4x 3025 W @ 4Ω 4x 1150 W 4x 2200 W...
