ZEITRAUM SIMPLE Aufbauanleitung Seite 2

SIMPLE
Assembly Instructions 05/ 2014
TooLS REQUIRED:
Allen screw SW 4/ 5 (enclosed)
Screwdriver size 2

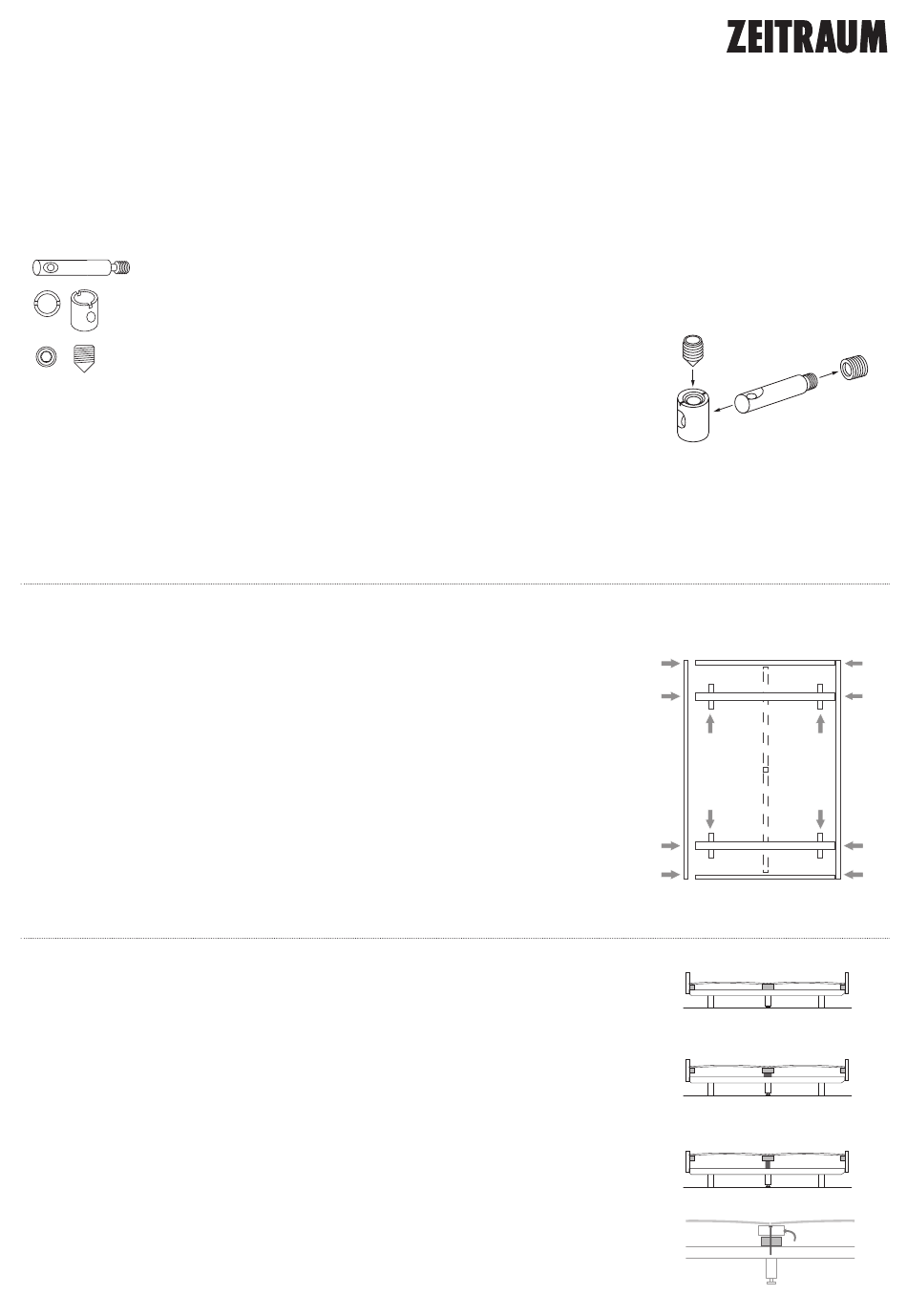

Prior to assembly insert the boxes into headboard parts and foot-end, with longitudi-
nal slot in the direction of the XS bolts. Insert and turn bolts accordingly into sides,
align suitable. The XS bolt must not be tightened to the limit.
ASSEMBLY oF THE BEDFRAME
To fix the connectors please use the grub srews:
1. Connect and fix the headboard part onto the 1st side..
2. Mount the feet to the transverse supports.
3. Slot and fix crosspiece onto sidepiece.
4. Connect and fix foot-end onto side of bed.
5. Fit the second side to the head, foot and transverse pieces.
If you cannot screw in the grub screw flushly, loosen connection and unscrew the XS
bolt slightly. Then connect again.Fix right angles of completely assembled bed and
make sure to tighten all connections once more.
SUPPoRTS FoR SLATTED BASE
Please note that the supports can be fixed at three different heights. Use the
confirmat screws to fix the supports to the side elements. We recommend that the
mattress stands about 2 inches above the bed sides. With mattresses of more than
140cm in width the middle support must be used. If necessary use the distance
piece and the screws for the right height. For Position 2 use the distance piece in flat
direction, for Position 3 rotate the distance piece upright. Afterwards fit the height-
adjustable foot. Please set the hight of the adjustable foot 1-2 cm lower than the
other feet.
ZEITRAUM GmbH · Äußere Münchner Str.2 · D-82515 Wolfratshausen · Tel +49 (0)8171 - 418130 · Fax +49 (0)8171 - 418141 · info@zeitraum-moebel.de · www.zeitraum-moebel.de
8 XS bolts
8 x box
8 x grub screw
25 x Confirmat screws 5 x 70
2 x Screws (5 x 60)
2 x Screws (5 x 80)
Video:
http://www.scheulenburg-direkt.de/index.php?page=content&coID=11
5
5
2
2
5
5
Position 1: no distance piece
Position 2: flat
Position 3: upright
1
3
2
2
3
4
