1
IMPORTANT!
!
PLACE THE BRACKET IN THE
CORRECT PLACE
2.
Slacken the 2 screws of the support jig (pic.2) and remove it from
the back part of the module. Fix it on the wall with nr. 2 screw anchors
(12 mm not supplied) as indicated in the ref.2
3
4. . Screwing the screws as indicated in the picture 4.
22004010 - 05.13

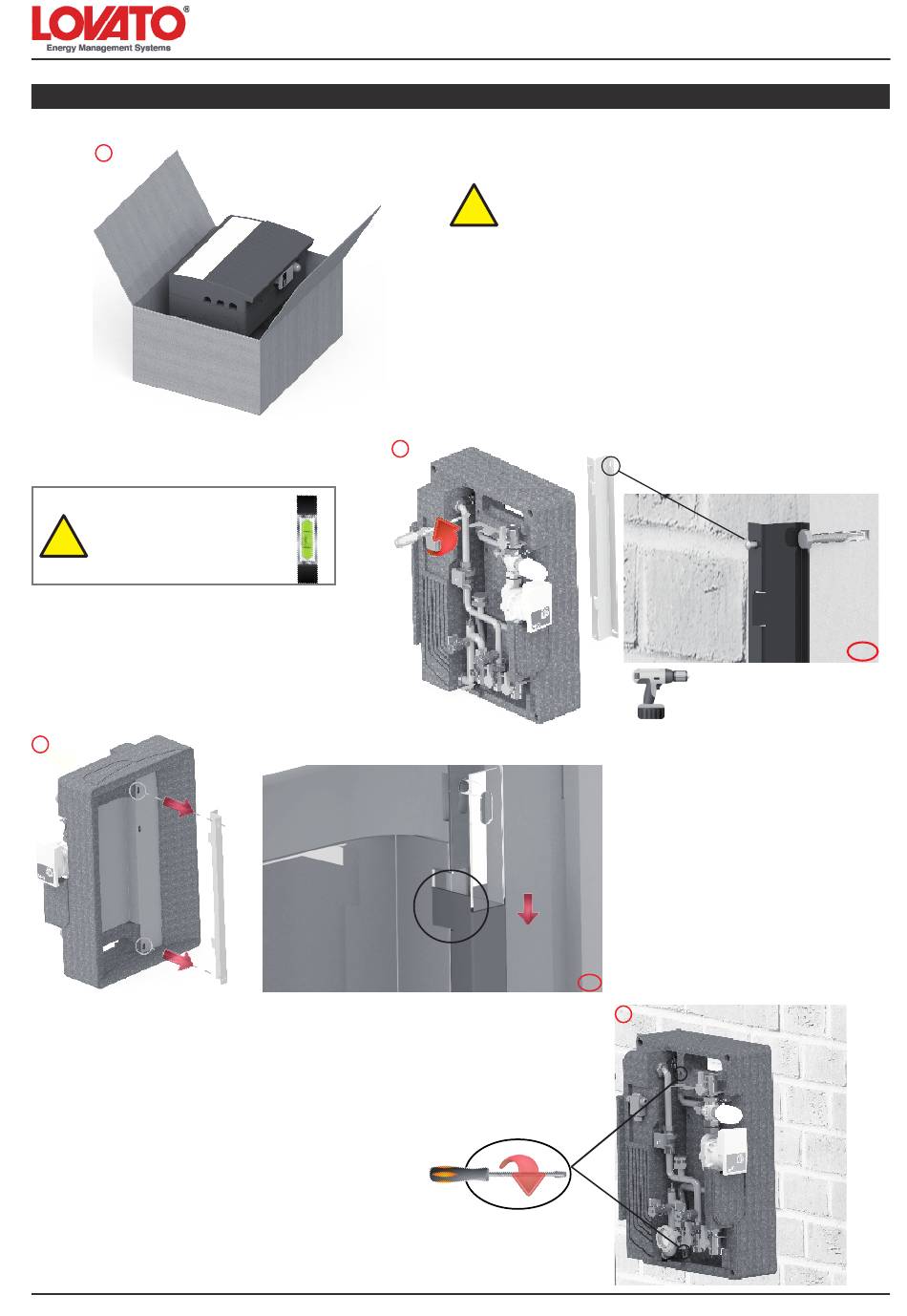

Assembling instructions and maintenance
3. Installation on the wall
ATTENTION!
!
HANDLE IT WITH CARE!
1. Pull out the module from the package and remove the cover.
2
SCREW ANCHORS NOT
SUPPLIED
3. Hook-up the module to the screws. Hook th module up to
the screws of the suppoort jig (see slot on the back) using
the lateral guide as indicated in the picture 3a. Slide down
the module until the complete insertion of the screws in
the slot (pic.3a).
3a
4
2a
15
