Features
• Complies with IEEE 802.3, IEEE 802.3u and 10/100BASE-TX
standards
• RJ-45 port auto-MDI detection and setting
• DIP switch enabled half/full-duplex mode
• Status LEDs for quick and easy network monitoring
• Extended distances up to 2km (6,600 ft) for multi-mode fiber
• External power supply
• FCC Class A & CE approved
General Guide

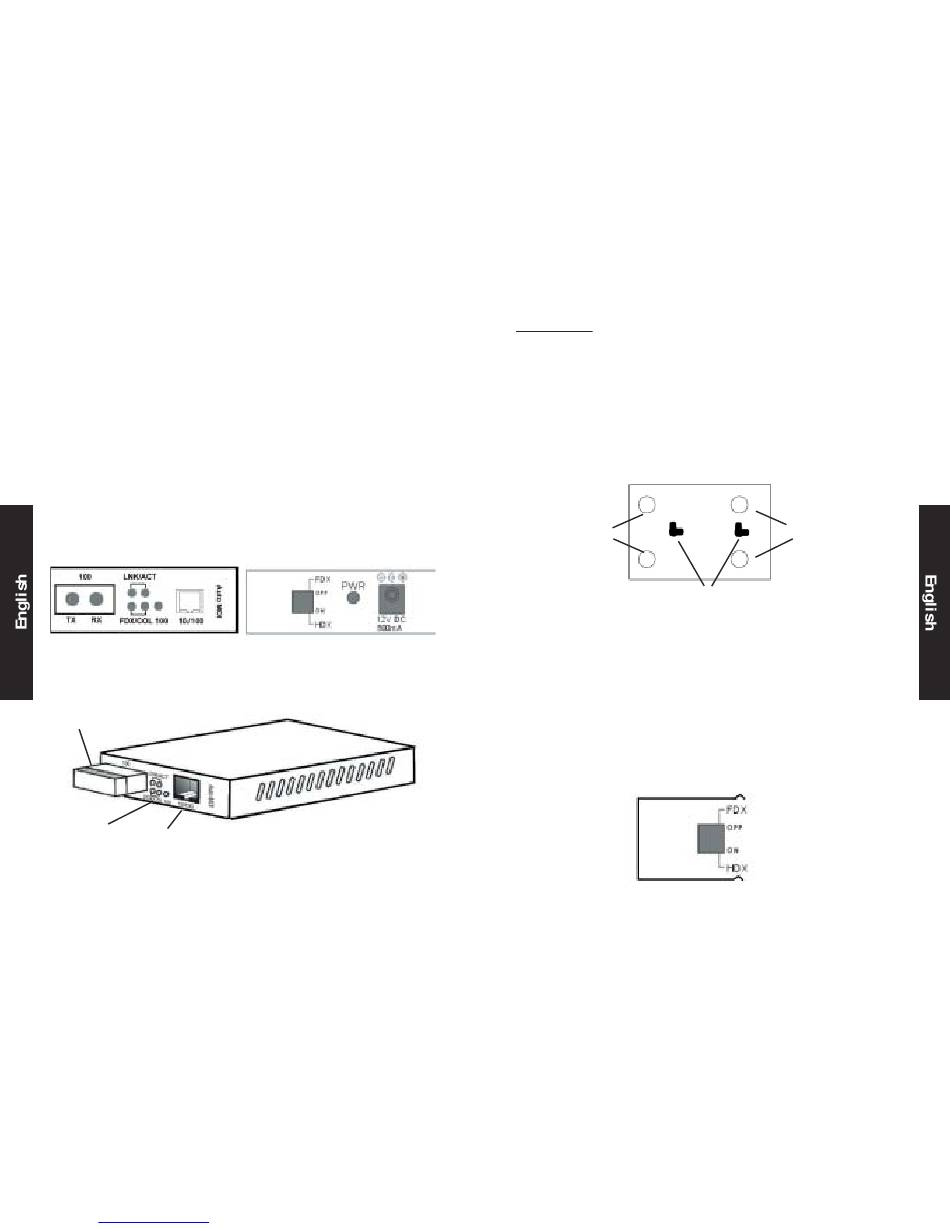

Front Panel View
10/100BASE-TX to 100BASE-FX Media Converter
Fiber optic port
Status LED
indicators
UTP port
(RJ-45)
3
Downloaded from
www.Manualslib.com
Rear Panel View
manuals search engine
Setting Up
1. Installation
There are two options:
• Wall-mount - Insert two screws into the wall-mount hole fixtures
• Desktop - Affix the 4 self-adhesive pads as indicated.
Under Panel View of Unit Housing
Self-adhesive
pads
Holes for wall-mounting
2. Setting Half/Full-duplex
Toggle the DIP switch (located on the rear panel) to set unit to full-
duplex or half-duplex mode as necessary.
• FDX - Enables full-duplex mode
• HDX - Enables half-duplex mode
NOTE: It is possible to change between duplex modes without
disconnecting power or cables.
View of DIP Switch on Rear Panel
Self-adhesive
pads
4
