INSTALLATION

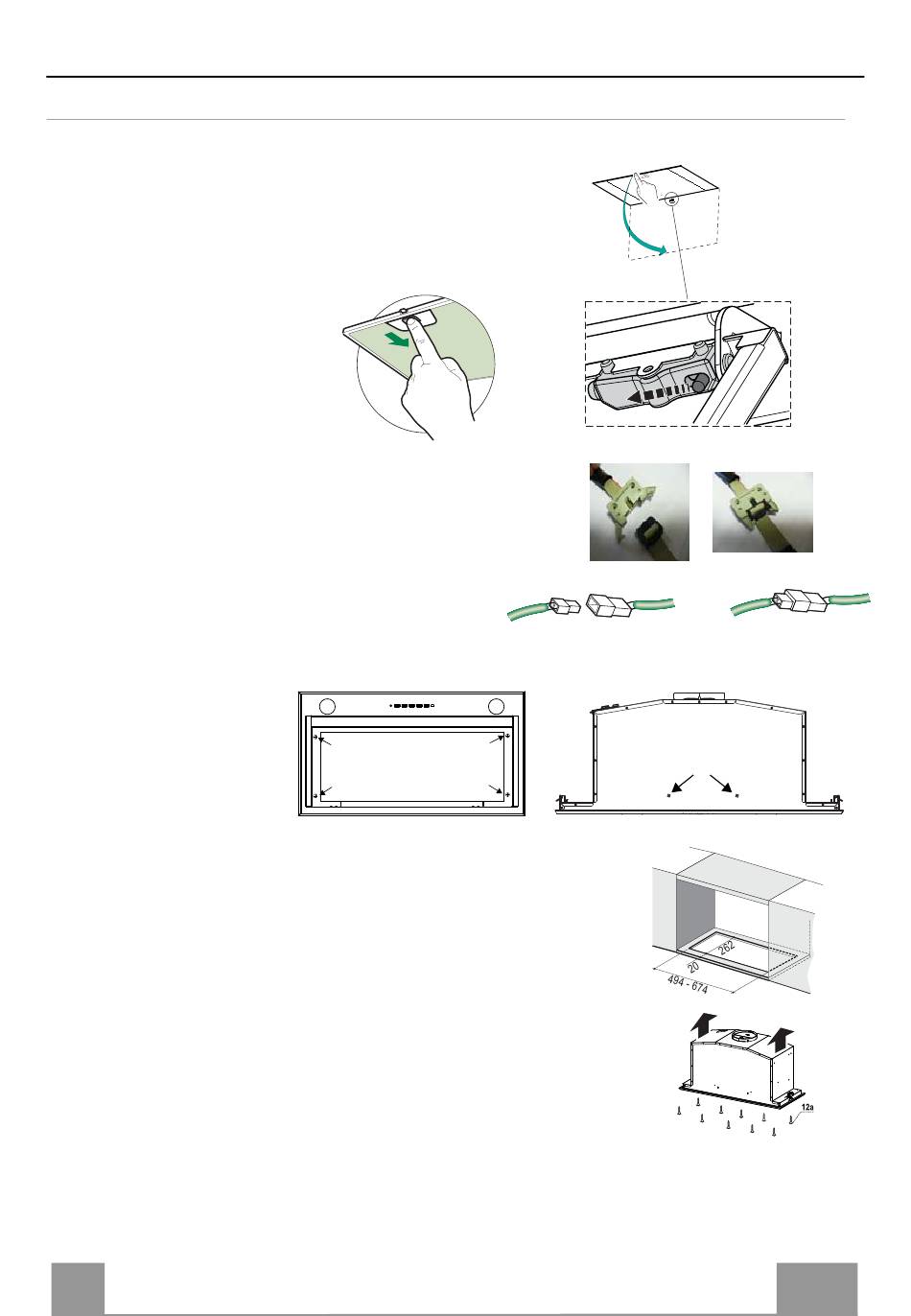

BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:
• Open the Panel by pulling it.
• Remove the filters one by one pushing them towards the
back side of the hood unit and simultaneously pulling
downwards.
• Remove grease filters.
• Disconnect the wires to the Commands at the connectors.
• Disconnect the wires to the Light at the
connectors.
• Remove the frame by
unfastening the 6 screws.
• The Hood can be installed directly on the underside of the wall unit
(Minimum 650 mm from the Cooker Hob).
• Create an opening in the bottom of the wall unit, as shown.
• Fasten using the 10 screws 12a provided.
• Screw the Frame back into place using the 6 screws removed as
described above, reconnect the wires to the Commands and Lights
replace the metal grease filter and close the Panel.
