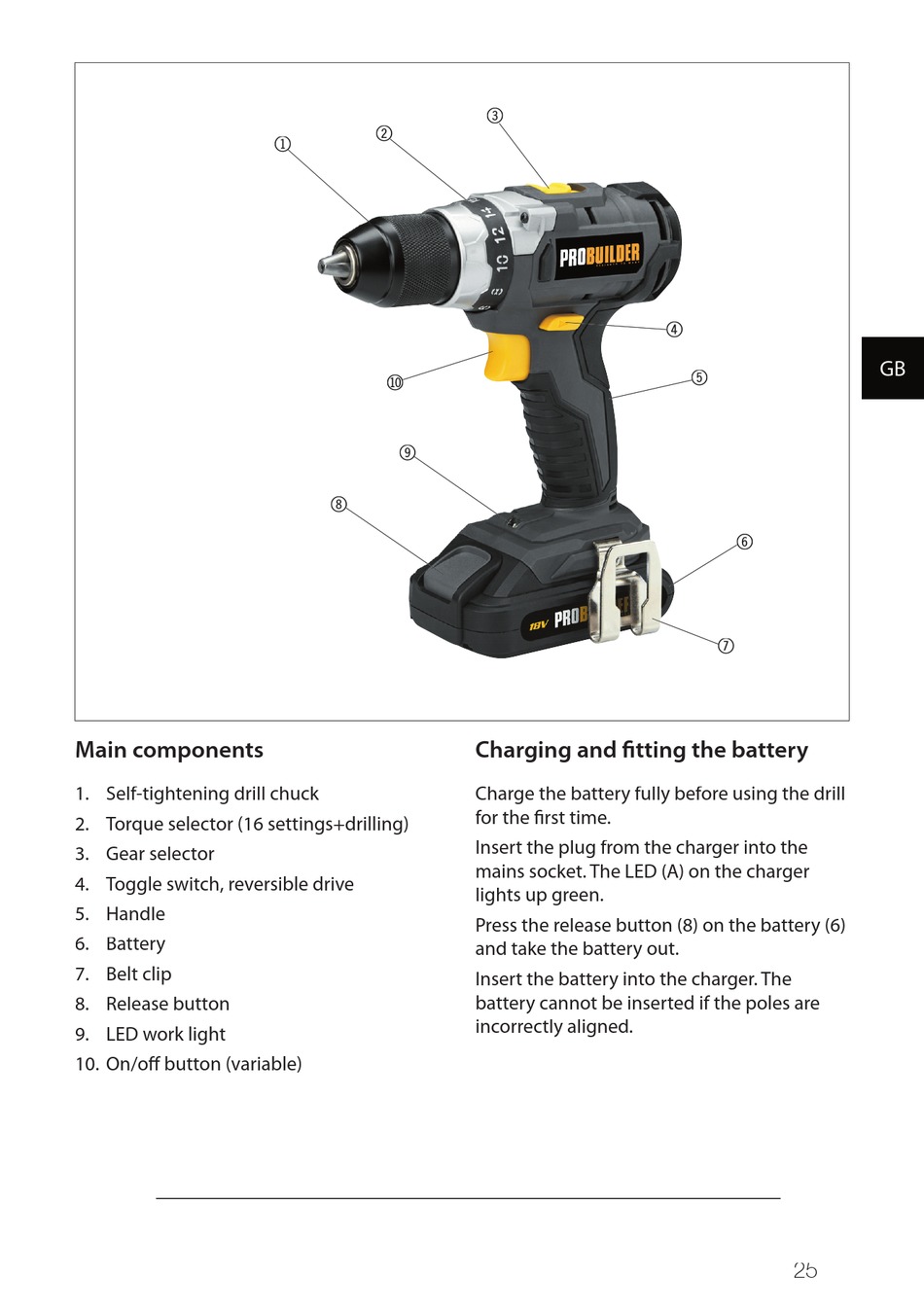

Main components

1. Self-tightening drill chuck
2. Torque selector (16 settings+drilling)
3. Gear selector
4. Toggle switch, reversible drive
5. Handle
6. Battery
7. Belt clip
8. Release button
9. LED work light
10. On/off button (variable)
2 2
1 1
bl bl
9 9
8 8
3 3
Charging and fi tting the battery
Charge the battery fully before using the drill
for the fi rst time.
Insert the plug from the charger into the
mains socket. The LED (A) on the charger
lights up green.
Press the release button (8) on the battery (6)
and take the battery out.
Insert the battery into the charger. The
battery cannot be inserted if the poles are
incorrectly aligned.
4 4
5 5
6 6
7 7
