BACK PANEL / CONNECTION:
FREQUENCY FILTER FUNCTION (DP2400X)
FILTER FREQUENCY 25-150 hz
6
FILTER SwITCh
7
oFF: Filter off
Low pass: For use as variable Low-pass Filter. Frequencies higher than the adjusted frequency will be cut off.
Low Cut: For use as variable Low-Cut Filter. Frequencies lower than the adjusted frequency will be cut off.
To use the Dp2400X as an active 2-Way amplifier, combine both filters as a crossover.
CONNECTION
LF - CONNECTION CORDS
For best result please choose high quality balanced XLR cables.
Integrated XLR / 6,3 mm phone jack combo input connectors offer the opportunity to connect also unbalanced
mixing consoles by using 6,3 mm phone jack cables.

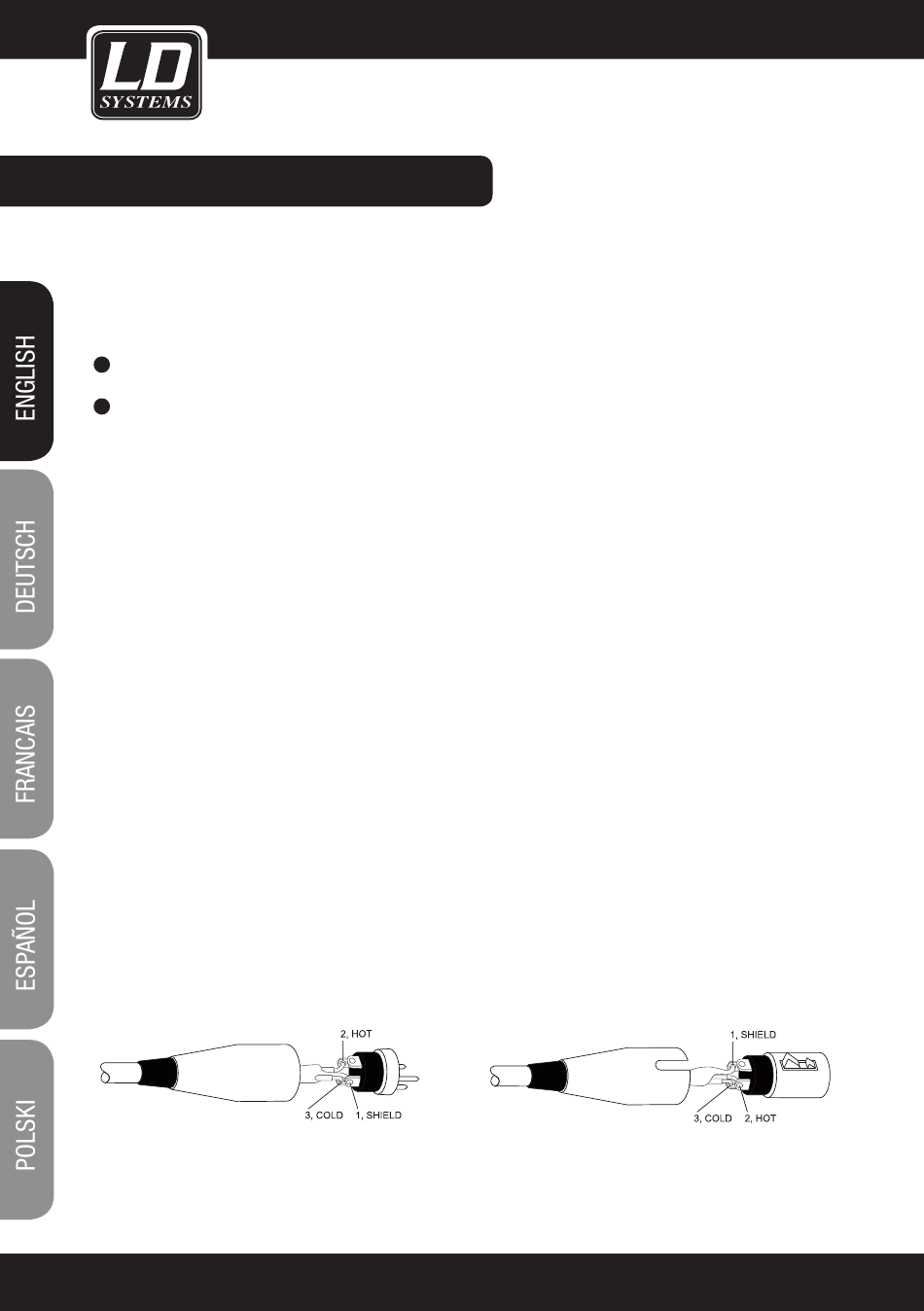

XLR-type connector pin-assignment
X L R ( m l a ) e
8
X L R ( e f m l a ) e
