Installation
Attention: During the drive assembly all cabling has to be disconnected from the
computer.
Manual IB-1823MF-C31

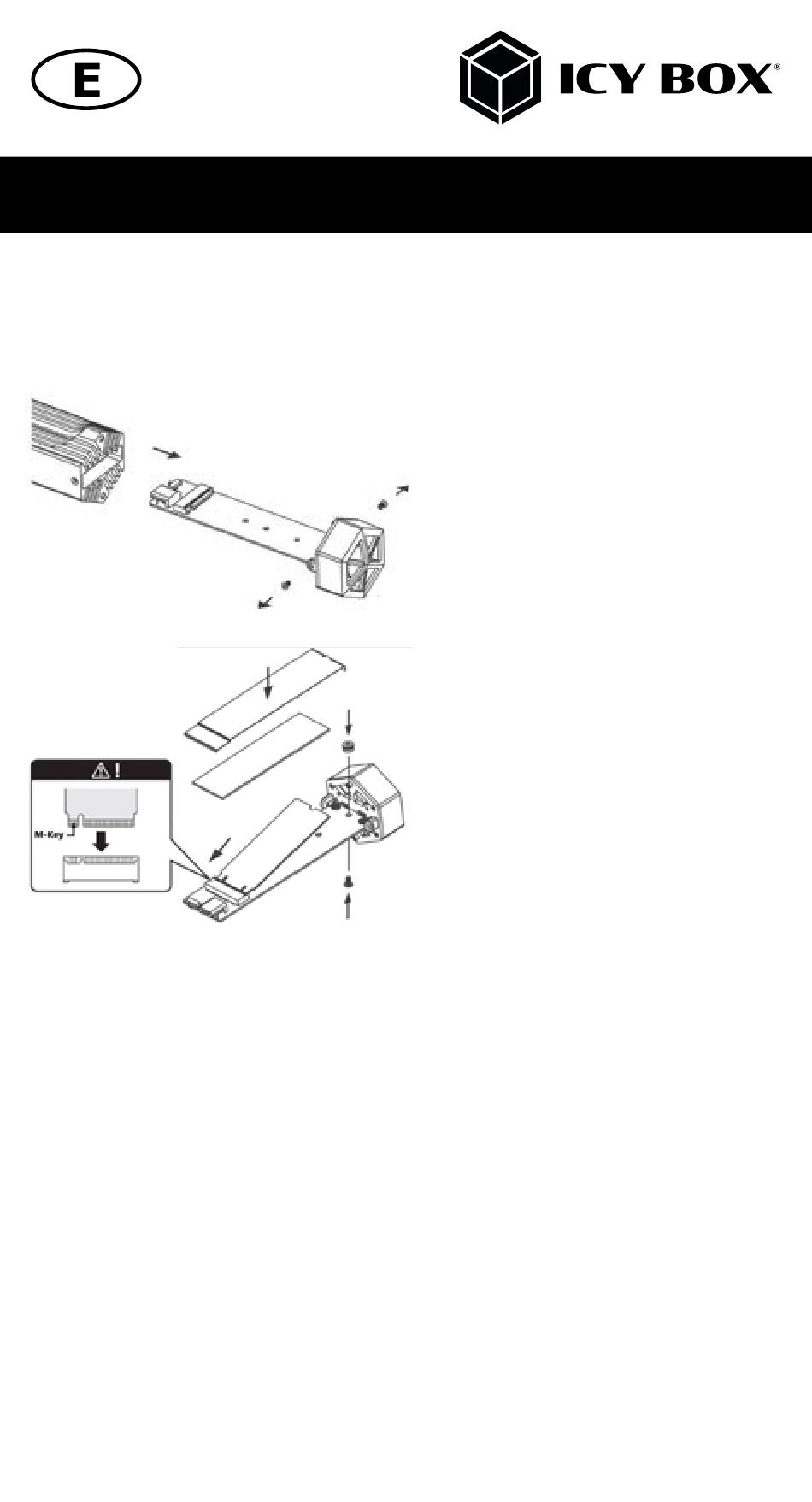

1. Take out the PCB.
2. Combine the circular notch of
the round M.2 holder with the
semi-circular notch of the M.2
SSD and hold it with one finger
(the thinner side upwards).
Insert your SSD carefully with
the connection side into the
M.2 socket at an angle of
about 30° so it fits in smoothly.
3. Then push the SSD down and
fix the M.2 nut with screw as
displayed.
4. Place the delivered thermal
pad directly to the SSD.
5. Put the heat sink on the thermal
pad and align the notch to the
screw nut.
