Palmer PMT02 Bedienungsanleitung

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
The technical data and functional product features may change without notice. We can nevertheless not
be held responsible or liable for the accuracy and completeness of the information provided.
You can find our current warranty conditions and limitation of liability at: http://www.adamhall.com/media/
shop/downloads/documents/manufacturersdeclarations.pdf
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. This is to avoid environmental damage or personal injury due
to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it
recycled to promote sustainable economic activity.

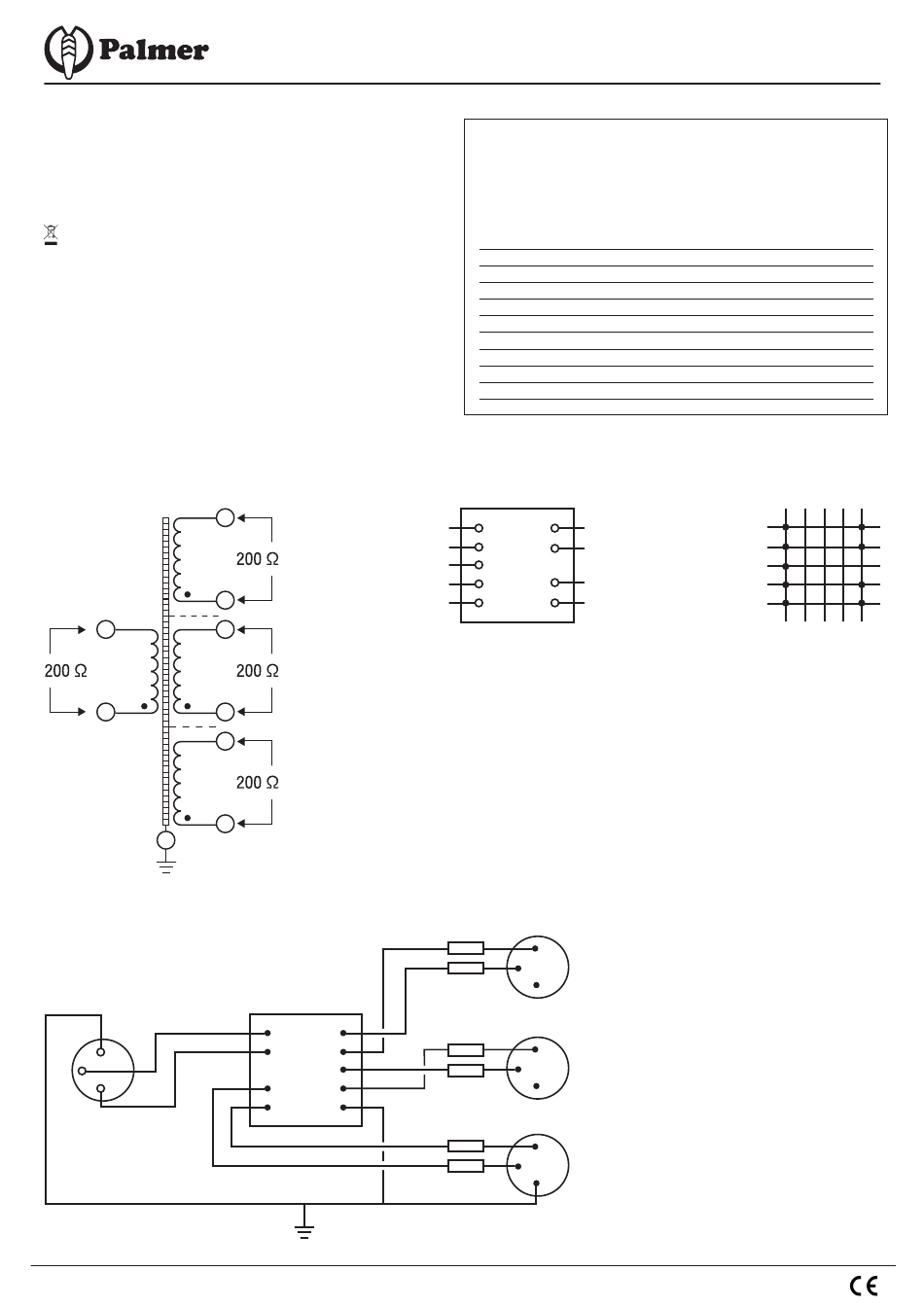

SCHEME:
2
1
9
MICROPHONESPLITBOX
IN
1
3
2
CONNECTIONS:
Footprint 30 x 30 cm, Height 20 mm (excluding pins)
8
GROUND
7
6
5
4
GROUNDING:
To prevent ground loops, it makes sense to ground
the input to only one output socket. However, this
output socket must always be used first.
3
PMT05
7
1
2 8
3
5
4
6 9
© Palmer Audio Tools, Adam Hall GmbH, D-61267 Neu-Anspach, Daimlerstr. 9, Germany TEL: ++49 (0)6081 94190
FAX: ++49 (0)6081 43280 WEB: www.adamhall.com, www.palmer-germany.com EMAIL: info@palmer-germany.com
PMT05 – SPLIT TRANSFORMER 1-3 FOR MICROPHONE LEVELS
Description
Microphone split transformer with 3 secondary windings. Electrostatic and mu-metal shielding, PCB mount.
PCB for 4 x PMT-05 available (PCB05).
CAUTION: Soldering time on the contact pins should be no more than 5 seconds. No warranty for da-
maged or over-soldered pins!
TECHNICAL SPECIFICATIONS
Ratio:
Source impedance:
Load impedance:
Max. level:
Frequency response:
PCB:
Dimensions:
application:
Weight:
(VIEW ON THE PINS)
9 6
4
5
OUT 1
3
2
8
OUT 3
7 1
PMT05
R*
2
OUT
3
R*
1
R*
2
OUT
3
R* 1
R*
2
3 OUT
R*
1
1:1 + 1:1
200 Ohm(s)
> 200 Ohm(s)
+ 4 dB
40 - 20000 Hz
PCB05
EE25 mm
mic split
0.07 kg
OUT 2
IN
*
The R* resistors are added for mutual decoupling
of the individual outputs. The higher the resistance,
the better the decoupling. At the same time, higher
resistance values also increase the losses. 100
ohms is a convenient compromise. A metal film
resistor with a maximum 1% tolerance should be
chosen for the highest demands.
GRID:
(5 MM)
