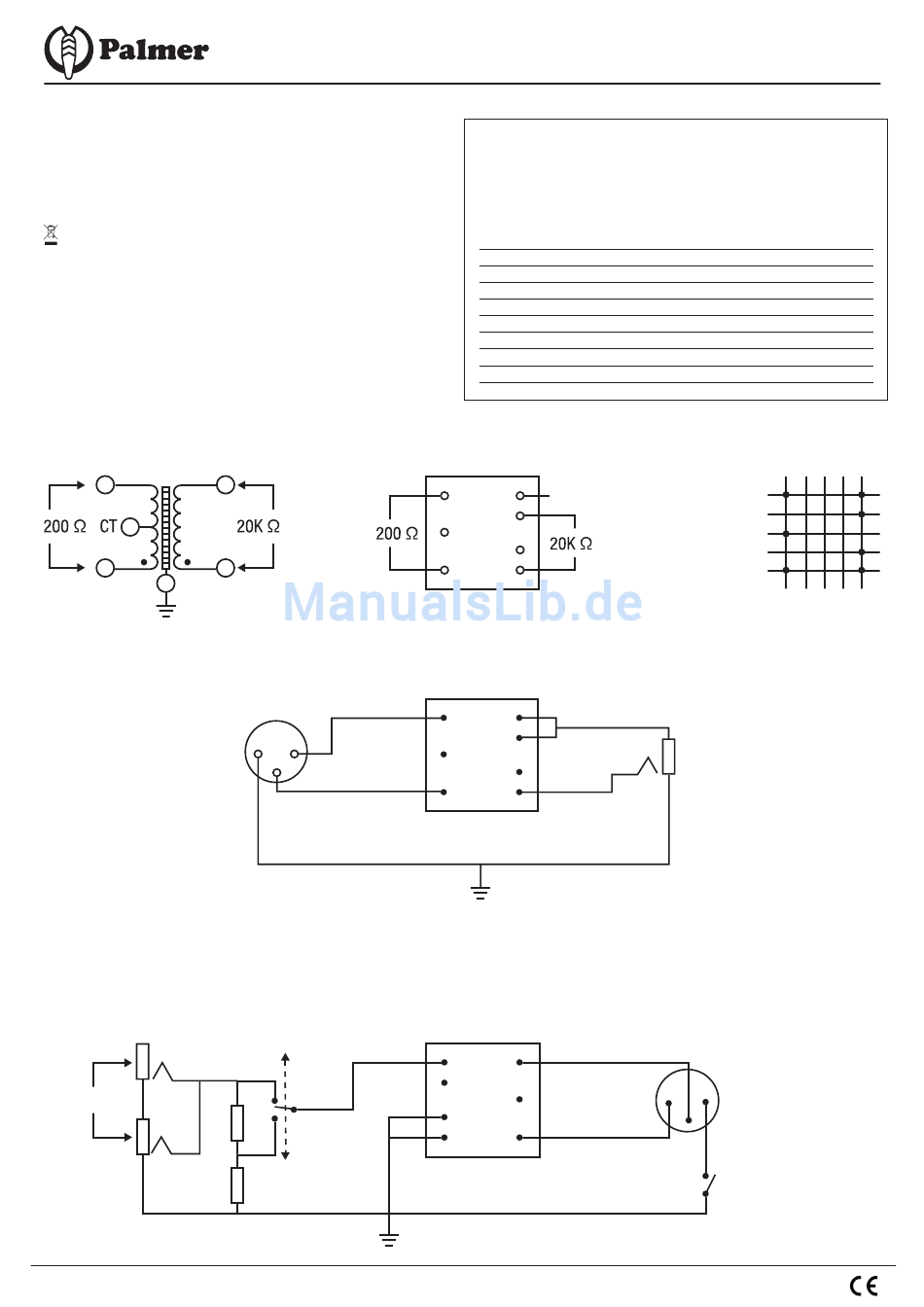

SCHEME:
3
2
1
6
PASSIVE DI BOX:
-20 dB output for 0 dB LINE IN or 100 W (4 ohms) in SPEAKER position
INPUT LINK
68K Ω
2,7K Ω
CONNECTIONS:
Footprint 30 x 30 cm, Height 20 mm (excluding pins)
5
4
XLR-SOCKET
12 1 2
3
INPUT
MIC 200 Ω
LINE IN
SPEAKER IN
© Palmer Audio Tools, Adam Hall GmbH, D-61267 Neu-Anspach, Daimlerstr. 9, Germany TEL: ++49 (0)6081 94190
FAX: ++49 (0)6081 43280 WEB: www.adamhall.com, www.palmer-germany.com EMAIL: info@palmer-germany.com
PMT02 – BALANCING TRANSFORMER 10:1 FOR DI BOXES
Description
The "classic" DI box transformer with a 10:1 ratio. Zur Anpassung niederohmiger Mikrofone an hochomige
Eingänge. Electrostatic and mu-metal shielding, PCB mount.
CAUTION: Soldering time on the contact pins should be no more than 5 seconds. No warranty for da-
maged or over-soldered pins!
TECHNICAL SPECIFICATIONS
Ratio:
Source impedance:
Load impedance:
Max. level:
Frequency response:
Dimensions:
application:
Weight:
(VIEW ON THE PINS)
3 6 GROUND / HOUSING
5
2
1 4
PMT02
3 6
5
2
1 4
PMT02
HOUSING (GROUND)
4 1
2
5
6 3
PMT02
10:1
< 20 k Ohm(s)
> 200 Ohm(s)
@ 20 k Ohms + 10 dBu dB
30 - 20000 Hz
EE25 mm
Di
0.07 kg
GRID:
JACK-SOCKET
OUTPUT
LINE 20K Ω
XLR-SOCKET
1 12 2
BALANCED
3 OUTPUT
GND LIFT
(5 MM)
