Power Supply Options:

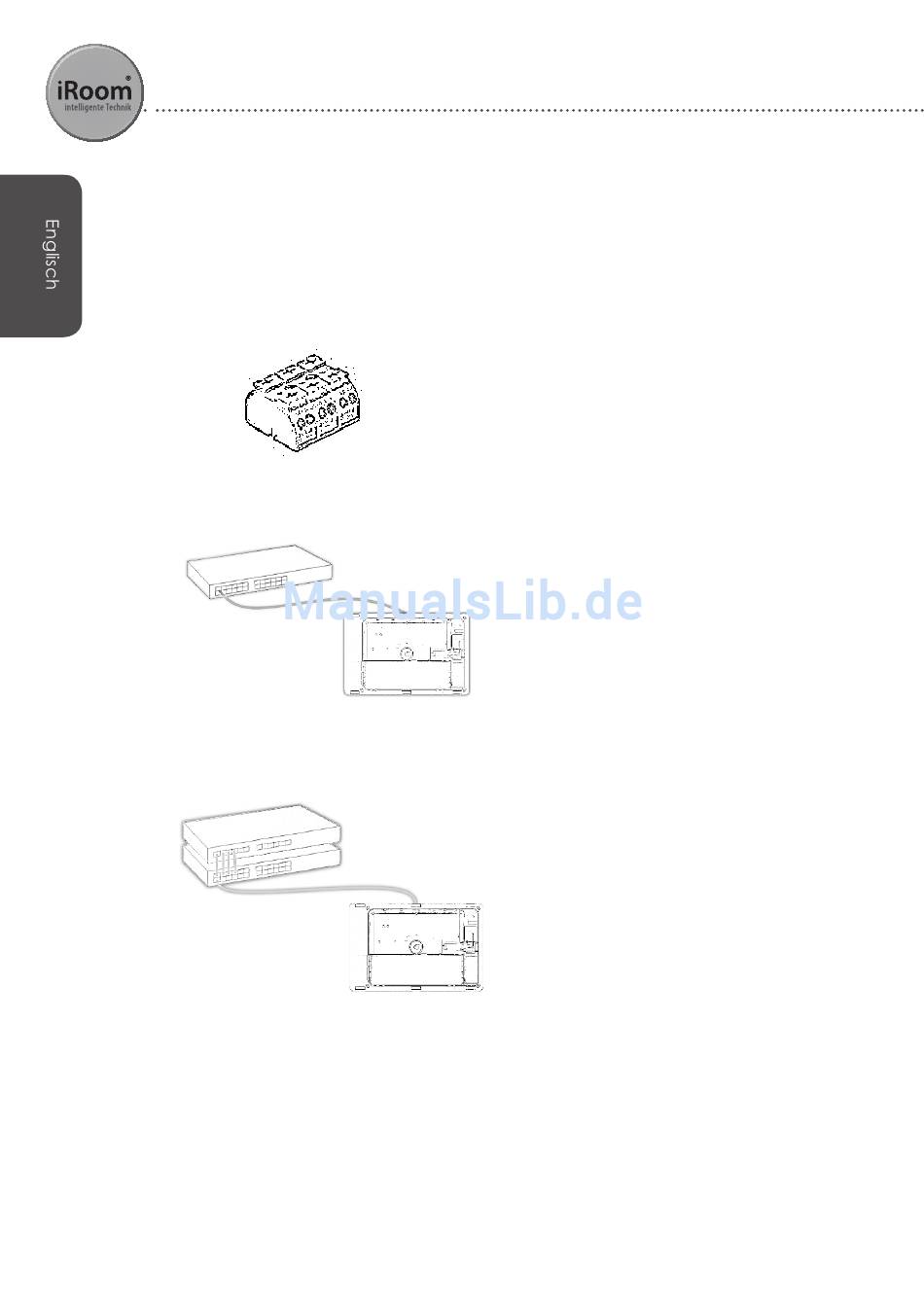

The following options are available to power iRoom's iDock
Option 1: 110-240V AC
Option 2: PoE+ IEEE 803.at
PoE+ CAT5e/6
cable
Option 3: Regular switch with PoE+
PoE+ CA-
T5e/6 cable
Operation with Standard-PoE (IEEE 803.af) is possible with limitation in charging current and restrictions in
1
iPad operation. 24/7-operation of an iPad docked will empty iPad battery. To avoid emptying battery please
enable iPad power saving mode and reduce display brightness.
24/7-operation of an iPad docked powered by PoE (IEEE 803.af) can not be can not be guaranteed.
If you're going to supply your iRoom's iBezel by using a standard PoE (IEEE 803.af) Injector/switch please
enable DIL Switch #2 prior to installation / power supply.
To locate the DIL switch please refer to chapter „Main Board Feature Overview".
connect regular 110-240V AC wiring to
designated terminal clamps on the back
side of iRoom's iDock.
-----------------------------------------------------------------------------
switch
1
PoE+ (IEEE 803.at)
Switch
connect PoE+ Switch to iRoom's iDock to
establish power and data connection.
iRoom's iDock
-----------------------------------------------------------------------------
mid-span injector
1
ethernet switch
mid-span injector
connect PoE+ Switch to iRoom's iDock to
establish power and data connection.
iRoom's iDock
