The legendary Fender Princeton Reverb Amp of the 1960s
was small, light, and moderately powered. Though intended
for practice situations, the Princeton was capable of big tube
tone, and Fender's world-class Reverb and Vibrato effects
were the icing on the cake. From its inception 'til today,
countless guitarists have chosen it as their go-to studio amp,
crafting signature sounds with a stomp box or two feeding a
simple mic-ed-up Princeton.
Today, original Princeton Reverb amps are prized collectibles,
and becoming harder to find. The new '65 Princeton Reverb
Amp offers today's players all of the great tone and dynamics
of the original ... in an affordable, roadworthy reissue. The
robust 12-watt platform is a wise choice for creating tube
tone in a small space, and even provides enough output for
small gigs and rehearsals.
A. INPUT 1: Full sensitivity input for most guitars.
B. INPUT 2: Lower sensitivity input (-6dB) to provide high-
output guitars with cleaner response.
NOTE: Both inputs become equal in sensitivity when used
simultaneously.
C. VOLUME: Adjusts loudness of the amplifier.
D. TREBLE: Adjusts high-frequency tone character.
E. BASS: Adjusts low-frequency tone character.
'65 PRINCETON® REVERB AMP
Features include:
• 1965 Princeton Reverb circuit with all-tube circuitry
• Two Groove Tubes® 6V6 output tubes
• Three 12AX7 preamp tubes
• One 12AT7 tube
• 5AR4 rectifier tube
• 12 watts output power
• 10" Jensen® C-10R speaker for spanky vintage tones
• Genuine Fender tube-driven spring Reverb by Accutronics®
• Genuine Fender tube tremolo ("Vibrato")
• Genuine Fender Black Panel cosmetic treatment
• Vintage Reverb/Vibrato footswitch
• Fitted cover

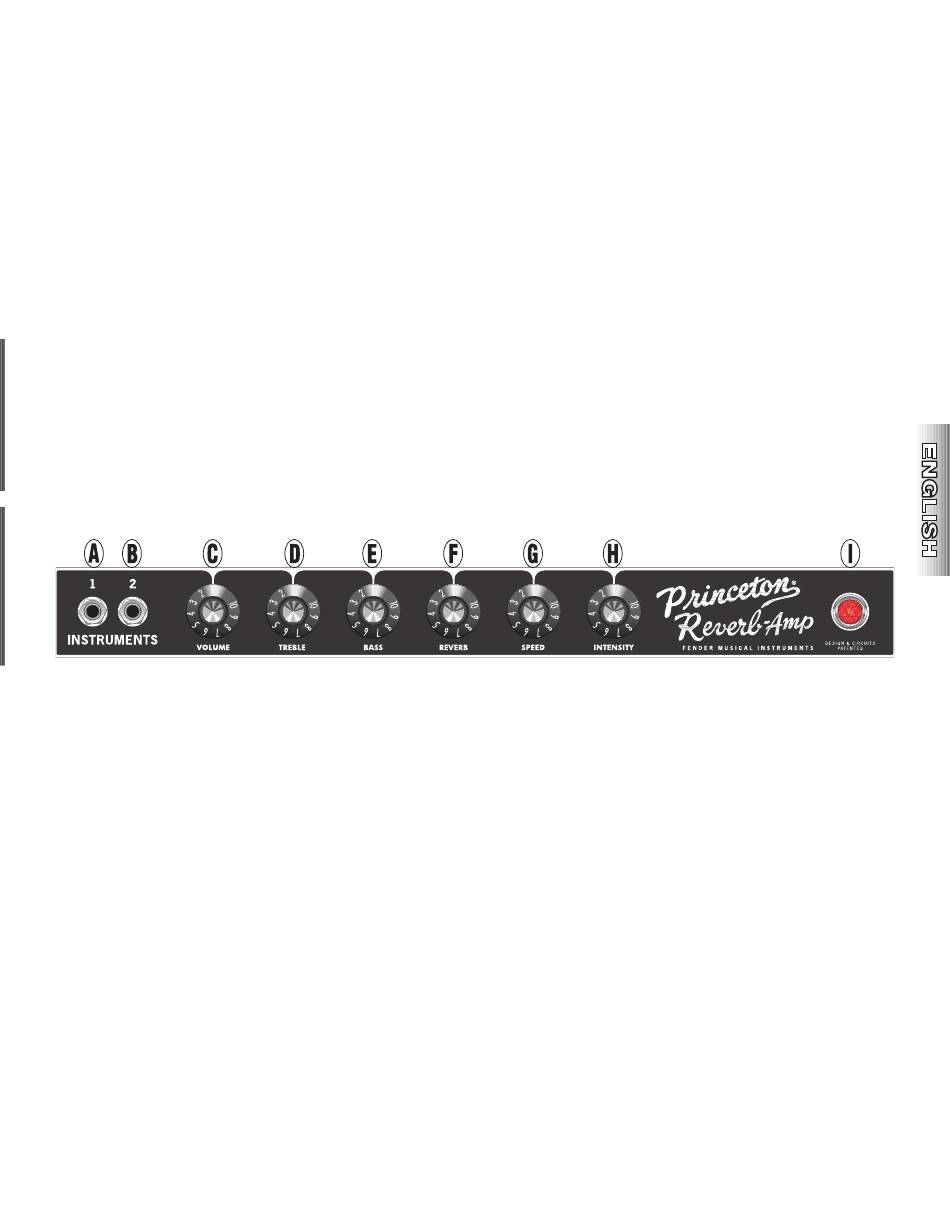

FRONT PANEL

F.
G. SPEED: Adjusts rate of vibrato effect. Vibrato can be
H. INTENSITY: Adjusts depth of vibrato effect.
I.
5
REVERB: Adjusts level of reverb effect. Reverb can be
switched on-off from footswitch (O).
switched on-off from footswitch (O).
POWER JEWEL: Indicates amplifier is on.
