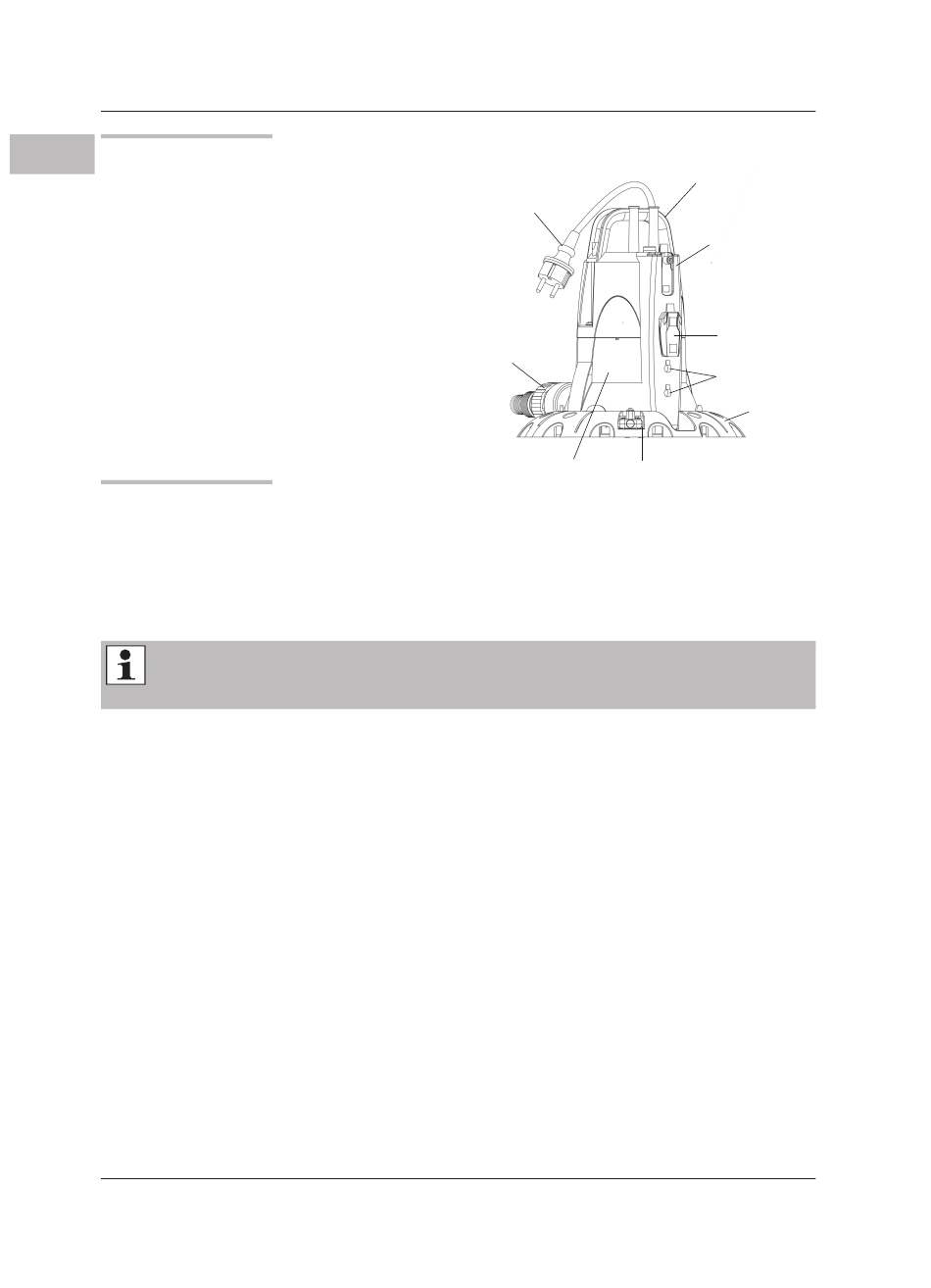

Your appliance at a glance

EN
1. Carrying handle
2. Mains cable and plug
3. Sensor switch
4. Hose adapter
5. Pump casing
6. Sensor switch socket
6-1 Sensor position for constant running
6-2 Sensor position for having different
pump starting water level
6-3 Sensor position for having the lowest
pump starting water level at 10mm.
7. Baseplate

Operation

Installation and commissioning

Attach a sufficiently long and strong rope to the specially designed bottom plate position before
first use when the pump is placed onto the pool cover or attach a sufficient long and strong rope
to the handle before first use when the pump needs to be submerged into the water container
as submersible pump.
Note:
In the case of continuous use of the pump with the rope, the condition of the rope must
be checked regularly as it can decay and break over time.
Connect pressure pipe
For occasional use, use a suitable water hose.
The use of rigid pipes with a non-return valve is recommended for use at a fixed location. This
prevents return flow of the liquid when switching off.
– Screw the pressure hose onto the hose adapter.
All threaded connections must be sealed with thread sealing tape (e. g. Teflon® tape).
– When using a hose, screw a suitable hose adapter onto the hose adapter.
– Push the hose firmly onto the hose adapter and secure with a hose clamp.
Installation
The appliance can be put on the pool cover when the base plate is fitted or in the water
container when the base plate is taken off.
The appliance can be submerged under water up to the submerged operating depth mentioned
in the technical data.
When using as submersible pump, Install the appliance so that the suction openings cannot be
blocked by foreign bodies (place the appliance on a firm, even base if necessary).
Ensure that the appliance is stable.
