MOUNTING

Secure bracket to a flat surface with screws provided. Align mounting post on Light
Source with mounting hole on bracket (View A). Slide mounting lock until it clicks into
place (View B). Light Source is now securely mounted to table.
CAUTION: Do not cover or drape, light source generates heat. For proper
ventilation, maintain a clearance of 3 inches (7 .62 cm) around the unit,
especially around the fan.

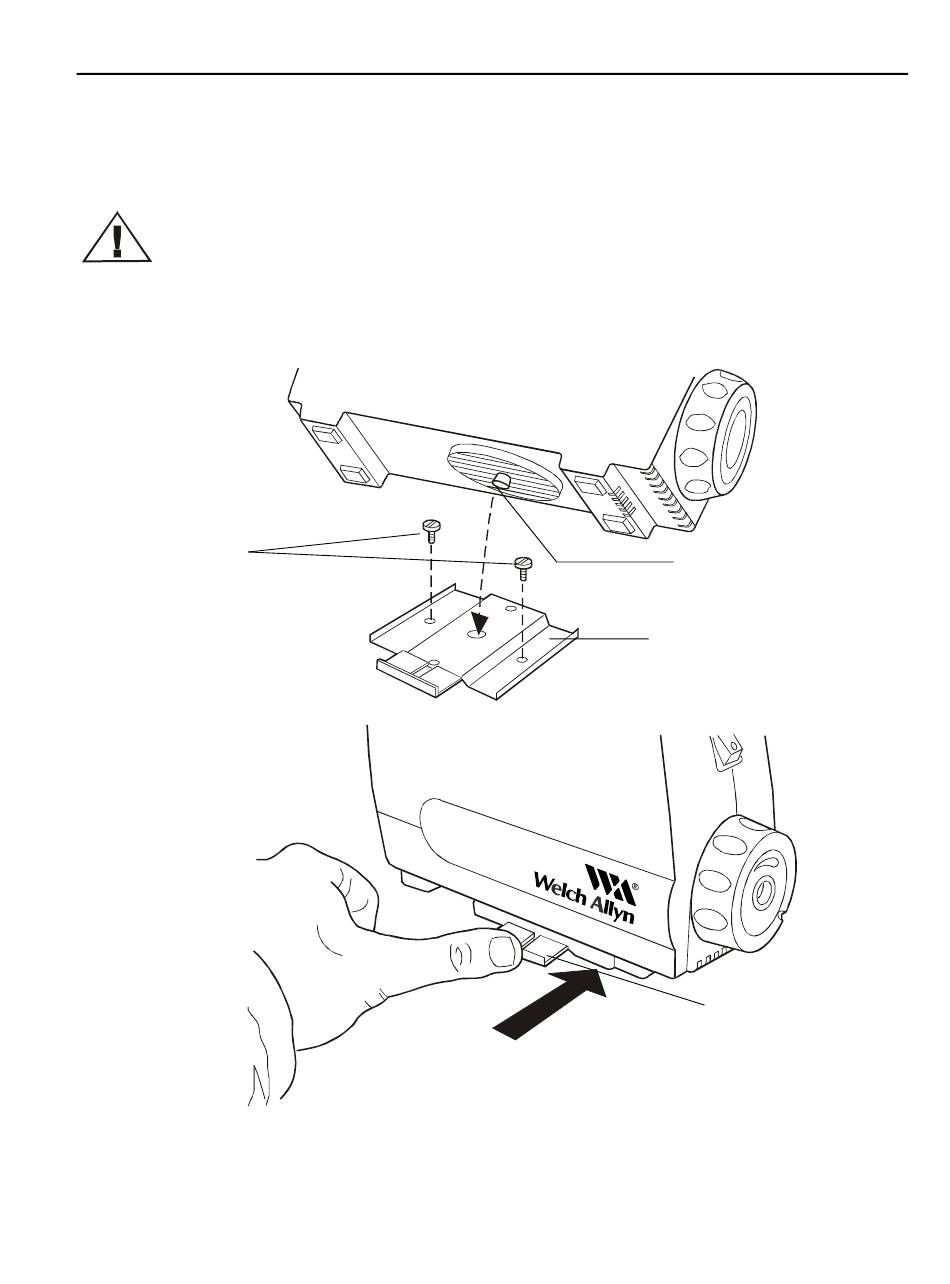

VIEW A
Supplied
Screws
VIEW B
Mounting Post
Mounting Bracket
Mounting Lock
1-5
