Manual
AirBridge PRO
Applicable for
124-322-00-100-10
Specifications
AirBridge PRO
Power Supply
(Power supply included)
- Analog input 3.5mm jack
- Analog output 3.5mm jack
- Digital optical TOSLINK input
Connections
- Digital optical TOSLINK output
- RS45 LAN
- Mini USB DC 5V
- W-LAN(ac/b/g/n, 2.4 und 5 GHz)
- LAN (100Mbit),
Connectivity
- Bluetooth 4.2 (A2DP/AVRCP Sink)
- USB 2.0
Protocols
Airplay, DLNA, Spotify, UPnP
MP3, AAC, FLAC, ALAC, Vorbis/Opus,
Audio formates
WMA, AC3, APE/WavPack, MIDI
Container formates
MP4, MKV, OGG, WAV, AIFF, ASF
Features
Internet-Radio Funktion
Dimensions (H/W/D)
30 x 128 x 100 mm
Weight
Operating Temperature
0 °C ... +30 °C
Product registration and extended warranty at:
www.whd.de/Produktregistrierung
This product supports all CE-
marking criteria. The declaration of
conformity certificate can be ob-
tained from WHD.
Operation
Thank you for buying our new generation WiFi receiver.
Please read this manual carefully, especially the safety and security information.
Mounting and connections
- Install the cables (power supply, speaker cabel, CAT5/7 Cable/Patchcord) for the AirBridge
PRO according to installation guidelines, and your desired port scenario.
! Mount the device only in locations that ensure sufficient temperature dissipation.
Connections
Connecting cables according to the printing. After connecting power supply, the device is
ready for operation.
5V / 0,8 A
! LineIn is for a local audio source at the AirBridge PRO zone.
In addition to this guidance please comply with your own country-specific safety & security
regulations.
The device is not suitable for outdoor operation.
- The electrical supply must be disconnected before working on the device.
- Keep the original packaging (for returning products under warranty).
- Protect the device from falling or splashing water. Make sure, as with all electronic prod-
ucts that no liquids can access any part of the system.
- Do not expose the device to temperatures above 30° C.
200 g
- Do not expose the device to electrostatic discharges.
! Please note the country-specific safety guidelines for use and operation of W/LANs.
! For continued flawless audio transmission you should always use a wireless router from
802.11n and the latest smartphones / tablets.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.

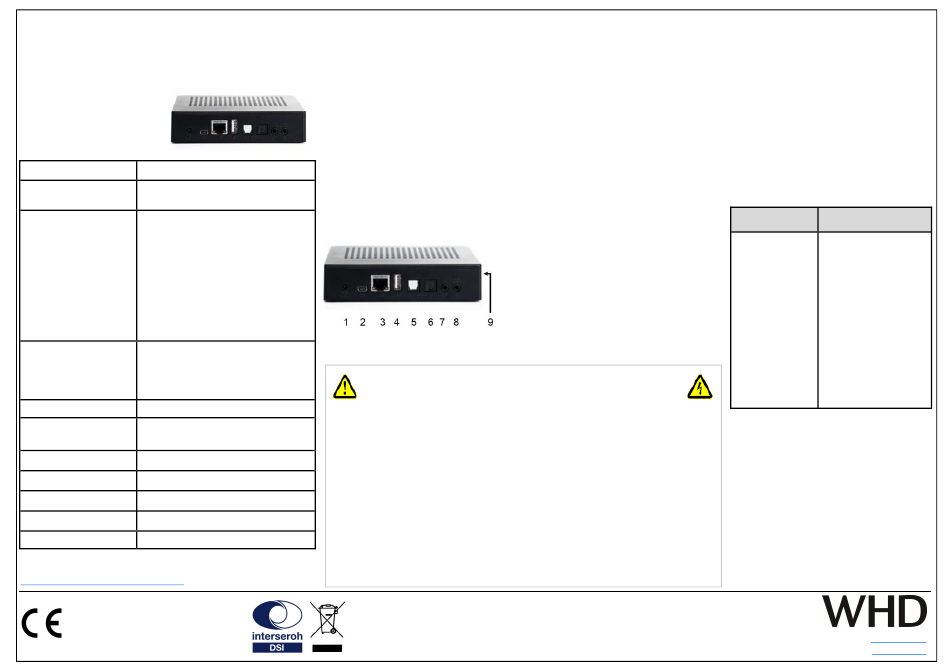

1 ... WPS / Reset
2 ... Mini USB, DC 5V connector for power supply
3 ... LAN connection socket RJ45
4 ... USB port
5 ... Digital optical output (TOSLINK, SPDIF)
6 ... Digital optical input (TOSLINK, SPDIF)
7 ... Analog audio output (3.5 mm jack)
8 ... Analog audio input (3.5 mm jack)
9 ... Status display (LED LED)
Safety & Security Informations
Improper handling may void warranty!
Delivery
- Power adapter
- Fiber optic cable with TOSLINK plugs, 1.5 m
- Audio cable 3,5mm jack, 1m
- Stereo jack RCA cable, 1m
LED Signal
RED, bright
BLUE, bright
RED, blinking
BLUE, blinking
LOCATION /
BLUE, alternately
flashing
Notes on function
1. WLAN / LAN operation:
If the RJ45 (LAN) cable is connected, the Wi-Fi
function turns off automatically.
2. KNX operation:
For this use an optional KNX gateway is neces-
sary. Thus all WHD W/LAN components can be
controlled via KNX and e.g. Internet radio sta-
tions can be selected, which can be played di-
rectly with the AirBridge PRO, without requiring
the use of a smartphone or tablet.
WHD - Wilhelm Huber+Söhne GmbH+Co.KG
Bismarckstr. 19
D-78652 Deißlingen
Tel. Zentrale +49 74 20 / 8 89-0
Fax Zentrale +49 74 20 / 8 89-51
Version
(Technical and optical
modifications reserved)
10.10.2019
- page 1 -
Status
WLAN Access‐Point
Mode (AP Mode)
WLAN or Bluetooth®
Connection
System Error
Boot Process
Firmware Update
E-Mail:
info@whd.de
Web:
www.whd.de
