5. USB Factory Service: DO NOT use this connection to charge/power the
device. This connection is used to update the device and is intended for
service personnel only.

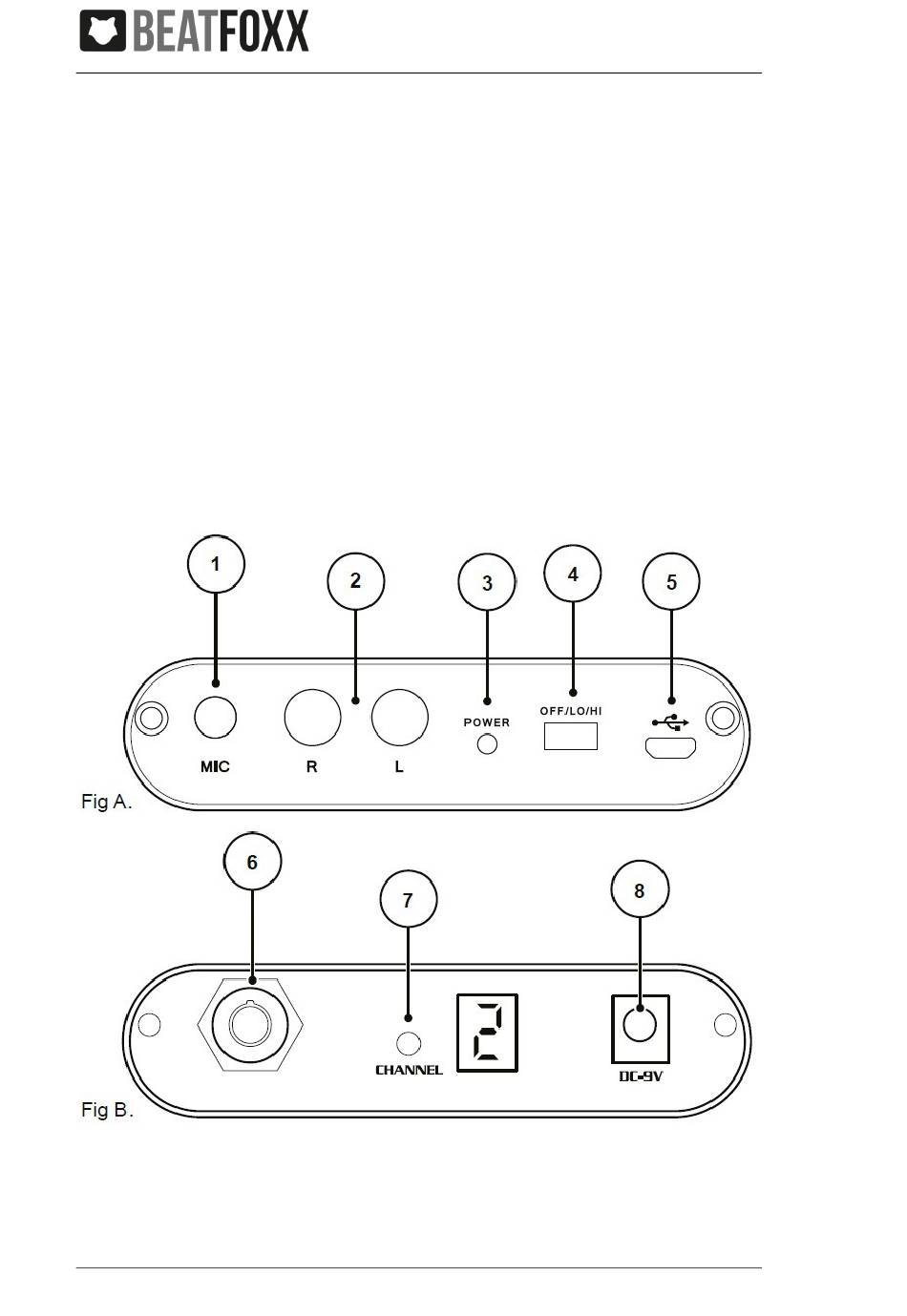

Figure B:
6. ANTENNA: The antenna attaches here using the BNC connector.
7. CHANNEL: This button changes the channel the transmitter is using. Press
to change between channel 1, 2, 3, etc. The LED display will show the
currently selected channel. Note: When more than two transmitters are
working simultaneously, make sure each transmitter is on a different
channel.
8. DC-9V: Connect the power adapter here to power the unit and charge the
internal battery. While the transmitter is plugged in, it can be operated in high
power mode (See Fig A. Item 4)

Diagram:

4 Beatfoxx SDT-40 Silent Club Wireless Transmitter
