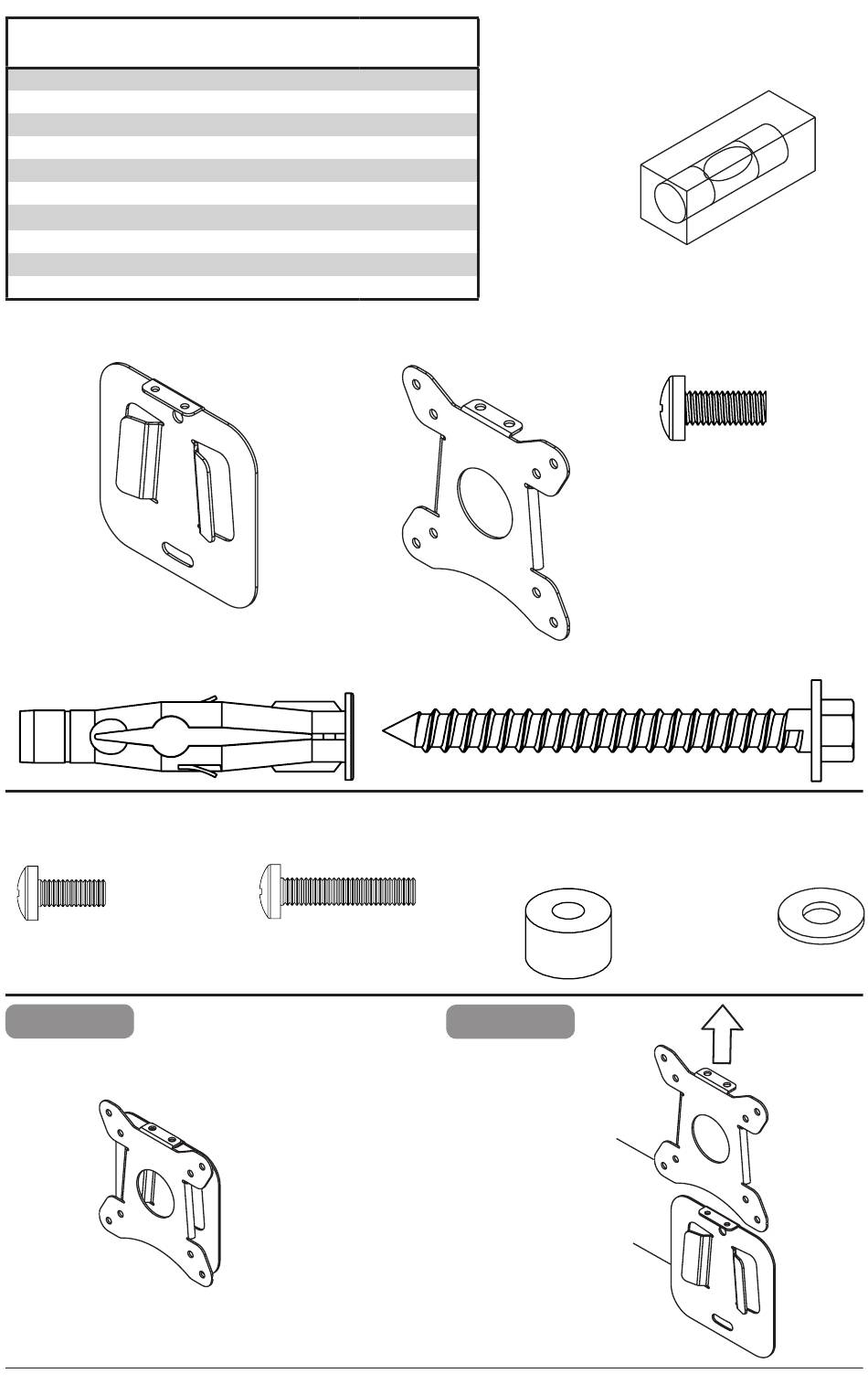

Parts List
Description
A wall plate
B adaptor plate
C M5 x 12mm
D 8mm concrete anchor
E #14 x 2-1/2" wood screw
F M4 x 10mm
G M4 x 20mm
H 5/16" (8mm) height spacer
I M4 x 1mm washer
J bubble level
A ( 1 )
wall plate
D ( 2 )
8mm concrete anchor
F ( 4 )
M4 x 10mm
1-1
Qty
Part #
1
096-1381
1
096-1382
2
520-1027
2
590-0320
2
5S1-015-C03
4
504-9012
4
504-9020
4
540-1509
4
540-9400
1
600-0257
B ( 1 )
adaptor plate
G ( 4 )
M4 x 20mm
6
E ( 2 )
#14 x 2-1/2" wood screw
H ( 4 )
5/16" (8mm)
height spacer
1-2
B
A
2014-08-04
J (1)
bubble level
C (2)
M5 x 12mm
I ( 4 )
M4 x 1mm
washer
#:203-9410-3
(2018-03-28)
