FAAC E012S Installationsanleitung
  1. Anleitungen
  2. Marken
  3. FAAC Anleitungen
  4. Torsteuerung
  5. E012S
  6. Installationsanleitung
FAAC E012S Installationsanleitung

FAAC E012S Installationsanleitung

Vorschau ausblenden Andere Handbücher für E012S:
Inhaltsverzeichnis

Werbung

Quicklinks

Diese Anleitung herunterladen
E012S
E012S

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für FAAC E012S

Inhaltszusammenfassung für FAAC E012S

  • Seite 1 E012S E012S...
  • Seite 2 Eloigner de la portée des enfants les radiocommandes ou tout autre générateur FAAC declines all liability caused by improper use or use other than that for which d’impulsions, pour éviter tout actionnement involontaire de l’automatisme.
  • Seite 3 DEUTSCH FAAC is niet aansprakelijk als de regels der goede techniek niet in acht genomen zijn bij de bouw van het sluitwerk dat gemotoriseerd moet worden, noch voor vervormingen die zouden kunnen ontstaan bij het gebruik.

  • Seite 4: Ce Declaration Of Conformity

    2006/95/EC Low Voltage directive. • • 2004/108/EC Electromagnetic Compatibility directive. Additional information: This product underwent a test in a typical uniform configuration (all products manufactured by FAAC S.p.A.). Bologna, 27 November 2008 Managing Director A. Marcellan Notes on reading the instruction Read this installation manual to the full before you begin installing the product.

  • Seite 5: Layout And Connections

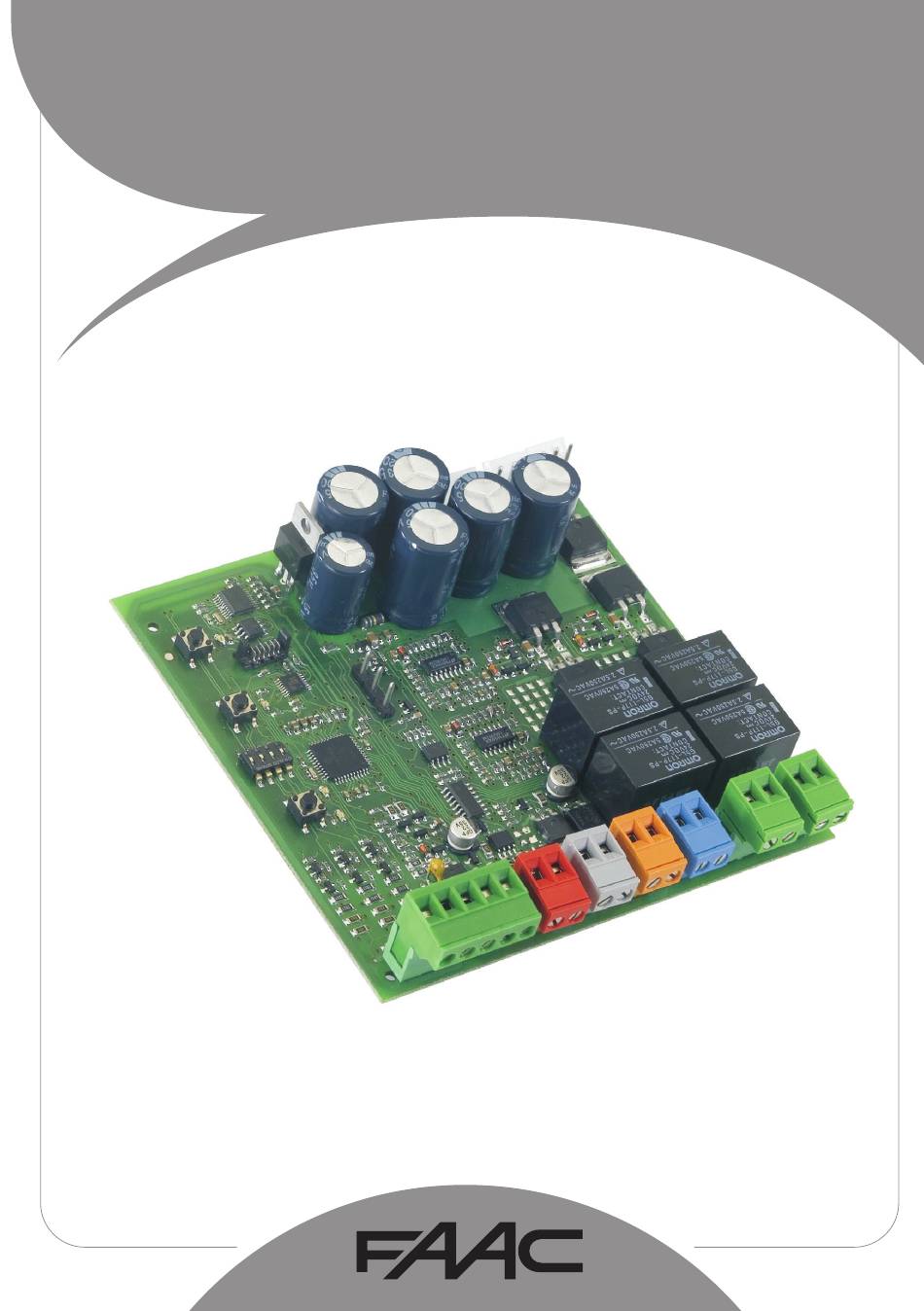

    CONTROL UNIT E012S 1. WARNINGS • Before attempting any work on the control unit (connections, maintenance), always turn off power. • Install, upstream of the system, a differential thermal breaker with adequate tripping threshold, • Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).

  • Seite 6: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. DESCRIPTION OF TERMINAL-BOARDS Terminal 230 (+6% -10%) 50 Hz / 115 Vac Power supply voltage and/or 60 Hz scrip- Device connected terminal- tion Supply voltage of con- board 24 Vac nominal trol unit +24V Power supply for accessories Absorbed power Negative Motor nominal power...

  • Seite 7: Manual Set-Up

    6.4.1. AUTOMATIC SET-UP Tab. 1 - Operation of inputs status LEDs To execute an AUTOMATIC SETUP , follow the procedure ON (closed contact) OFF (open contact) below: Take the leaves to mid-point. Command enabled STOP Command disabled Hold down the SETUP (SW1) push-button until the OPEN A Command enabled Command disabled...
  • Seite 8 closing, the motor power supply cables must be Tab. 3 - Addressing of BUS Photocells changed over. Dip1 Dip2 Dip3 Dip4 Ref. Type When using the MANUAL SETUP , the slow-down spaces, and leaf delays at opening are preset by the board and cannot be modified. However, delay at leaf closing and pause time can be B -C OPENING...
  • Seite 9 8 MEMORY STORING THE RADIO CODE Release both push-buttons. Within these 5 sec., while the radio control LED is still The control board has an integrated 2-channel decoding flashing, press and hold down the required push-but- system (DS, SLH, RC, LC) named OMNIDEC. This system ton on the radio control (the radio control LED lights makes it possible to memory-store both total opening up on steady beam).

  • Seite 10: Radio Controls Deletion Procedure

    10. AUTOMATED SYSTEM TEST the selected channel. The LED on the board relating to the channel being When you have finished programming, check if the learned flashes for 5 sec., within which time the code system is operating correctly. In particular, check if the of another radio control must be transmitted.
  • Seite 12 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’ap- porter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
