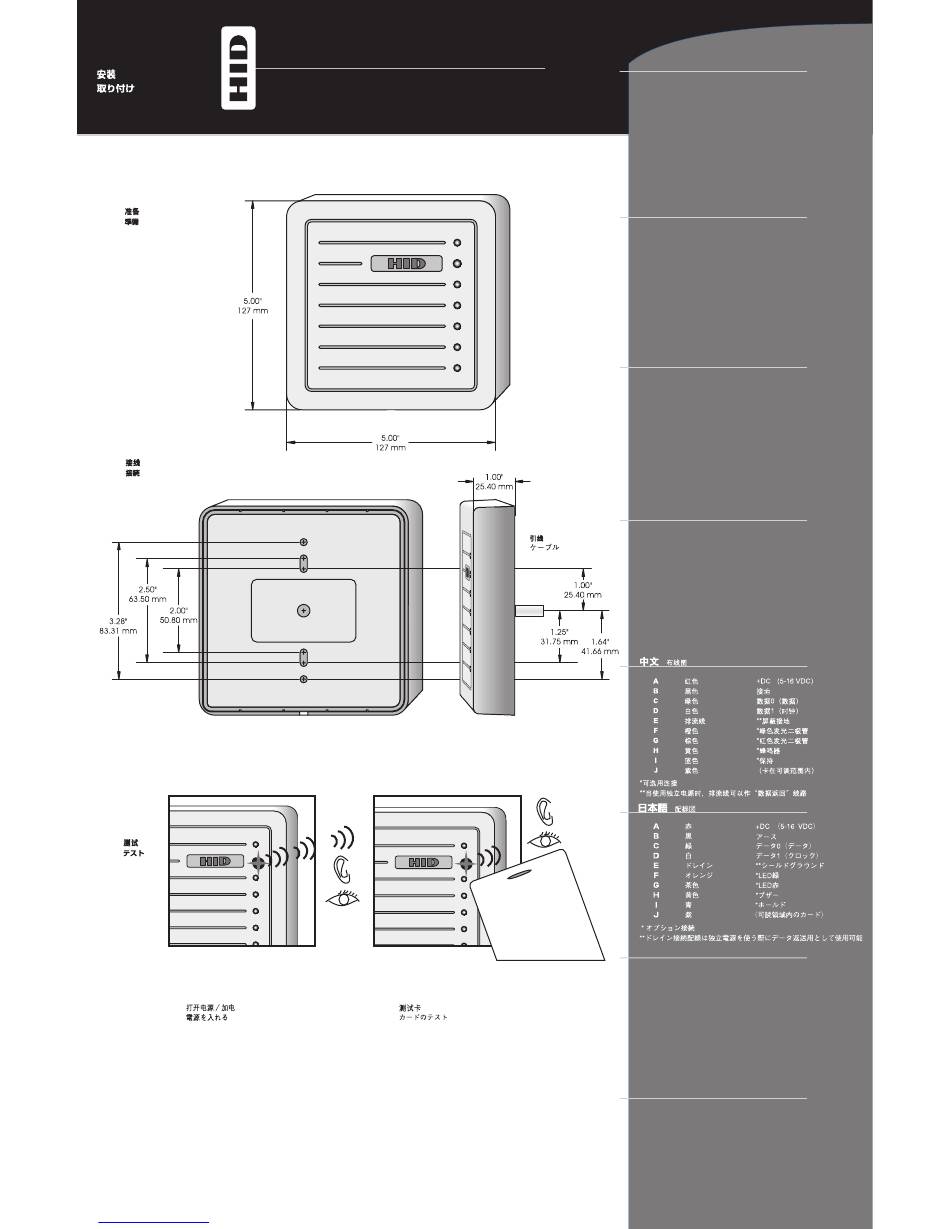

HID PROX Installation

installation
instalación
installation
instalação
installation
installazione
1
preparing
preparación
préparation
preparação
vorbereitung
preparazione
2
connecting
conexión
connexion
conexão
anschluss
connessione
3
testing
prueba
test
teste
testen
testare
fcc
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
• For regulatory compliance, the drain wire should be disconnected at the power supply end of the cable.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
• The Reader is intended to be powered from a limited power source output of a certified power supply.
Downloaded from www.Manualslib.com

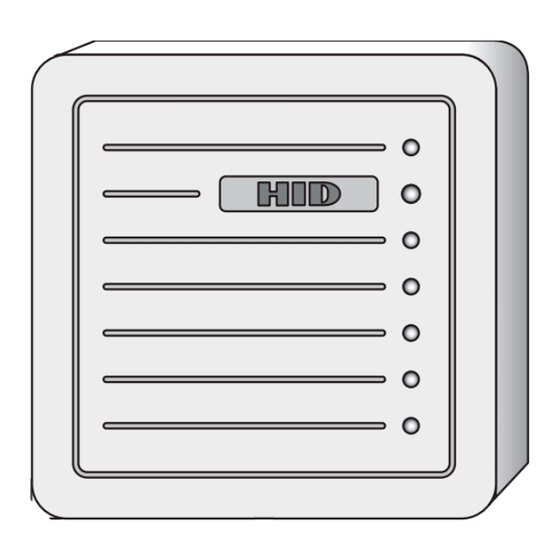

ProxPro II Reader 5455
®
Model: PROX
Turn power on
Encienda la unidad
Mettez sous tension
Ligar energia
Strom einschalten
Accendere
warning
manuals search engine
Pigtail
Entrada
Toron de raccordement
Fio de conexão
Anschlussfaser
(cavo) pigtail
Test card
Pruebe la tarjeta
Testez la carte
Placa de teste
Kartentest
Test
english
Wiring diagram
A red +DC (5-16 VDC)
B black ground
C green Data 0 (data)
D white Data 1 (clock)
E drain **shield ground
F
orange *green LED
G brown *red LED
H yellow *beeper
I blue *hold
J violet *(card present)
* Optional connections
** Drain wire can be "data return" line when a separate power supply
is used
español
Cableado
A rojo CC+ (5-16 VCC)
B negro tierra
C verde datos 0 (datos)
D blanco datos 1 (reloj)
E drenaje (drain) **cable blindado c. tierra
F naranja *led verde
G marrón *led rojo
H amarillo *señal audible
I azul *retención
J violeta *(presencia de tarjeta)
* Conexiones opcionales
** El cable de drenaje puede convertirse en una línea de retorno de
datos si se emplea una fuente de alimentación independiente.
français
Schéma de câblage
A rouge +cc (5-16 V cc)
B noir terre
C
vert données 0 ("data")
D blanc données 1 ("clock")
E branch. supp. **mise à la terre blindée
F orange *voyant vert
G marron *voyant rouge
H jaune *bip
I bleu *attente
J violet *(carte présente)
* connexions facultatives
** Le branchement supplémentaire peut servir de ligne de
« retour de données » en cas d'utilisation d'une alimentation électrique
séparée
português
Diagrama de ligações
A CA+ (5-16 V CA)
vermelho
B preto terra
C verde Dados 0 (dados)
Dados 1 (clock)
D branco
E dreno **terra do gabinete
F *LED verde
laranja
G marrom *LED vermelho
H *bíper
amarelo
I azul *reserva
J violeta *(placa presente)
* conexões opcionais
**O fio do dreno pode ser a linha de "retorno de dados" quando usada
uma fonte de energia separada.
deutsch
Schaltplan
Rot +Gleichstrom (5-16 V)
A
B Schwarz Erde
Grün Daten 0 (Daten)
C
Weiss
D Daten 1 (Zeit)
E Drain **Schirmerde
Orange
F *Grüne LED
G Braun *Rote LED
Gelb
H *Signal
I Blau *Halten
Violett *(Karte vorhanden)
J
* optionale Verbindungen
** Drainanschluss kann bei Verwendung separater Stromzufuhr
Datenrückleitung sein
italiano
Schema di collegamento
A rosso +DC (5-16 VDC)
B nero terra
C verde Dato 0 (dato)
D bianco Dato 1 (clock)
E cavo di terra **Schermo di terra
F arancione *Led verde
G marrone *Led rosso
H giallo *Ronzatore
I blu *Memoria
J viola *(scheda attiva)
* Connessioni opzionali
** Il cavo.....può fare da "ritorno dati" se viene utilizatto un alimentatore
separato
