Rm750X - Corsair RMx Serie Bedienungsanleitung

RMx SERIES
™

RM750x

Dimensions:
150mm (W) x 86mm (H) x 160mm (L)
Package contents
• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

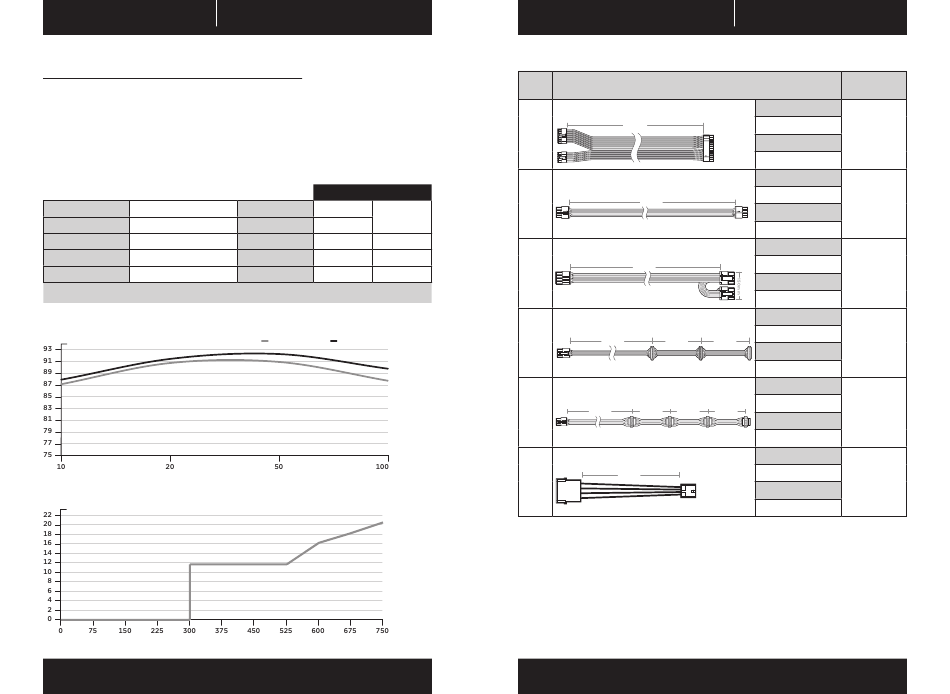

CORSAIR RM750x power table
Model RPS0109
Part No. 75-003444
AC Input Rating
100-240V
Input Current 10A-5A
Frequency 47˜63Hz
Total Power: 750W
CORSAIR RM750x power supply efficiency
% EFFICIENCY
SYSTEM LOAD
CORSAIR RM750x power supply fan noise curve
Fan Noise (db)
Power Output - Watts
• Cable ties
• CORSAIR case badge
• User manual
Max Load Max Output
+3.3V 25A
150W
+5V 25A
+12V
62.5A 750W
-12V 0.8A 9.6W
+5Vsb 3A 15W
input 115Vac input 230Vac
7
CORSAIR RM750x DC cable listing
Qty Description
ATX Cable 24 pin (20+4)
610mm 610mm
1
EPS/ATX12V 8 pin (4+4) cable
650mm
2
650mm
PCIe 8 pin (6+2) cable
600mm
600mm
2
SATA cable (3 SATA)
520mm 115mm
3 500mm 100mm
Peripheral cable (4-pin)
2 450mm 100mm 100mm
450mm 100mm 100mm
Floppy adapter (4-pin)
101mm
1
RMx SERIES
Total Length
Connectors Per Cable
1
610mm
(± 10mm)
Total Connectors
1
Connectors Per Cable
1
650mm
(± 10mm)
Total Connectors
2
Connectors Per Cable
2
750mm
(± 10mm)
Total Connectors
4
Connectors Per Cable
3
750mm
115mm
100mm
(± 10mm)
Total Connectors
9
Connectors Per Cable
4
750mm
100mm
100mm
(± 10mm)
Total Connectors
8
Connectors Per Cable
1
101mm
(± 5mm)
Total Connectors
1
