gesis RM-PS B
ENG Installation instructions
Voltage power pack for
modular equipment series
gesis RM B
A. Important information - please read carefully
This memorandum describes the installation of the voltage power pack for the modular
equipment series .
gesis RM
• Due to the given class of protection, type of enclosure and its holding fixture,
this device must be installed in a
gesis RAN
• All electrical installation work and connections are only to be made by a quali-
fied and trained electrician!
• The necessary regulations (for example EN 50090-2-2) are only fulfilled if the
equipment has been effectively and specifically processed as a final product.
The instructions, valid standards, regulations and safety stipulations and the
ESD directives are to be observed when processing further.
• To be also observed are the valid safety and accident prevention regulations!
With voltage loopthroughs, the 16 A maximum current must not be exceeded.
B. Function description
The voltage power pack is necessary for operating the basic module and over and above
this to operate the extension modules. In this case the power pack had been designed
and constructed to ensure that in the case of a peak load (simultaneous switching of
all connected relays) the basic module and extension modules will continue to function
reliably and safely.

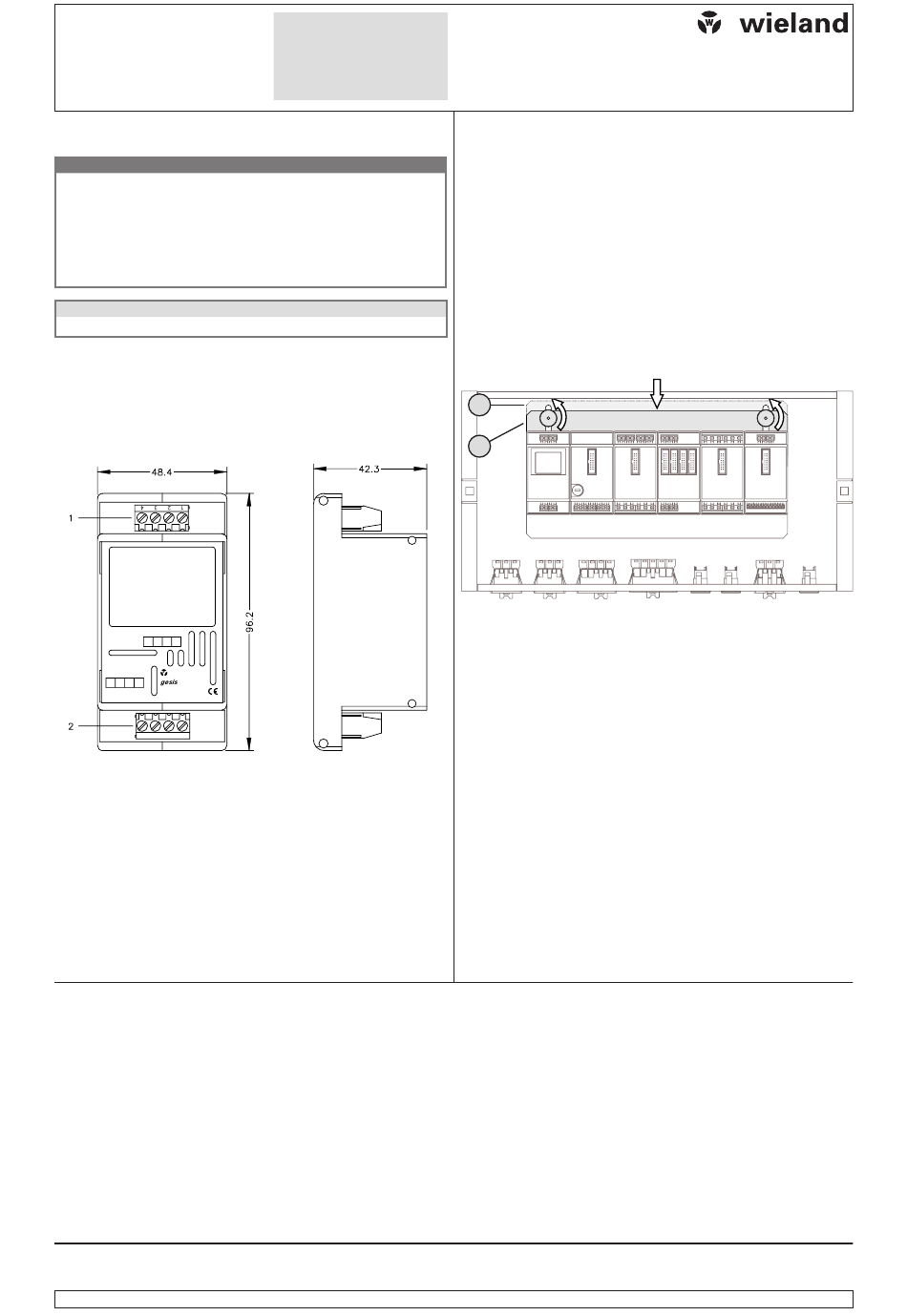

C. Dimensions and connections
(dimensions in mm)
Un 230V L L N N
50/60Hz 4 3 2 1
Power supply 2W
12.5V DC wieland
1 2 3 4 RM-PS B
+ + - - 83.020.0401.1
1 2 3 4
1 = X1 terminal strip for connection of the operating voltage
(see „terminal assignment" for details)
2 = X2 Terminal strip for connection of the output voltage
(see „terminal assignment" for details)
Technical data
Operating voltage (connection X1) 230 V AC +6% / −10%; 50/60Hz
Output (connection X2)
– Voltage 12.5 V DC SELV
– Nominal current 160 mA
– Nominal rating 2 W
Connection modes (X1 and X2) Screw terminals
0.14...4 mm² single wire
0.14...2.5 mm² finely stranded conductor
Respective insulation length 6.5 mm
Class of enclosure not applicable
Degree of protection IP 00
Degree of contamination 2
Overvoltage category III
Area of application for fixed installation in indoor and dry rooms
©2005 Wieland Eletric GmbH. All rights reserved. The Wieland Electric GmbH reserves
the right to make modifications and changes in the interest of technical progress. Third
party-products will always be mentioned without reference to patent rights. As a conse-
Document BA000307 (Installation instructions
gesis
Hotline:
Tel.: +49 (951) 9324-996
Fax: +49 (951) 9326-996
Email: BIT.TS@wieland-electric.com
Internet: www.gesis.com
CAUTION
housing from Wieland Electric.
NOTE
—Art.-Nr. 83.020.0401.1)
gesis RM-PS B
Wieland Electric GmbH
Brennerstraße 10-14
96052 Bamberg, Germany
Tel.: +49 (951) 9324-0
Fax: +49 (951) 9324-198
Internet: www.wieland-electric.com
Email: info@wieland-electric.com
D. Terminal assignment
X1 (Connection and further transmission of the operating voltage)
Terminals 1/2 and 3/4 are bridged internally
1 = Operating voltage 230 V AC N
2 = Operating voltage 230 V AC N
3 = Operating voltage 230 V AC L
4 = Operating voltage 230 V AC L
X2 (Connection and further transmission of the output voltage)
Terminals 1/2 and 3/4 are bridged internally
1 = Output voltage 12,5V DC SELV +
2 = Output voltage 12,5V DC SELV +
3 = Output voltage 12,5V DC SELV −
4 = Output voltage 12,5V DC SELV −
E. Module exchangement
1. Make sure that the module is not under voltage.
2. Remove the ribbon cable from the front of the unit.
3. Slacken off the connections on the terminal strip.
4. Loosen the knurled screws in the gesis RAN housing (see figure below)
1
2
5. Move the slide as shown towards the modules
(„1": slide closed, modules arrested; „2": slide open, modules released)
Note: Opening the slide unlocks all modules!
6. Exchange the respective module
7 . Lock the modules again by proceeding in reverse order as described by steps 1 to 5.
F. Faulty units
The units must not be opened and in the case of failure are to be returned to:
Wieland Electric GmbH
Department TQM 3
Brennerstraße 10-14
D-96052 Bamberg, Germany
Temperature ranges
−5°C...+45°C
– Working ambient
– Storage −25°C...+70°C
Relative air humidity 5% - 93%
Moisture condensation not permissible
Housing material Plastic, free of halogen
Housing colour black
Fire resistance V2 in accordance with UL (housing)
Weight approx. 240 g
Dimensions see device drawing
CE symbol in accordance with e.m.c directives (residential and
specific purpose buildings). Low voltage directives
Installation on carrier rail TH 35
quence, the existence of such rights cannot be excluded. Modifications and changes of
any kind to Wieland Electric products in respect of both hard and software excludes any
liability on the part of Wieland Electric GmbH.
