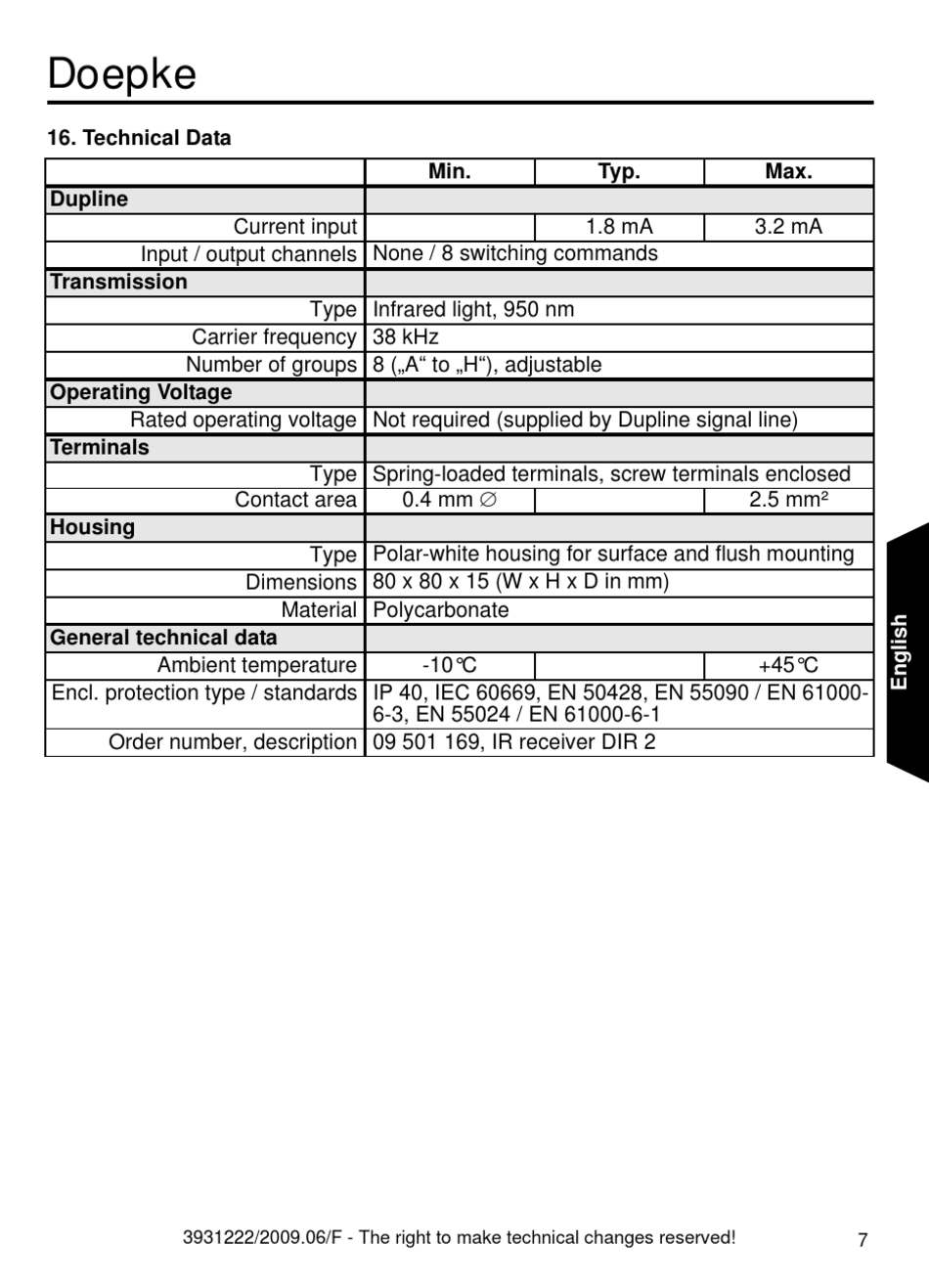

16. Technical Data

Dupline
Input / output channels None / 8 switching commands
Transmission
Carrier frequency 38 kHz
Number of groups 8 („A" to „H"), adjustable
Operating Voltage
Rated operating voltage Not required (supplied by Dupline signal line)
Terminals
Housing
General technical data
Ambient temperature
Encl. protection type / standards IP 40, IEC 60669, EN 50428, EN 55090 / EN 61000-
Order number, description 09 501 169, IR receiver DIR 2
3931222/2009.06/F - The right to make technical changes reserved!
Current input
Type Infrared light, 950 nm
Type Spring-loaded terminals, screw terminals enclosed
0.4 mm 
Contact area
Type Polar-white housing for surface and flush mounting
Dimensions 80 x 80 x 15 (W x H x D in mm)
Material Polycarbonate
6-3, EN 55024 / EN 61000-6-1
Min. Typ.
1.8 mA
-10°C
Max.
3.2 mA
2.5 mm²
+45°C
7
