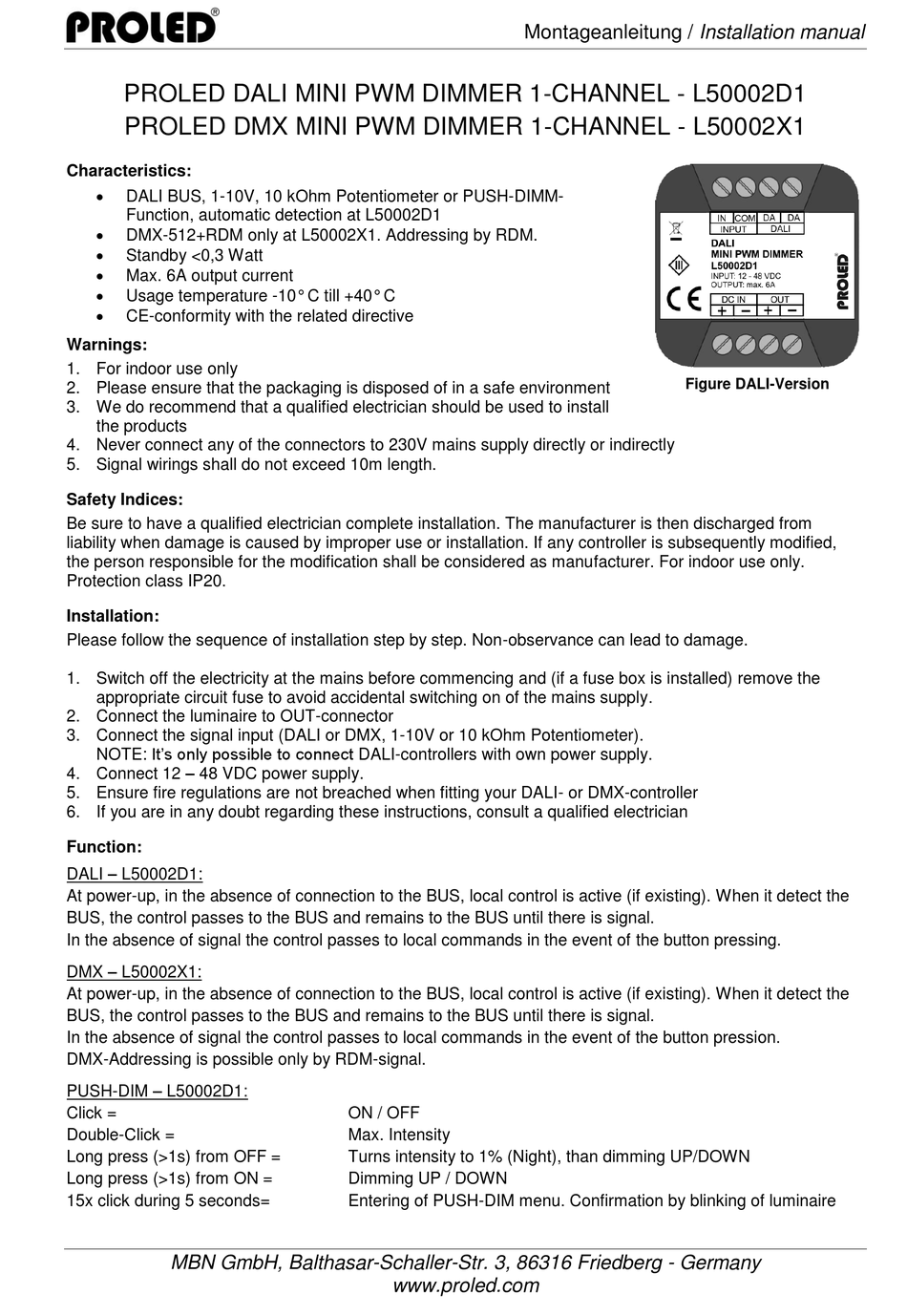

PROLED DALI MINI PWM DIMMER 1-CHANNEL - L50002D1
PROLED DMX MINI PWM DIMMER 1-CHANNEL - L50002X1
Characteristics:
DALI BUS, 1-10V, 10 kOhm Potentiometer or PUSH-DIMM-
Function, automatic detection at L50002D1
DMX-512+RDM only at L50002X1. Addressing by RDM.
Standby <0,3 Watt
Max. 6A output current
Usage temperature -10° C till +40° C
CE-conformity with the related directive
Warnings:
1. For indoor use only
2. Please ensure that the packaging is disposed of in a safe environment
3. We do recommend that a qualified electrician should be used to install
the products
4. Never connect any of the connectors to 230V mains supply directly or indirectly
5. Signal wirings shall do not exceed 10m length.
Safety Indices:
Be sure to have a qualified electrician complete installation. The manufacturer is then discharged from
liability when damage is caused by improper use or installation. If any controller is subsequently modified,
the person responsible for the modification shall be considered as manufacturer. For indoor use only.
Protection class IP20.
Installation:
Please follow the sequence of installation step by step. Non-observance can lead to damage.
1. Switch off the electricity at the mains before commencing and (if a fuse box is installed) remove the
appropriate circuit fuse to avoid accidental switching on of the mains supply.
2. Connect the luminaire to OUT-connector
3. Connect the signal input (DALI or DMX, 1-10V or 10 kOhm Potentiometer).
NOTE: It's only possible to connect DALI-controllers with own power supply.
4. Connect 12 – 48 VDC power supply.
5. Ensure fire regulations are not breached when fitting your DALI- or DMX-controller
6. If you are in any doubt regarding these instructions, consult a qualified electrician
Function:
DALI – L50002D1:
At power-up, in the absence of connection to the BUS, local control is active (if existing). When it detect the
BUS, the control passes to the BUS and remains to the BUS until there is signal.
In the absence of signal the control passes to local commands in the event of the button pressing.
DMX – L50002X1:
At power-up, in the absence of connection to the BUS, local control is active (if existing). When it detect the
BUS, the control passes to the BUS and remains to the BUS until there is signal.
In the absence of signal the control passes to local commands in the event of the button pression.
DMX-Addressing is possible only by RDM-signal.
PUSH-DIM – L50002D1:
Click =
Double-Click =
Long press (>1s) from OFF =
Long press (>1s) from ON =
15x click during 5 seconds=
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
ON / OFF
Max. Intensity
Turns intensity to 1% (Night), than dimming UP/DOWN
Dimming UP / DOWN
Entering of PUSH-DIM menu. Confirmation by blinking of luminaire
www.proled.com
Montageanleitung / Installation manual
Figure DALI-Version
