AXIS D2110-VE Security Radar

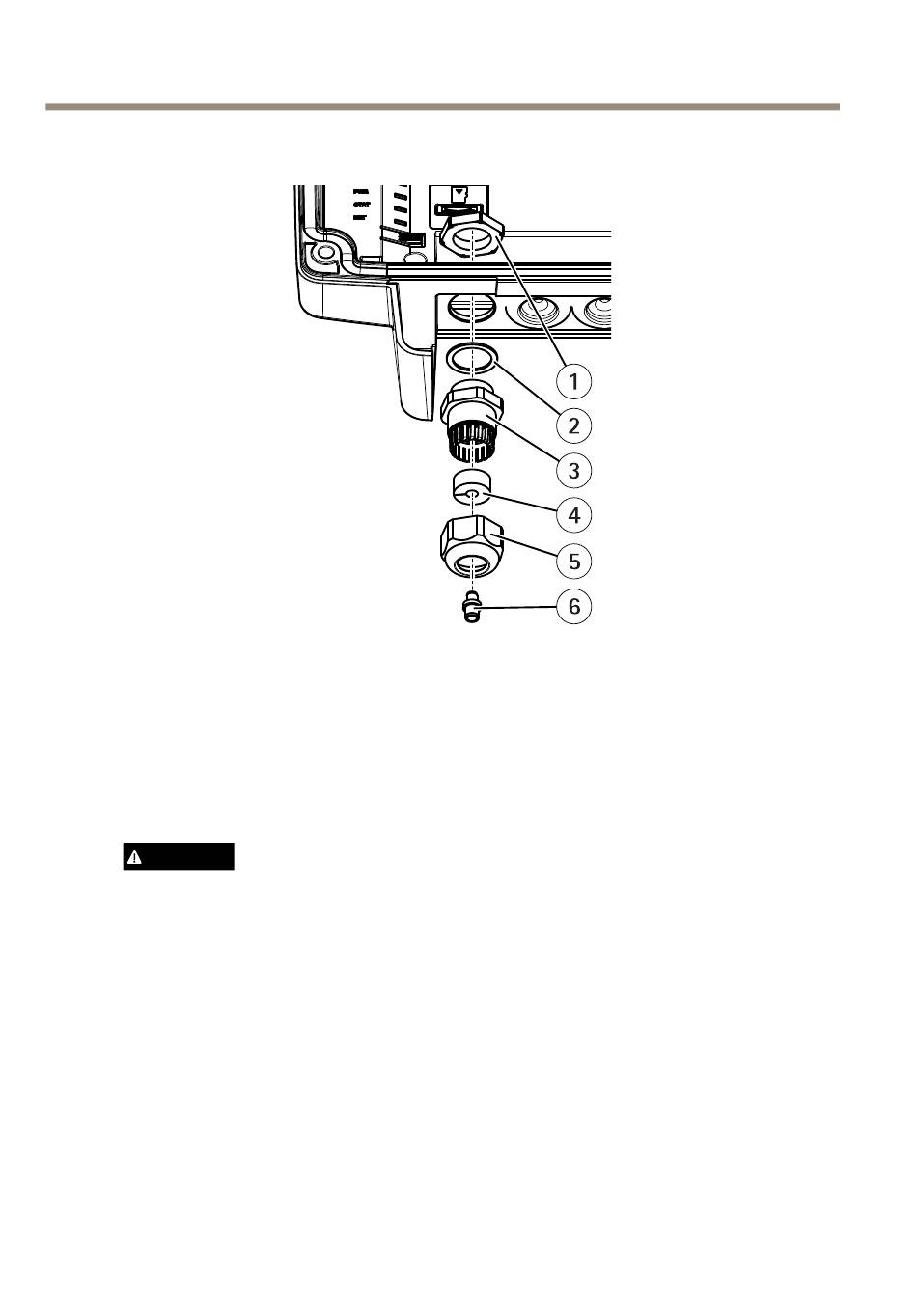

• Use a cable with a diameter of 5–6 mm (0.2–0.24 in).
1 Nut
2
Gasket
3
Body
4
Seal
5
Cap
6
Plug (discard)
16. Ground the radar:
WARNING
• Use a grounding cable with 1.5–4 mm
• The strain relief is designed for cables with a diameter of 8.5–9.5 mm (0.33–0.37
in). To use strain relief on smaller cable diameters, use the supplied cable gland
with strain relief.
16.1 Remove the screw and the cover.
16.2 Connect the external equipment to the relay connector.
16.3 Remove the grounding screw.
16.4 Attach the ground cable to the cable shoe using cable shoe pliers.
16.5 Fasten the washer and cable shoe with the screw.
16.6 To control external electrical equipment from the radar, connect cables to
the radar's relay.
16.7 Fasten the cable with the strain relief.
2
cross section (AWG 16–11).
