1.2.

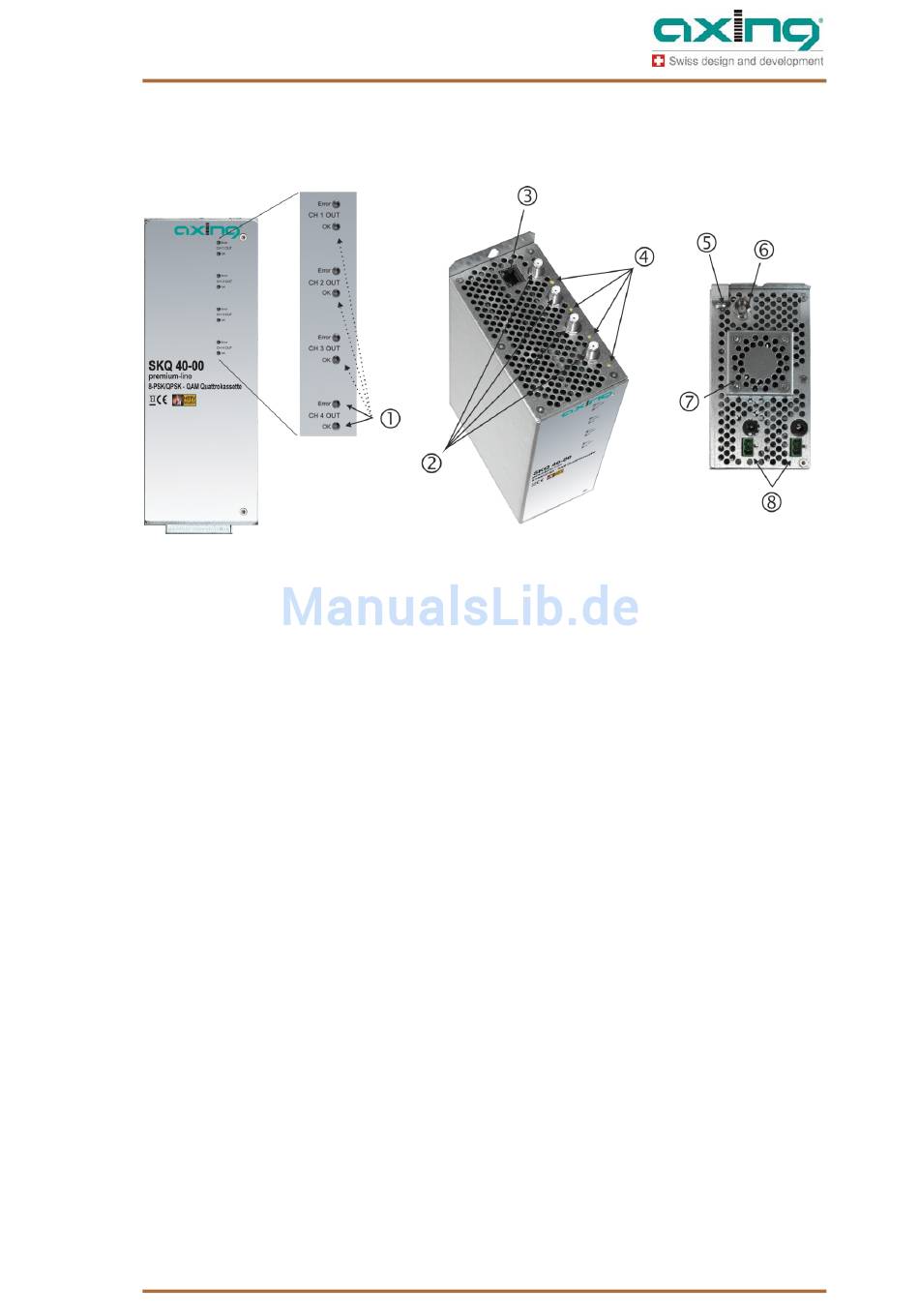

Display elements and connectors
1.2.1.
SKQ 40-00
1. 8 × MPEG data stream modulator LED indicators
Error (red) = Modulator stream too large (fill level >95%)
OK (green) = Fill level O.K.
2. 4 × HF input
3. RJ-45 Ethernet port
4. 4 × HF input LED indicator:
Orange = MPEG data stream present,
Off = MPEG data stream not present
5. Grounding screw
6. 1 x HF output
7. Fan
8. 2 × DC input/output
2015-06-07 | © AXING AG Switzerland | We assume no liability for design changes, type changes, errors and misprints
5
