QUICKSTART GUIDE
This quickstart guide contains installation and user instructions for the XRP2 Panel Reader with Large or Small antenna.
For further information, see the
supplied, and from www.tru-test.com

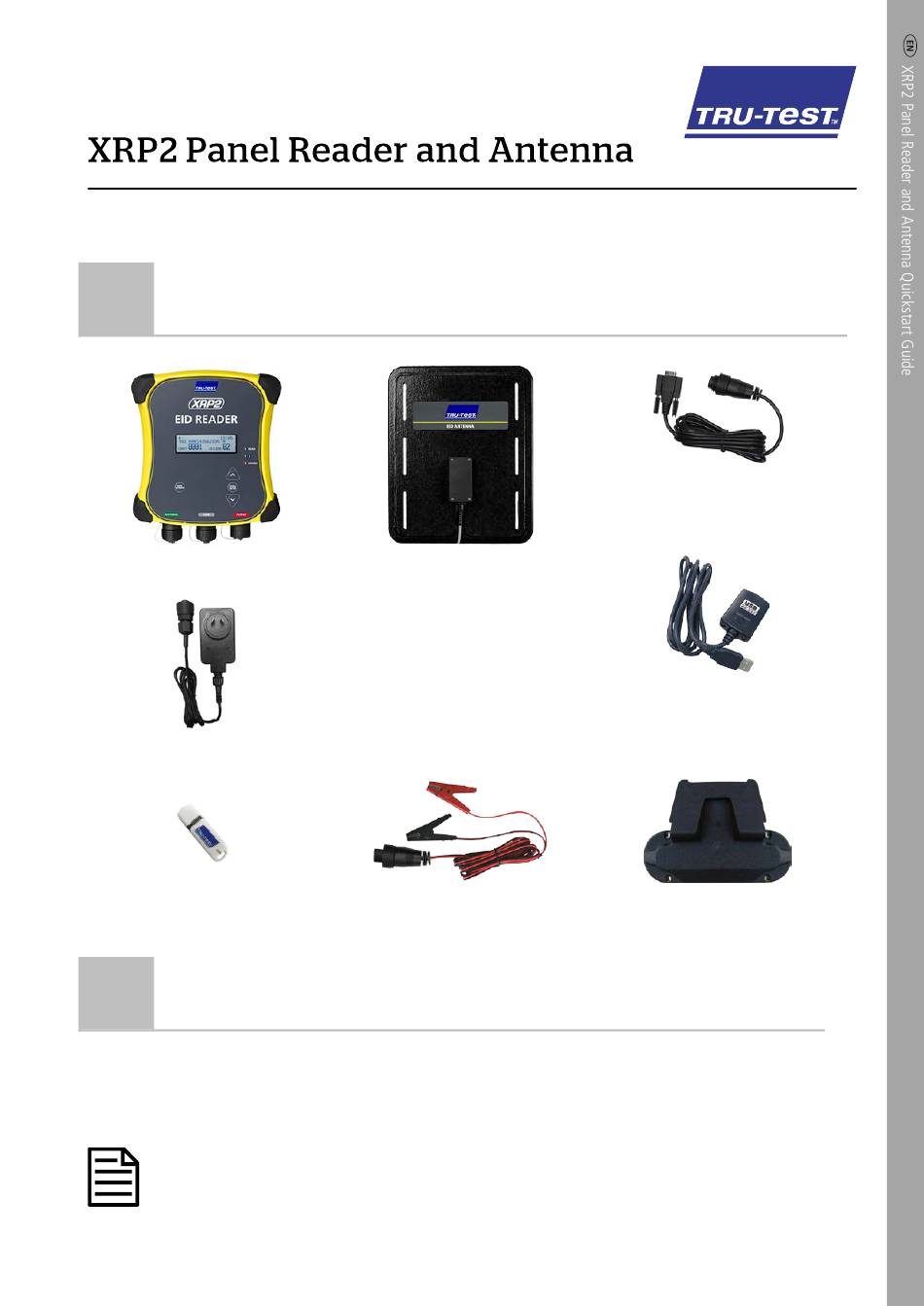

Unpacking the box
1
Check that you have all of the following items. If anything is missing, contact your supplier.
XRP2 panel reader
(the panel reader)
Mains power adaptor
(differs depending on region)
USB flash drive
Contains Data Link for PC software
and reference information
Connecting the panel reader to a power source
2
The panel reader can be powered by a 12 V battery, using the battery leads supplied. The panel reader operates well
from a 12 V automotive battery, however a marine battery is less prone to permanent damage if the battery is not
charged at least every few days. Connect the red clip to the positive terminal (+) on the battery and the black clip to the
negative terminal (-).
Alternatively, the panel reader may be powered by mains power using the mains power adaptor supplied.
The panel reader does not have an on/off switch. It switches on automatically when a power source is
applied. The Power LED (red) illuminates to show that the panel reader is on.
If the Power LED (red) is flashing, this indicates that the battery voltage is too low.
XRP2 Panel Reader and Antenna User Manual
Large or Small antenna
(may be supplied separately)
The 5 m extension lead supplied may
be used to connect the antenna to the
reader (optional).
Battery leads
, available on the USB flash drive
Panel Reader-Serial cable
Connects the panel reader to a Tru-
Test weigh scale indicator (an
indicator)
Serial-USB adaptor cable
Together with Panel Reader-Serial
cable, provides connection to a PC
Mounting bracket
